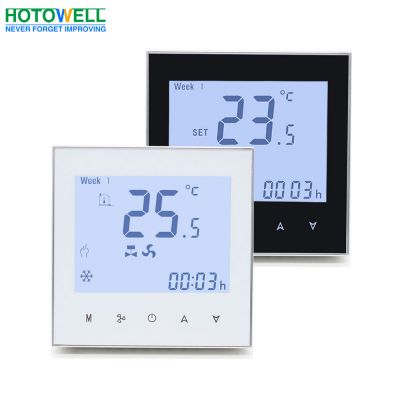

white wifi fan coil unit modulating thermostat
HTW-WF01-FC series Smart Wifi fan coil thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.
Smart Touch Screen 0-10V Modulating Fan-coil Thermostat with Modubus RS485 RTU
>> General
HTW-WF01-FC series FCU room thermostat is widely used in Fan Coil Unit system Which to control fans and motorized zone valves of heating/cooling central air-conditioning, it main include 2 pipe system and 4 pipe system applications. There are availble options includes Wifi, Modbus or keycard, external sensor etc.
>> Typical Wiring
>> Specification
>> Installation
n Make sure the power is OFF! Try turning ON your heating/cooling system by changing the temperature. If you can’t get the system to turn ON in 5 minutes, you’ll know the power is OFF.
n Take off the installation faceplate by rotating and gently pulling, then connect voltage supply/load output/external sensor(if with) wires respectively to appropriate terminals.
n Fix the installation plate onto the electric junction box with screws packed in the box.
n Fasten the thermostat display part and the installation faceplate through the groove.(Installation process completed)
>> Display & Dimensions
>> FAQ
