Hotel Room System Air Conditioner Energy Saver For HVAC System

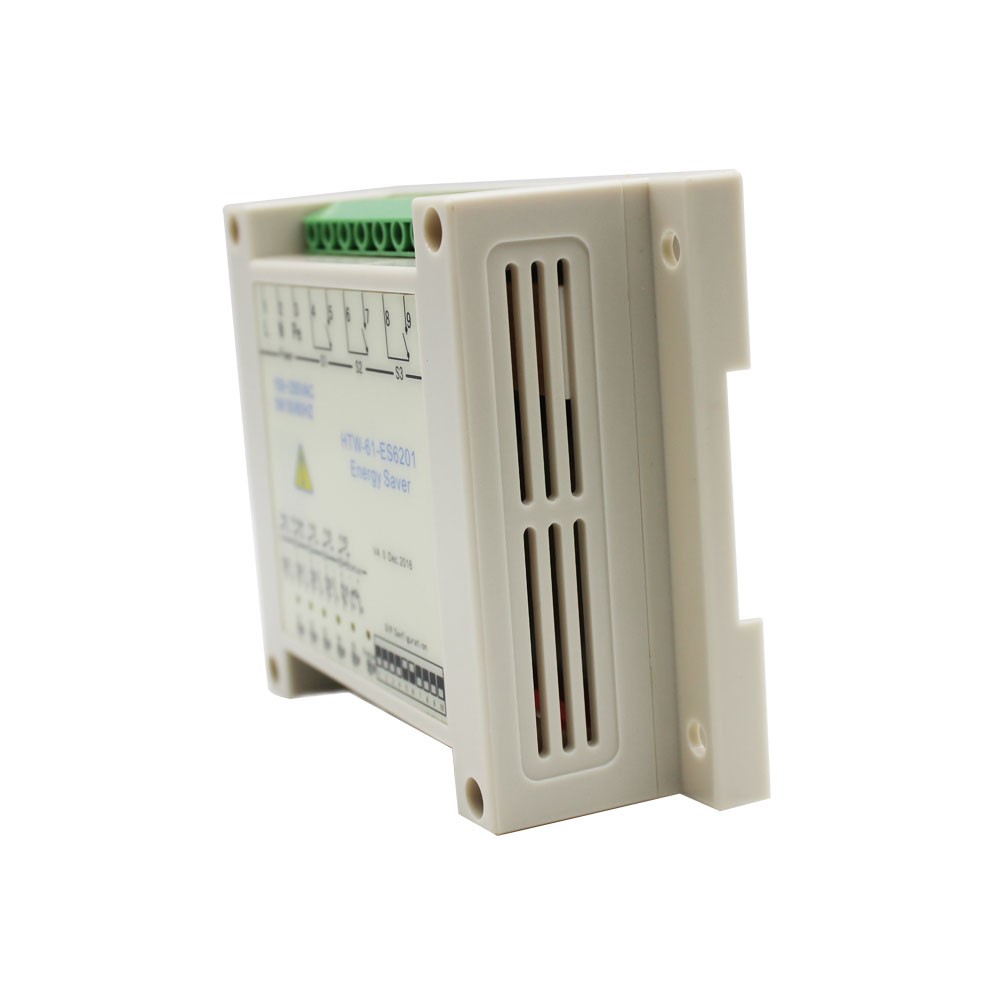

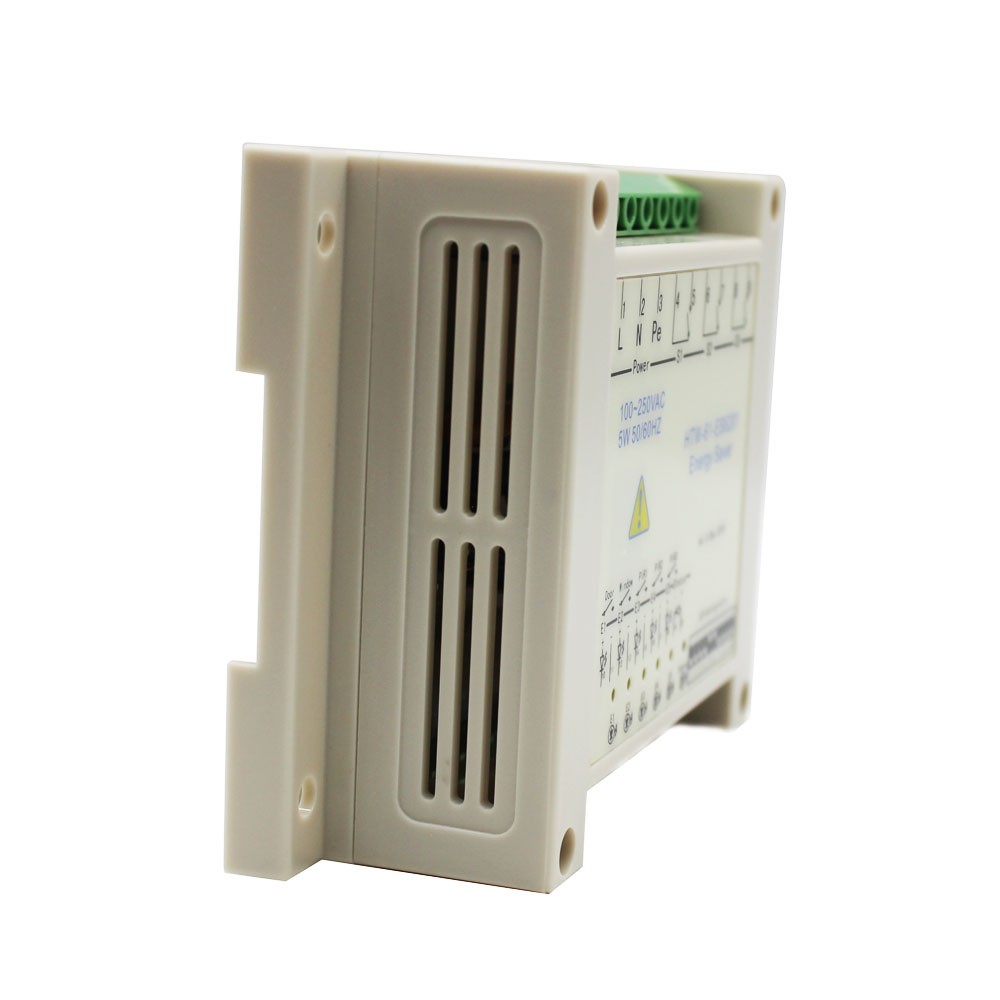

HTW-61-ES6201 PIR motion detector module energy saver is designed and produced by our company Hotowell, which is designed to control electrical consumption by detecting occupied/unoccupied presence, in order to connect/disconnect the air conditioning equipment and lighting automatically when the customer accesses or leaves the room.
>> General
HTW-61-ES6201 PIR motion detector module energy saver is designed and produced by our company Hotowell, which is designed to control electrical consumption by detecting occupied/unoccupied presence, in order to connect/disconnect the air conditioning equipment and lighting automatically when the customer accesses or leaves the room.
>> PIR presence detector operating algorithm

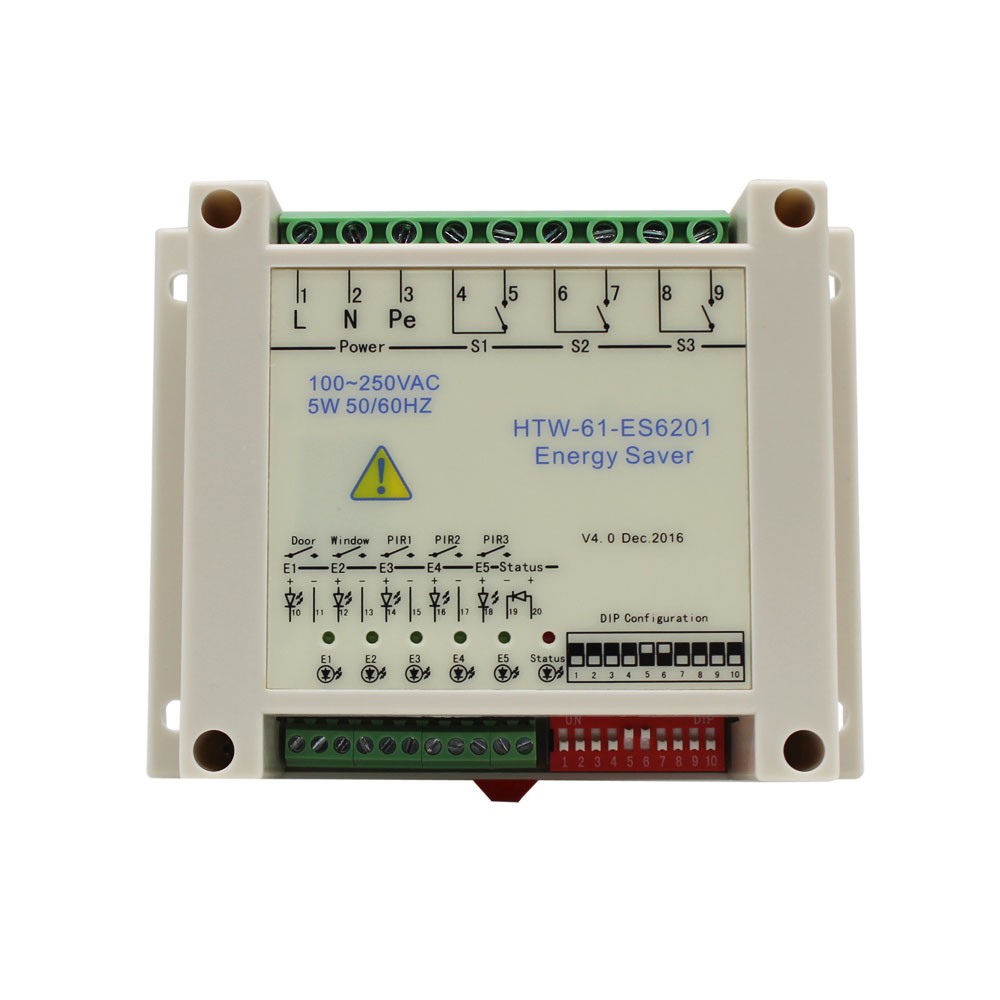

HTW-61-ES6201 has 1 input (E1) for a magnetic room contact placed on the doorframes of the room;
1 input (E2) for a magnetic window contact placed on the window frames.
3 inputs(E3,E4,E5) for PIR presence detectors.
When the door of the room is open, the energy saving system is activated instantly, and feed the following three outputs:
S1-Air-conditioning output with anti-humidity mode;
S2-Air-conditioning/Lighting output with delay time;
S3-Lighting output with delay time;
Once the door is closed, the system will try to determine if there is movement within 3s~T4 in the room
If during this time, any of the PIR presence detectors indicates movement, the system will assume that there is presence in the room, then it will operate as an "Occupied" mode maintaining activate S1, S2 and S3 circuit. If no movement is system initiates the programmed delay time and disconnect the various outputs.
>> Window Contact Algorithm
If a magnetic window contact switch is connected to the terminals 12-13, when the contact is open, the output S1 will disconnect after 1min, until closing window contact again.

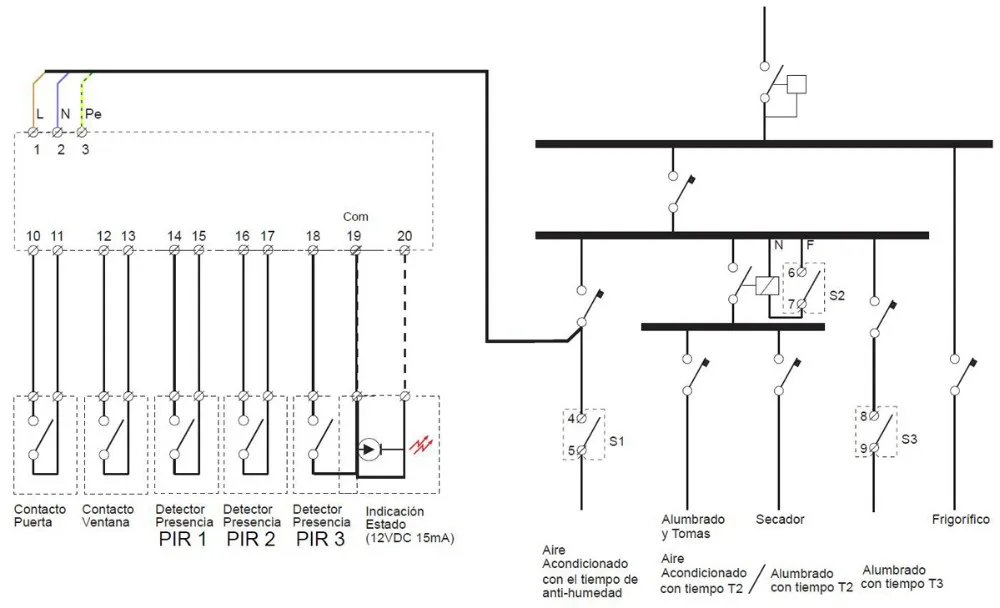

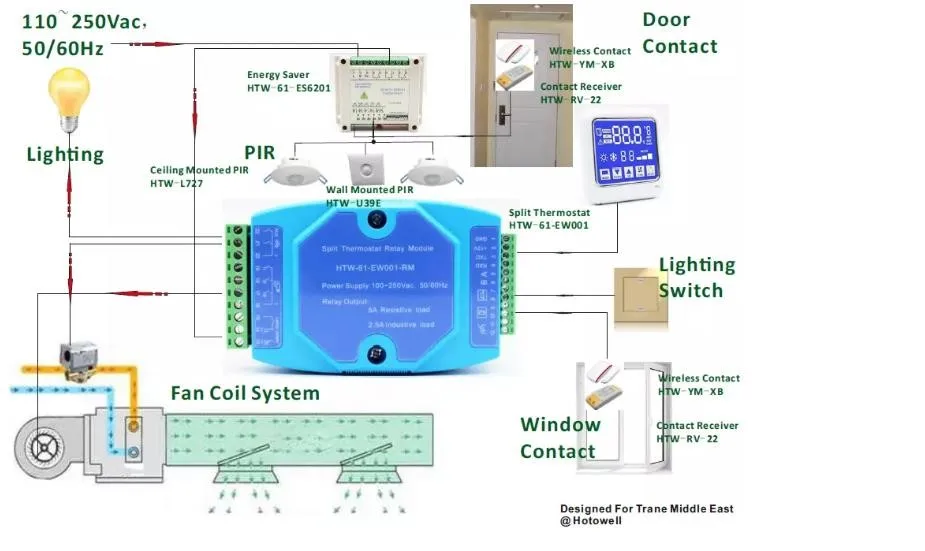

>> Typical Wiring Diagram
Hotowell is a high-tech company with rich experiences in product design and manufacturing, knowledge about global HVAC standards, and highly-trained team. Our objective is to produce and design user-friendly HVAC products on the highest technical level for improving people's experience in temperature/environment comfort.
Hotowell has been cooperating with many international companies and HVAC projects through Europe, American, Asia, Oceania. Our product range contains:
Thermostats, Motorized Zone Valves, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc. covering industrial, commercial and residential temperature controls.
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
