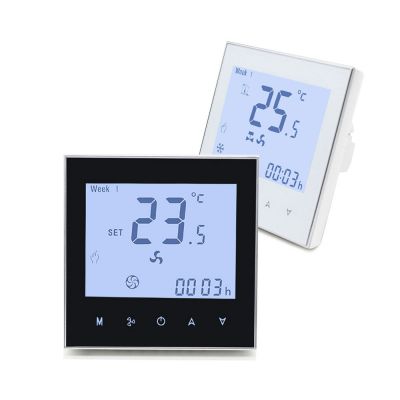

Hotowell Electronic digital AC thermostat for Fan Coil with instruction manual

Hotowell Electronic digital AC thermostat for Fan Coil with instruction manual

Product ID : HTW-WF11-FC

Product Tags : Fan coil thermostat Room thermostat Temperature thermostat air conditioner thermostat hotel thermostat

Product Attributes :

HTW-WF11-FC series Smart Wifi fan coil thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

Product Description

Hotowell Electronic digital AC thermostat for Fan Coil with instruction manual

>> General

Factory Customized OEM/ODM Tuya WiFi Intelligent Thermostat Remote modbus Control FCU Thermostat HTW-WF01-FC series

>> Ordering Guide

HTW-WF11-FC-**	-2	2 pipe(tube) system
FCU Room Thermostat	-4	4 pipe(tube) system
	-M	0~10V Modulating Valve Output
	-N	RS485 Modbus RTU communication
	-K	Key Card occupancy input
	-W	WiFi Connection
	-T	Real Time Clock
	-P	Programmable
	-E	External Temperature Sensor
	-24v	Power Supply with 24Vac
e.g. HTW-WF11-FC-2KP refers to application: 2 pipe(tube) system, 3 fan speed + 1 H/C valve, with key card and weekly programmable

>>Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons

 >> Application
