2 Way Modulating Hydraulic Control Actuator Valve With Dn15~Dn32 Selectable
2 Way Modulating Hydraulic Control Actuator Valve With Dn15~Dn32 Selectable 2 Way Modulating Hydraulic Control Actuator Valve With Dn15~Dn32 Selectable 2 Way Modulating Hydraulic Control Actuator Valve With Dn15~Dn32 Selectable 2 Way Modulating Hydraulic Control Actuator Valve With Dn15~Dn32 Selectable 2 Way Modulating Hydraulic Control Actuator Valve With Dn15~Dn32 Selectable

2 Way Modulating Hydraulic Control Actuator Valve With Dn15~Dn32 Selectable

Product ID : HTW-MV13
Product Tags :
Product Attributes :

Modulating Motorized Valve

- 2 way 0-10V modulating valve

-Rated Voltage 24V AC 2.5VA

- Frequency: 50/60Hz

-DN size: DN15~DN32 or 1/2"~1.1/4"

Product Description



>>General

HTW-MV13 series Motorized Modulating Control Valve are mainly used in central air- conditioning cool/heat water system. It can accurately control the flow of cool/heat medium according to the actual requirement, and will not result in sudden change of temperature and to control the room temperature accurately. It provides two types: 2-way and 3-way with sizes: 1/2", 3/4", 1" and 1.1/4'' optional.


Screw Thread default provided with BSP(G),
Specific NPSC(N), SWEAT(S), INVERTED FLARE(I), etc. can be customized.

>> Technical parameters
• High precision and sensitivity of temperature control;
• 24Vac, 50/60Hz;
• Timing protection device (for 24V working power supply, it can be assembled for optional), to ensure motor reliable and durable life;
• Built-in electronic card (24V working power supply only) can receive 0~10V (input impedance: 200KΩ) or 4~20mA DC (input impedance: 500Ω) input control signal, and provide proportional control, and 0~10Vdc (1mA) feedback signal.
• The valve actuator and valve body is used tight lock connection. The actuator can be installed after the installation of valve body. It has flexible and convenient assembly.



>> Model Comparison Table

>> Valve Dimensions

>>Company Profile

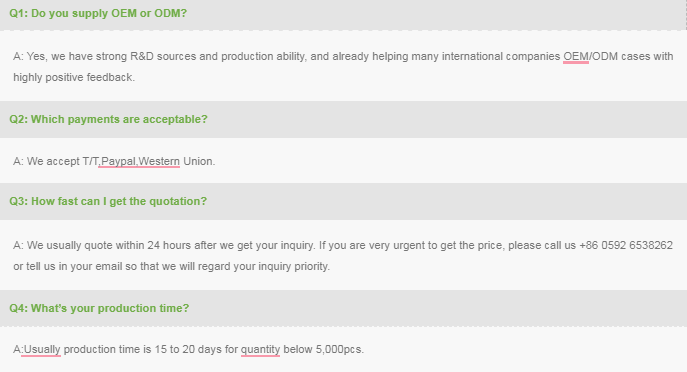

>>FAQs



Q1: Do you supply OEM or ODM?

A: Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.

Q2: Which payments are acceptable?

A: We accept T/T,Paypal,Western Union.

Q3: How fast can I get the quotation?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us +86 0592 6538262 or tell us in your email so that we will regard your inquiry priority.

Q4: What’s your production time?

A:Usually production time is 15 to 20 days for quantity below 5,000pcs.
