Home Products Hotowell Products Energy-Saving Wireless Heating Thermostat Smart Room Thermostat with High Accuracy
Energy-Saving Wireless Heating Thermostat Smart Room Thermostat with High Accuracy
Energy-Saving Wireless Heating Thermostat Smart Room Thermostat with High Accuracy Energy-Saving Wireless Heating Thermostat Smart Room Thermostat with High Accuracy Energy-Saving Wireless Heating Thermostat Smart Room Thermostat with High Accuracy Energy-Saving Wireless Heating Thermostat Smart Room Thermostat with High Accuracy Energy-Saving Wireless Heating Thermostat Smart Room Thermostat with High Accuracy

Energy-Saving Wireless Heating Thermostat Smart Room Thermostat with High Accuracy

Product ID : HTW-91-WT410
Product Attributes :

HTW-91-WT410 series thermostat is widely used in these environments like Homes, Residential buildings, Schools, Offices and etc. to main an ideal room temperature purpose. It can be used both in Heating and Cooling systems

Product Description
Energy-Saving Wireless Heating Thermostat Smart Room Thermostat with High Accuracy

>> General

HTW-91-WT410 series thermostat is widely used in these environments like Homes, Residential buildings, Schools, Offices and etc. to main an ideal room temperature purpose. It can be used both in Heating and Cooling systems, and typically could be integrated with the following equipment:
* Thermal Valves or Zone Valves
* Combi Boilers
* Gas or Oil Burners
* Fans
* Pumps

 >> Specification

Casing Material
ABS & Acrylic
LCD Backlight
80x55.8mm(3.15x2.20'')

Power Supply
Controlling Panel: 3V DC(2 x AA1.5 V)
Receiver:Line Voltage(110/220Vac +/- 10%, 50/60Hz)
Current Load
10A (Resistive)
Ambient Temp. Range
0~99.5℃


Set-point Range
5~45 ℃/41℉~113℉ (Comfort Mode)
5~45 ℃/41℉~113℉ (Energy Saving Mode)
5 ℃~15℃ /41℉ ~59℉ (Frost Protection)
Accuracy/Tolerance
+/-0.5℃
Timing Tolerance
<1%
NTC Thermistor
10KΩ@25 ℃
Storage Conditions Temperature
-10~60 ℃
Humidity
< 90% r.h.
Battery Life
12 months
RF Module
Semi-duplex Module
RF Frequency
433 Hz(Default) , 846 Hz(Optional)

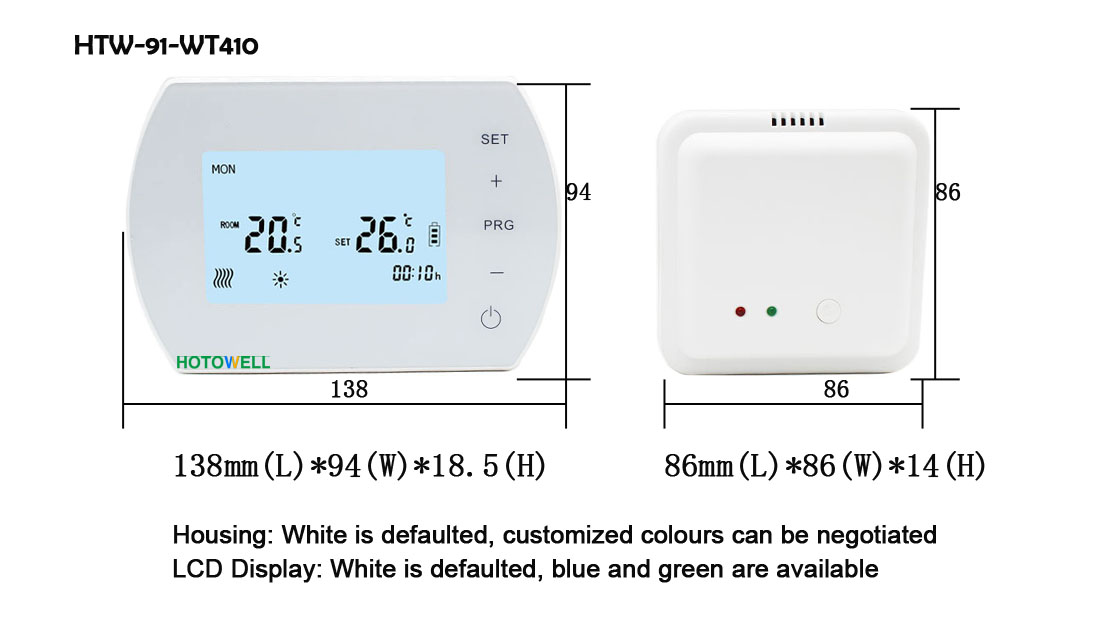

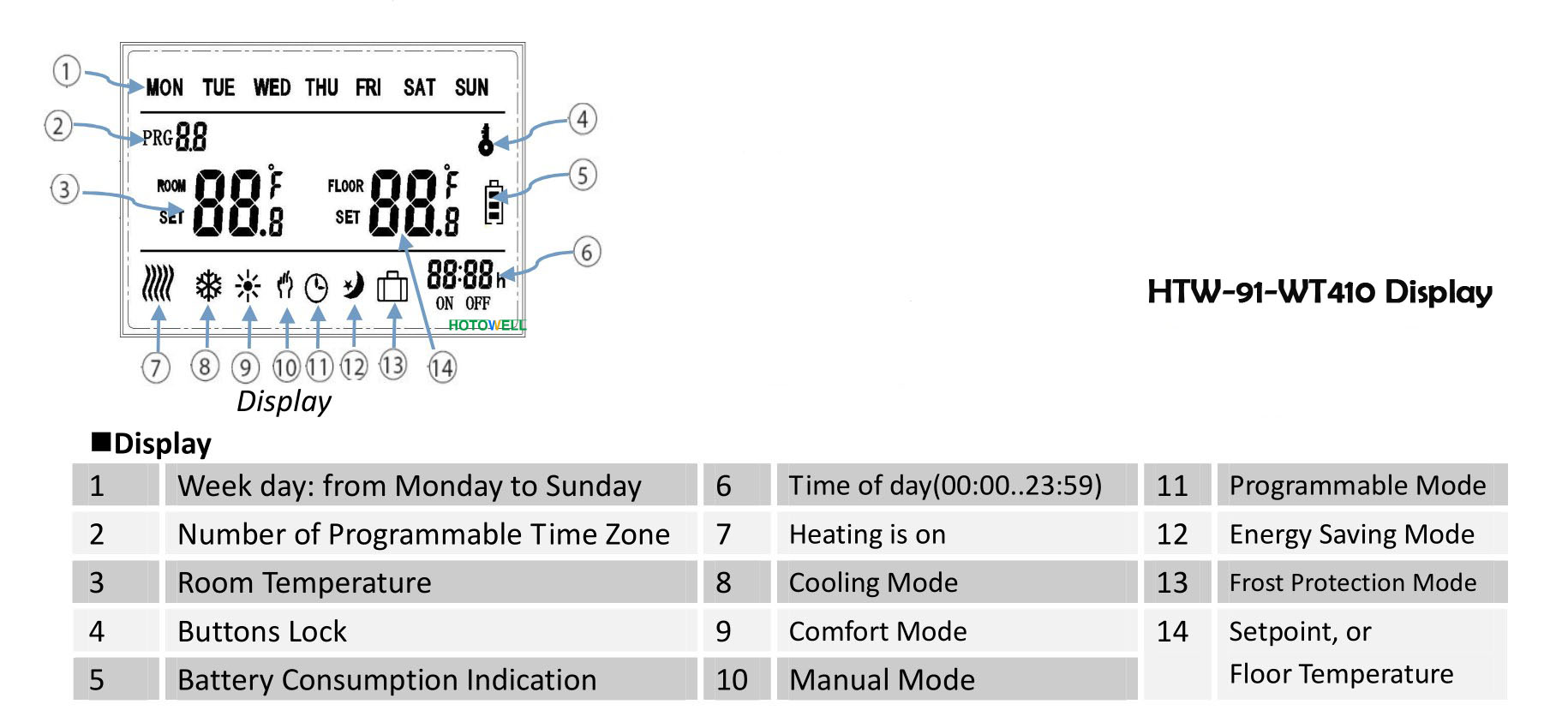

>> Dimension and Display

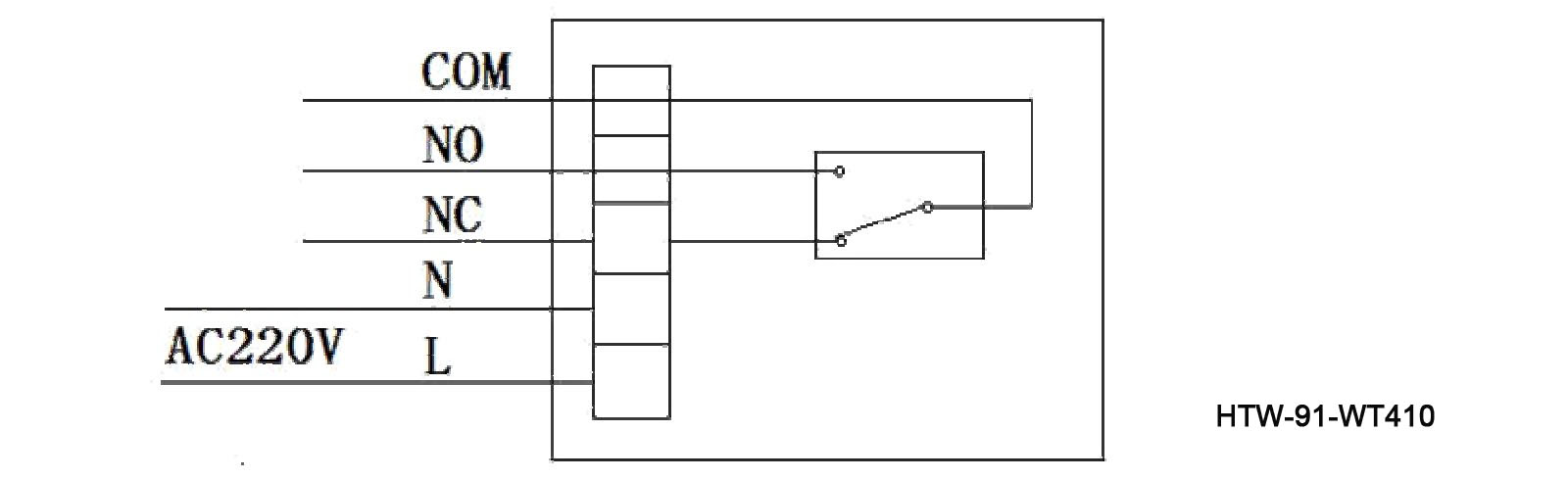

>> Operating Algorithm and Wiring diagram

Scope of Application

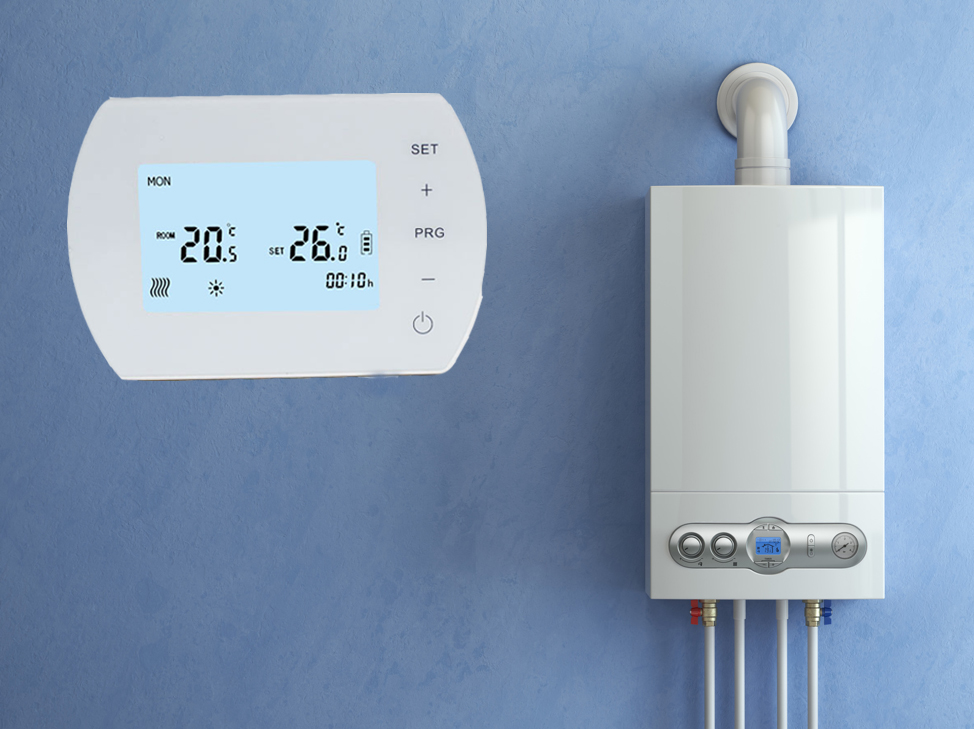

Wireless thermostat with a receiver, used for water / Gas Boiler.
