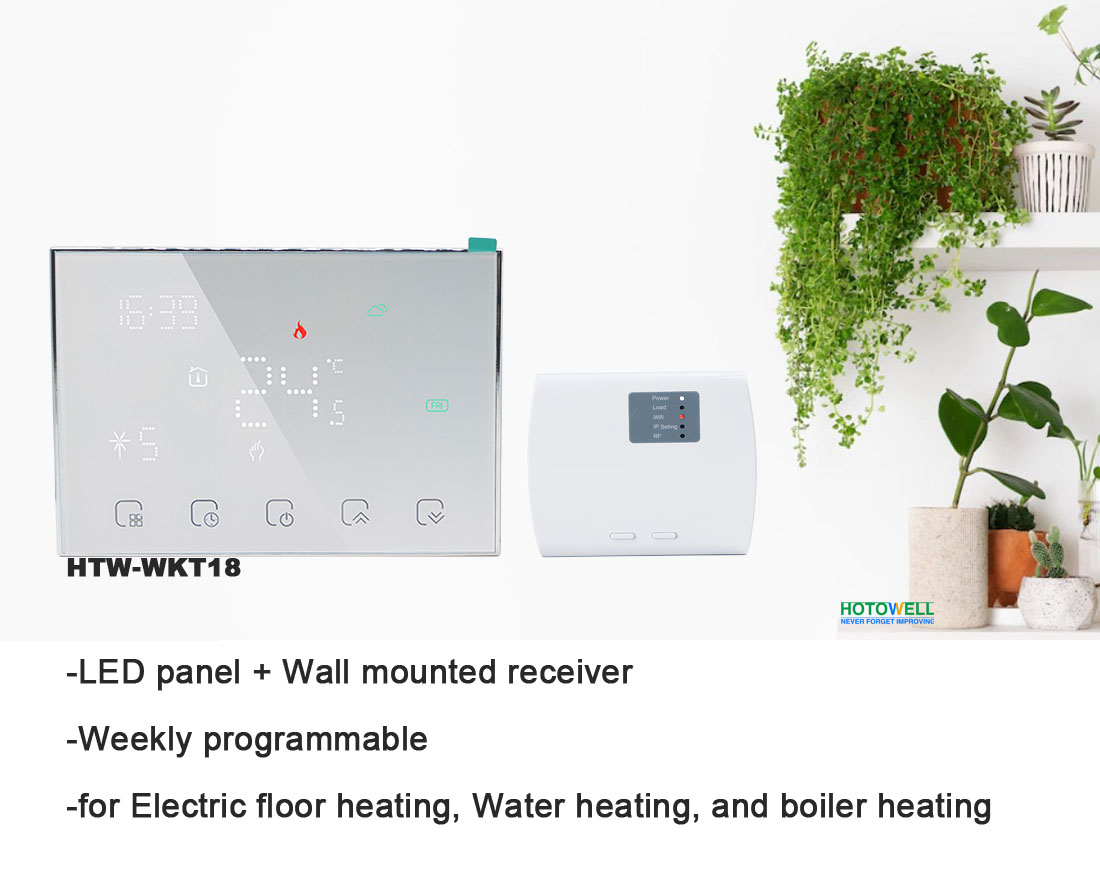

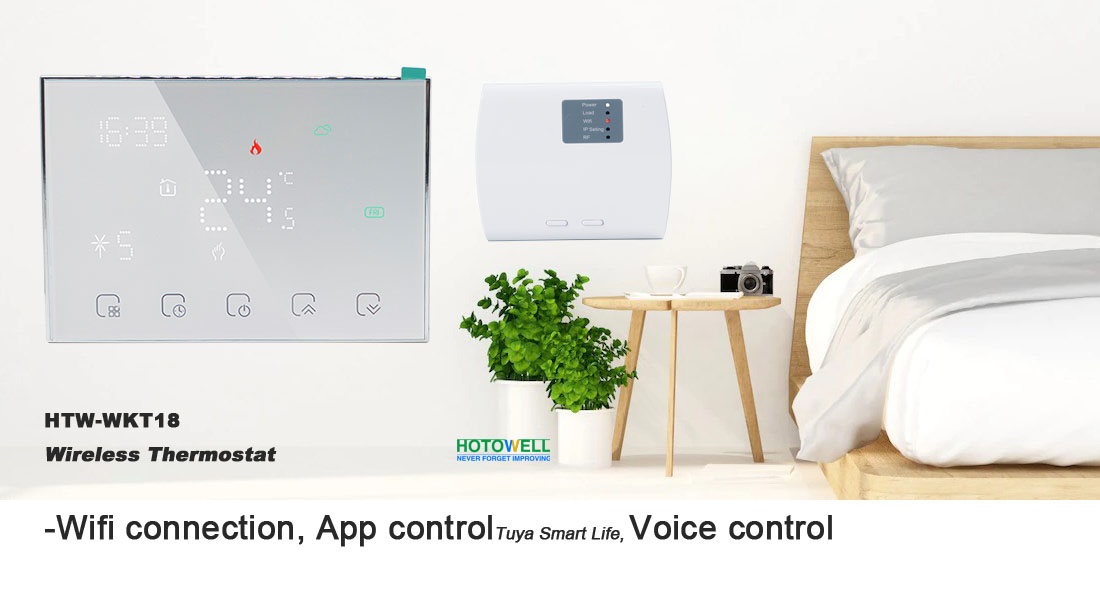

240Vac Receiver and LED Display Panel Wireless Heating Thermostat Smart Programmable Thermostat

240Vac Receiver and LED Display Panel Wireless Heating Thermostat Smart Programmable Thermostat

Product ID : HTW-WKT18

Product Tags : Heating Thermostat Room thermostat Wireless Thermostat smart thermostat

Product Attributes :

HTW-WKT18 is suitable for electric heating, water heating, wall-hung boilers and boiler temperature control systems. It can be used in smart homes, shopping malls and industrial sites.

Product Description

240Vac Receiver and LED Display Panel Wireless Heating Thermostat Smart Programmable Thermostat


>> General
HTW-WKT18 is suitable for electric heating, water heating, wall-hung boilers, and boiler temperature control systems. It can be used in smart homes, shopping malls, and industrial sites.

>> Display and Dimension

>> Features


>> Ordering Guide

HTW-WKT18- **
	Code	Application
	-3A	Water Heating, 3A, NC+NO+Com output terminals
	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals
	-NV	Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-WKT18-3A refers to application: Water Floor Heating, 3A, NC+NO+Com output terminals

>> Specifications

Receiver Power Supply	95～240 V AC，50～60 Hz	Receiver Current Load	5 A(water heating/waterboiler/gas boiler)；16 A（electric heating）
LED Panel power supply	2*AA battery/USB	Temperature control accuracy	0.5℃
Temp. Error	±1℃	Sensor	NTC3950,10K
Timing Error	<1%	Set Temp. Range	5～45℃
Working Ambient Temp/ Humidity	0～45℃，5～95% RH （Non Condensing）	Power consumption	<1.5W
LED Panel Material	PC+ABS（Fireproof）	Receiver Installation	Wall-mounted
Protection Class	IP20	Buttons	Capactive Touch Buttons
Screen	LED
