Colourful Backlight Underfloor Heating Thermostat Tuya Thermostat

Product ID : HTW-WF17

Product Tags : Heating Thermostat Wifi thermostat underfloor heating thermostat water heating thermostat

Product Attributes :

HTW-WF17 series thermostat has been developed to control electric underfloor heating systems, water heating or water/gas boilers.

Product Description

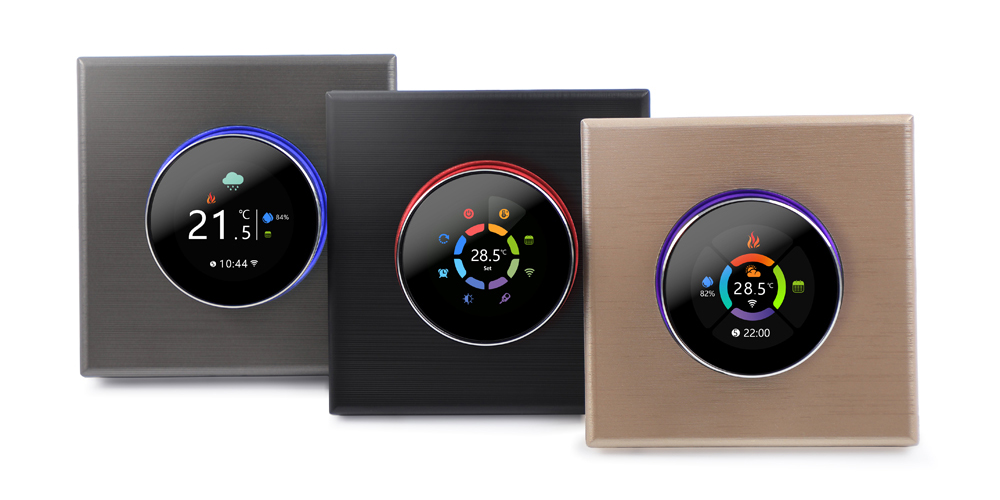

Colourful Backlight Underfloor Heating Thermostat Tuya Thermostat

HTW-WF17 series thermostat has been developed to control electric underfloor heating systems, water heating or water/gas boilers. These units are designed for use in commercial, industrial, civil, and domestic properties.

>> Ordering Guide

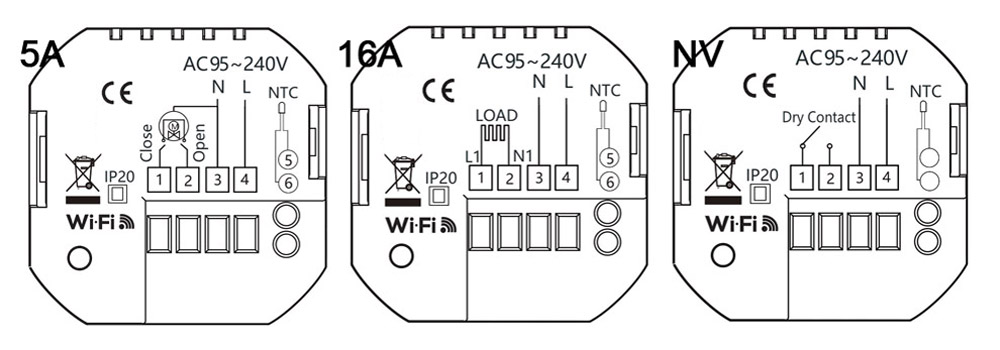

HTW-WF17- **
	Code	Application
	-3A	Water Heating, 5A, NC+NO+Com output terminals
	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals
	-NV	Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals

Back Light Color Adjustable Smart Home Tuya WiFi Housing Underfloor Heating Thermostat

Product Parameters

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	3A(-3A, -NV application)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	16A(-16A application)	Set-Point Range	5 ~ 35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
