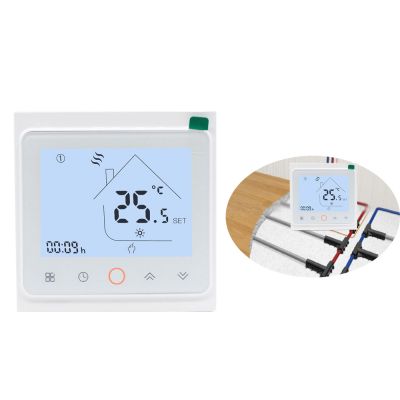

Smart Thermostat HVAC Thermostat Electric Underfloor Heating Thermostat with Optional Wifi Function

Product ID : HTW-WF11

Product Tags : Heating Thermostat Room thermostat smart thermostat

Product Attributes :

HTW-WF11 series thermostat can be used in Electric Underfloor Heating, Water Heating, or Water/Gas Boiler systems.

Product Description

Smart Thermostat HVAC Thermostat Electric Underfloor Heating Thermostat with Optional Wifi Function

>> General
HTW-WF11 series Wifi thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.

>> Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	3A(-3A, -NV application)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	16A(-16A application)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons

>> Ordering Guide

Please identify the thermostat according to your need or just contact us!
HTW-WF11-**	Code	Application
	-3A	Water Heating, 3A, NC+NO+Com output terminals
	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals
	-NV	Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-WF11-3A refers to application:Water Heating, 3A, NC+NO+Com output terminals
