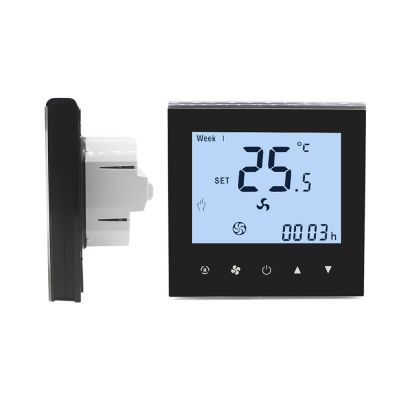

Programmable Thermostat ON/OFF or Modulating Type Smart Thermostat Home Thermostat

Product ID : HTW-WF11-FC

Product Tags : Fan coil thermostat Room thermostat smart thermostat

Product Attributes :

HTW-WF11-FC series smart fan coil thermostat is widely used to maintain an ideal room temperature purpose.

Product Description

Programmable Thermostat ON/OFF or Modulating Type Smart Thermostat Home Thermostat

>> General
HTW-WF11-FC series FCU room thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to maintain an ideal room temperature purpose.

>> Ordering Guide

HTW-WF11-FC-**	-2	2 pipe(tube) system
FCU Room Thermostat	-4	4 pipe(tube) system
	-M	0~10V Modulating Valve Output
	-N	RS485 Modbus RTU communication
	-K	Key Card occupancy input
	-W	WiFi Connection
	-T	Real Time Clock
	-P	Programmable
	-E	External Temperature Sensor
	-24v	Power Supply with 24Vac
e.g. HTW-WF11-FC-2KP refers to application: 2 pipe(tube) system, 3 fan speed + 1 H/C valve, with key card and weekly programmable

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
