Round Housing Smart Home Thermostat Fan Coil Thermostat with 24Vac or 240Vac Power Supply

Product ID : HTW-WF06-FC

Product Tags : Fan coil thermostat Room thermostat Wifi thermostat hotel thermostat smart thermostat

Product Attributes :

HTW-WF06-FC series Smart Wifi fan coil thermostat is widely used to maintain an ideal room temperature purpose

Product Description

Round Housing Smart Home Thermostat Fan Coil Thermostat with 24Vac or 240Vac Power Supply
>> General
HTW-WF06-FC series Smart Wifi fan coil thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to maintain an ideal room temperature purpose.


>> Ordering Guide

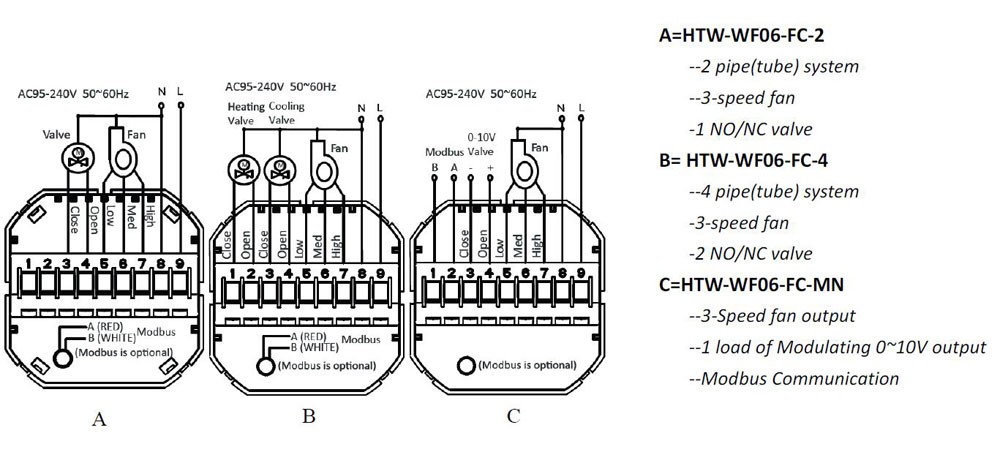

HTW-WF06-FC- **	-2	2 pipe(tube) system	-W	Window Card Input
Smart Fan Coil Thermostat	-4	4 pipe(tube) system	-T	Clock
	-M	Modulating output	-P	Weekly Programmable
	-N	Modbus RTU communication	-E	External Temp. Sensor
	-K	Key Card Occupancy Input	-24v	Power Supply with 24Vac
e.g. HTW-WF06-FC-2KP refers to application: 2 pipe(tube) system, 3 fan speed + 1 H/C valve, with key card and weekly programmable

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(-3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A -inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
