Wifi Thermostat Temperature Controller with Modbus Protocol Child Lock Function

Product ID : HTW-WF06-FC-4WN

Product Tags : Fan coil thermostat Room thermostat smart thermostat

Product Attributes :

HTW-WF06-FC series smart fan coil thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to maintain an ideal room temperature.

Product Description

Wifi Thermostat Temperature Controller with Modbus Protocol Child Lock Function

>> General

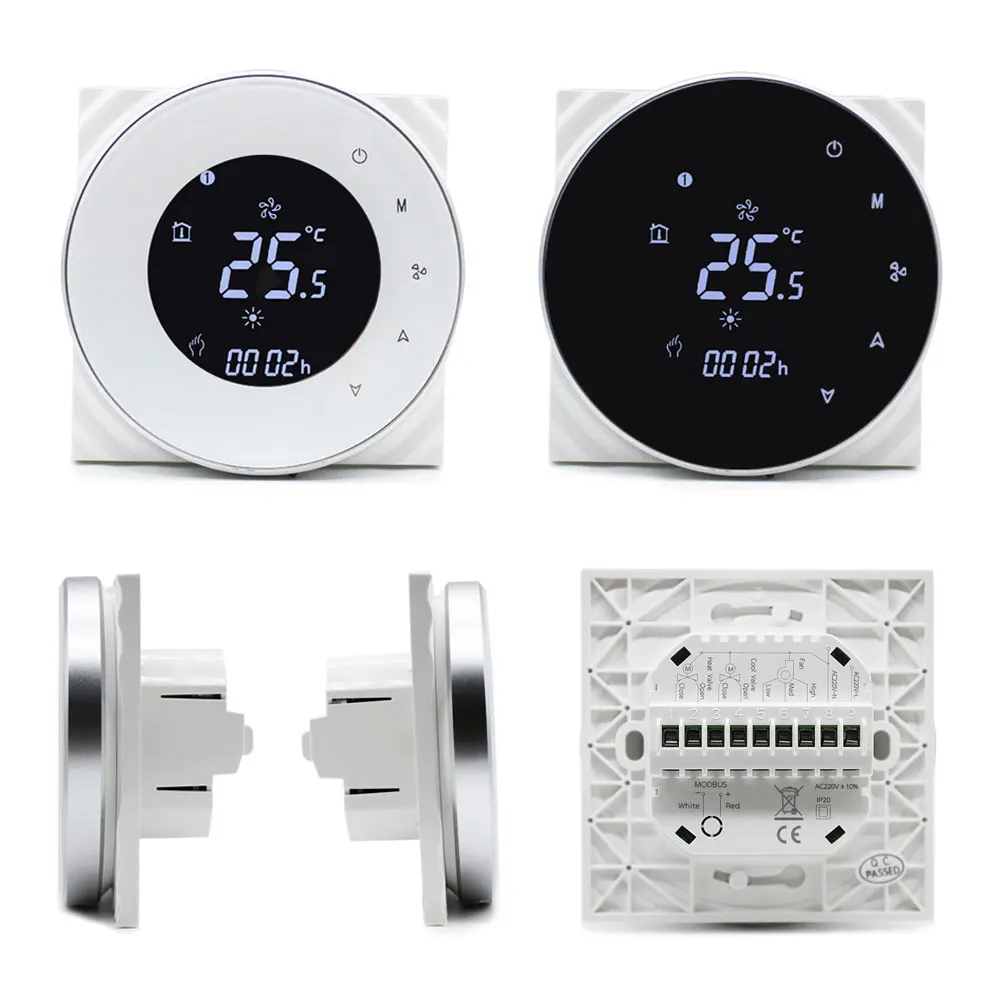

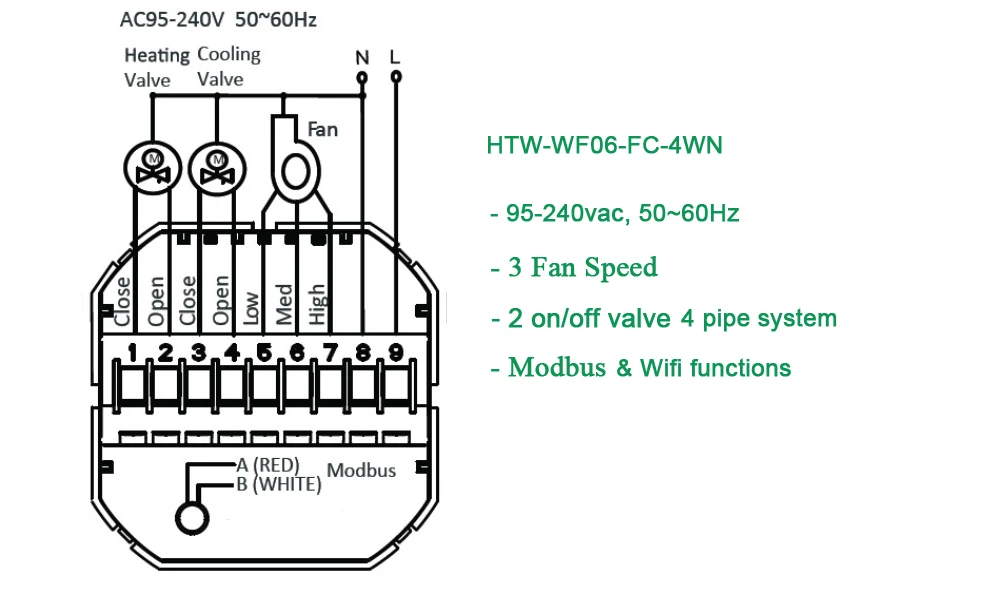

HTW-WF06-FC-4WN
HTW-WF06-FC series smart fan coil thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to maintain an ideal room temperature.

>> Ordering Guide

HTW-WF06- FC-**	-2	2 pipe(tube) system	-W	Wi-Fi
Smart Fan Coil Thermostat	-4	4 pipe(tube) system	-B	BACnet
	-M	Modulating output	-P	Programmable
	-N	Modbus RTU communication	-E	External Temperature Sensor
	-K	Key Card occupancy input	-24v	Power Supply with 24Vac
e.g. HTW-WF06-FC-4W24: refers to application: 3 fan speed, 4 pipe system, Wi-Fi, 24Vac

>> Specification

Power Supply	24Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A (3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A (1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5~99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm² or 1 x 2.5 mm²
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
