3A/16A Water and Electric Underfloor Heating with Wifi Remote Phone Control Intelligent Thermostat

Product ID : HTW-WF06

Product Tags : Heating Thermostat smart thermostat

Product Attributes :

HTW-WF06 series Wifi thermostat can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.

Product Description

3A/16A Water and Electric Underfloor Heating with Wifi Remote Phone Control Intelligent Thermostat

>> General
HTW-WF06 series Wifi thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	3A(-3A, -NV application)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	16A(-16A application)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons

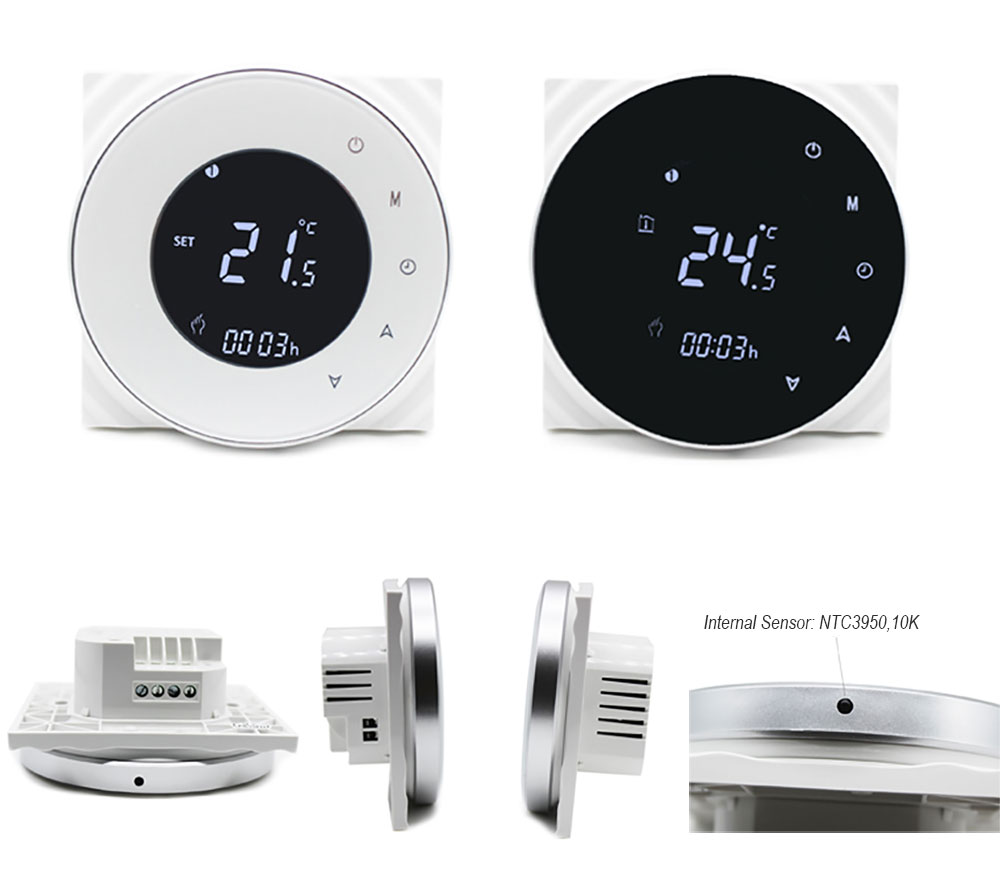

>> Dimension and Display

>> Details

>> Ordering Guide

HTW-WF06- **	Smart Wifi Thermostat
	Code	Application
	-3A	Water Heating, 3A, NC+NO+Com output terminals
	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals
	-NV	Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-WF06-3A refers to application:Water Heating, 3A, NC+NO+Com output terminals
