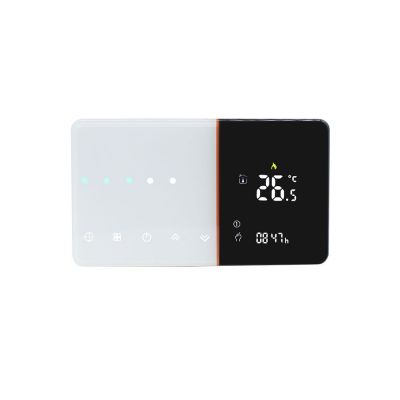

Unique Design Black And White Underfloor Heating Thermostat Smart Thermostat

Product ID : HTW-WF05

Product Tags : boiler thermostat smart thermostat underfloor heating thermostat water heating thermostat

Product Attributes :

HTW-WF05 is suitable for electric heating, water heating, wall-hung boilers and boiler-temperature control systems

Product Description

Unique Design Black And White Underfloor Heating Thermostat Smart Thermostat

>> GeneralHTW-WF05 Series heating thermostats are suitable for electric underfloor heating, water heating, wall-hung boilers, and boiler-temperature control systems.

>> Specification

Power Supply	95~240 V AC，50~60 Hz	Current Load	5 A(water heating/ water boiler/gas boiler) 16 A(electric heating)
Temp. Error	±1°C	Sensor	NTC3950,10K
Timing Error	<1%	Set Temp. Range	5～45°C
Power consumption	<1.5W	Working Ambient Temp/ Humidity	0～45℃，5～95% RH (Non-Condensing)
Installation Box	European 60mm Round Box	Protection Class	Ip20

>> Ordering Guide

Please feel free to contact us for confirm the model according to your need
HTW-WF05-**	Code	Application
	-3A	Water Heating, 3A, NC+NO+Com output terminals
	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals
	-NV	Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-WF05-3A refers to application: Water Floor Heating, 3A, NC+NO+Com output terminals
