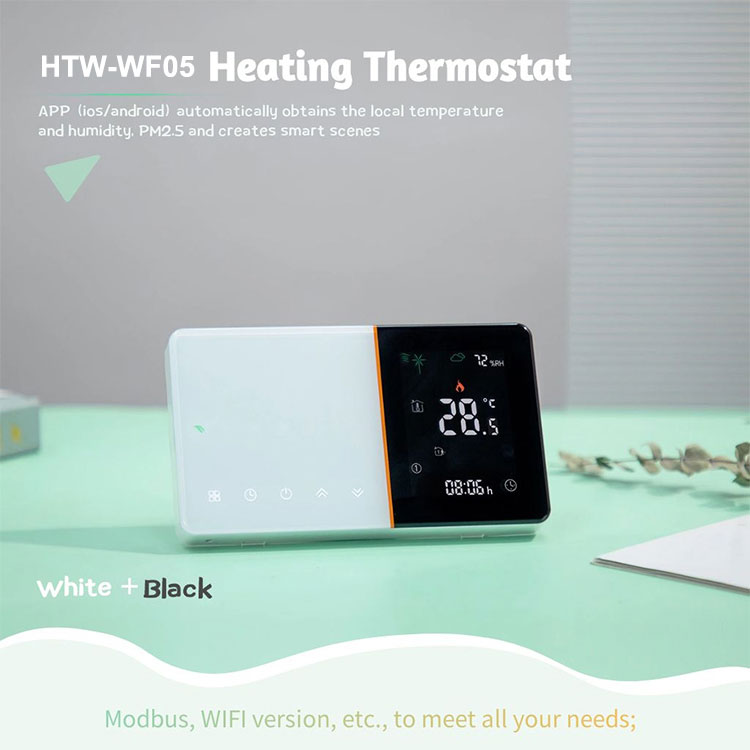

Room Air Conditioning System Tuya Phone App Control Water Heating Thermostat

Product ID : HTW-WF05

Product Tags : Heating Thermostat Room thermostat underfloor heating thermostat water heating thermostat

Product Attributes :

HTW-WF05 is suitable for electric heating, water heating, wall-hung boilers and boiler-temperature control systems

Product Description

Room Air Conditioning System Tuya Phone App Control Water Heating Thermostat

>> General
HTW-WF05 is suitable for electric heating, water heating, wall-hung boilers and boiler-temperature control systems.It can be used in smart controlling houses, shopping malls, and industrial places.

>> Ordering Guide

HTW-WF05- **
	Code	Application
	-3A	Water Heating, 3A, NC+NO+Com output terminals
	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals
	-NV	Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-WF05-3A refers to application: Water Floor Heating, 3A, NC+NO+Com output terminals

>> Specifications

Power Supply	95~240 V AC，50~60 Hz	Current Load	5 A(water heating/water boiler/gas boiler) 16 A(electric heating)
Temp. Error	±1℃	Sensor	NTC3950,10K
Screen	LCD Negative display	Timing Error	<1%
Set Temp. Range	5～45℃	Power consumption	<1.5W
Working Ambient Temp/Humidity	0～45℃，5～95% RH (Non-Condensing)	Installation Box	European 60mm Round Box
Shell Material	PC+ABS(Fireproof)	Buttons	Capacitive Touch Buttons
Protection Class	IP20
