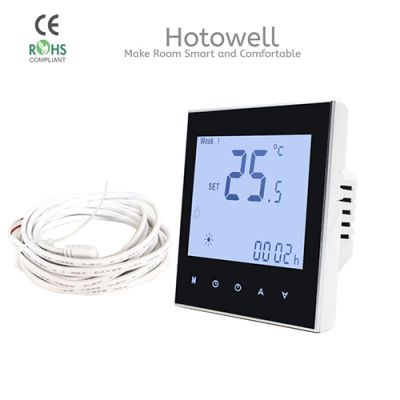

Boiler Heating Thermostat Room Thermostat Wifi Appliance Voice Control 95-240Vac Hotowell WF03

Product ID : HTW-WF03-NV3

Product Tags : Heating Thermostat Room thermostat smart thermostat

Product Attributes :

HTW-WF03 series thermostat can be used in Electric Underfloor Heating, Water Heating, or Water/Gas Boiler systems.

Product Description

Boiler Heating Thermostat Room Thermostat Wifi Appliance Voice Control 95-240Vac Hotowell WF03

>> General

HTW-WF03-NV3
HTW-WF03 series thermostat is widely used in these environments like Homes, Residential buildings, Hotels, Offices and etc. to maintain an ideal room temperature. It can be used in Electric Underfloor Heating, Water Heating, or Water/Gas Boiler systems.

>> Ordering Guide

HTW-WF03-**	Code	Application
	-3A	Water Heating, 3A, NC+NO+Com output terminals
	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals
	-NV	Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
	-1/2/3	1: Stand-alone, 2: Modbus, 3: Wi-Fi
e.g. HTW-WF03-3A1 refers to application: Water Floor Heating, 3A, NC+NO+Com output terminals, Stand-alone version

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	3A(-3A, -NV application)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	16A(-16A application)	Set-Point Range	5 ~ 35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
