Modbus or Wifi Thermostat Fan Coil Thermostat Temperature Controller with Fireproof Housing and LCD Screen

Product ID : HTW-WF01-FC

Product Tags : Fan coil thermostat Room thermostat smart thermostat

Product Attributes :

HTW-WF01-FC series fan coil thermostat is widely used to maintain an ideal room temperature purpose

Product Description

Modbus or Wifi Thermostat Fan Coil Thermostat Temperature Controller with Fireproof Housing and LCD Screen

>> GeneralHTW-WF01-FC series fan coil thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to maintain an ideal room temperature purpose.

>> Ordering Guide

HTW-WF01- FC-**	-2	2 pipe(tube) system	-W	Window Card input
Smart Wifi Fan Coil Thermostat	-4	4 pipe(tube) system	-T	Clock
	-M	Modulating output	-P	Programmable
	-N	Modbus RTU communication	-E	External Temperature Sensor
	-K	Key Card occupancy input	-24v	Power Supply with 24Vac
e.g. HTW-WF01-FC-2KP refers to application: 2 pipe(tube) system, 3 fan speed + 1 H/C valve, with key card and weekly programmable

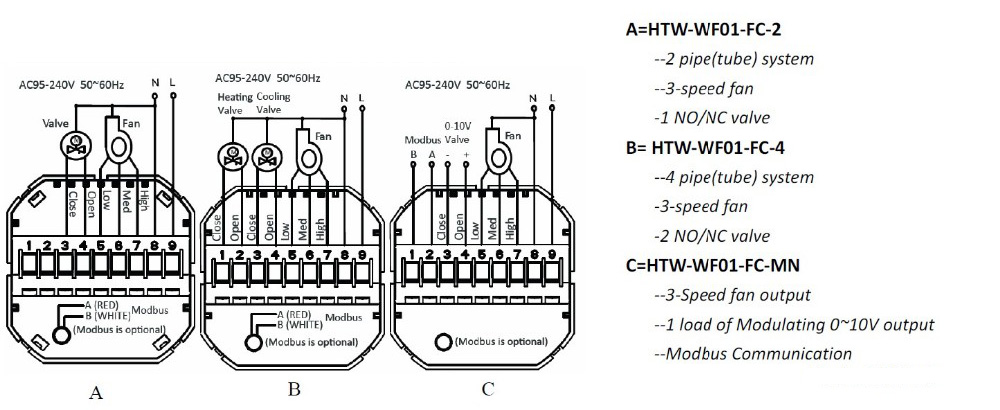

>> Typical Wiring

>>  Specification

Power Supply	95~240Vac,50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 21.5 mm² or 12.5 mm²
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
