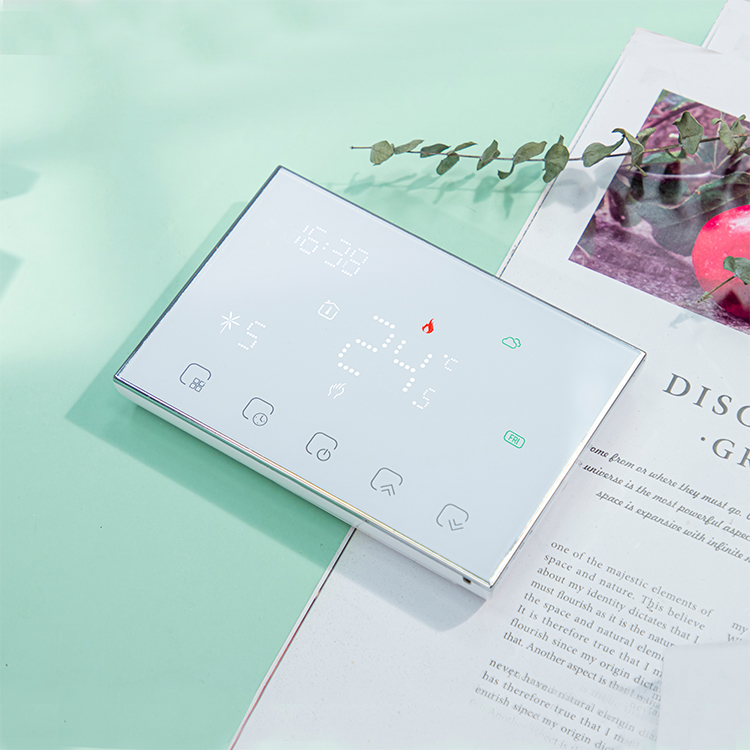

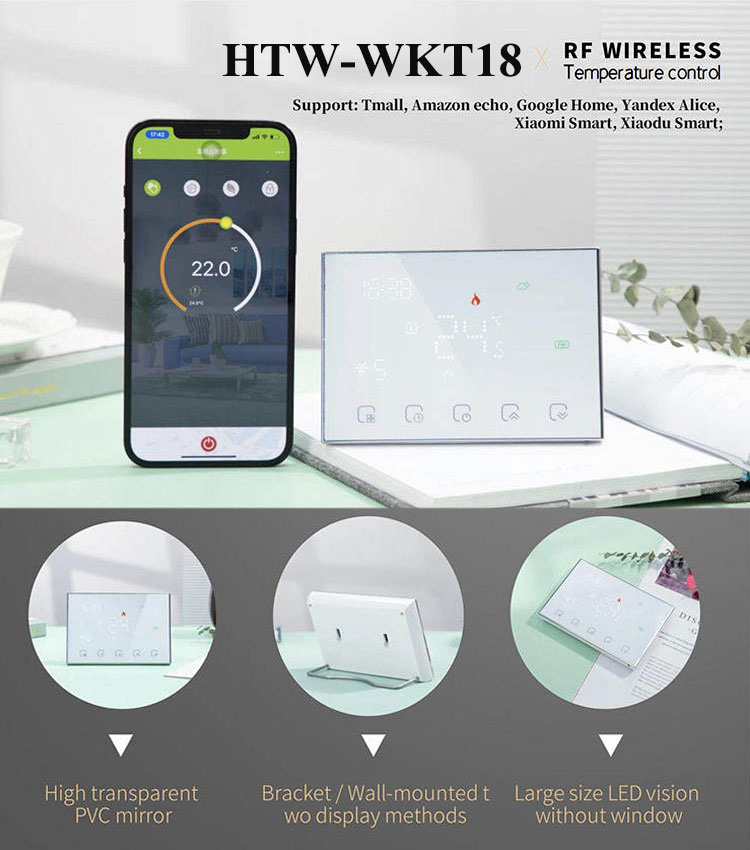

Water Boiler And Electric Heating Wireless Temperature Controller Home Thermostat

Product ID : HTW-WKT18

Product Tags : Heating Thermostat

Product Attributes :

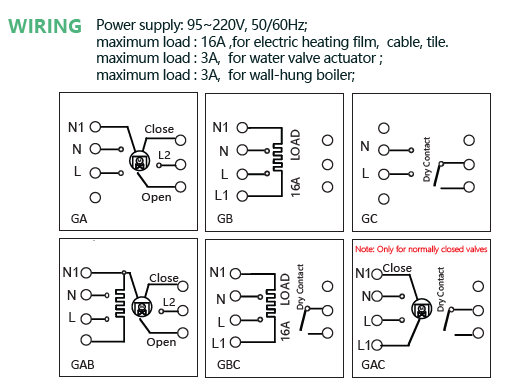

HTW-WKT18 is suitable for electric heating, water heating, wall-hung boilers and boiler temperature control systems. It can be used in smart homes, shopping malls and industrial sites. Before use, please confirm the specific model of this product and the corresponding heating equipment. Please refer to the wiring diagram to identify.

Product Description

Water Boiler And Electric Heating Wireless Temperature Controller Home Thermostat

>> General
HTW-WKT18 is suitable for electric heating, water heating, wall-hung boilers and boiler temperature control systems. It can be used in smart homes, shopping malls and industrial sites. Before use, please confirm the specific model of this product and the corresponding heating equipment. Please refer to the wiring diagram to identify.

>> Ordering Guide

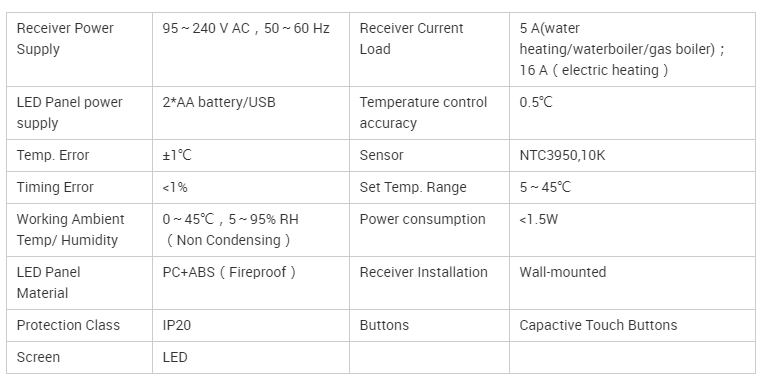

Specification

HTW-WKT18- **
	Code	Application
	-3A	Water Heating, 3A, NC+NO+Com output terminals
	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals
	-NV	Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-WKT18-3A refers to application: Water Floor Heating, 3A, NC+NO+Com output terminals
