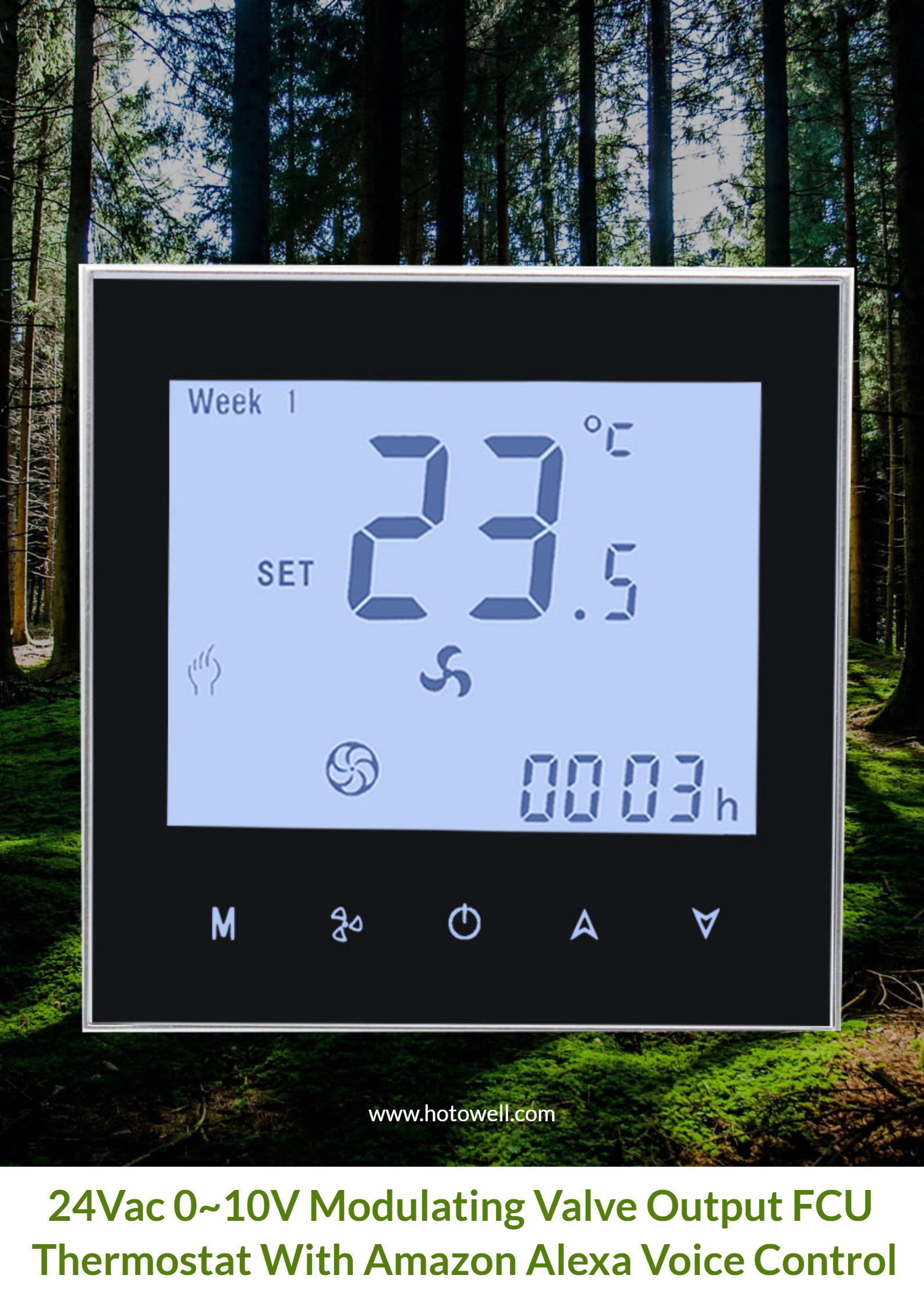

Touch Screen Digital Modbus Modern Style Programmable Room Thermostat For Fan Coil System

Product ID : HTW-WF01-FC-MK

Product Tags : Fan coil thermostat

Product Attributes :

HTW-WF01-FC series Smart Wifi fan coil thermostat is widely used in these environment like Homes,Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose。

Product Description

Touch Screen Digital Modbus Modern Style Programmable Room Thermostat For Fan Coil System

>> General
HTW-WF01-FC series Smart Wifi fan coil thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose

>> Features

* Touch Button makes simple operation. * Large screen display with backlight is easy to read—even in the dark. * Four periods program schedules maximize comfort and economy. * Precise comfort control keeps temperature within *86mm hidden box and european 60mm roundbox is available.

>> Ordering Guides

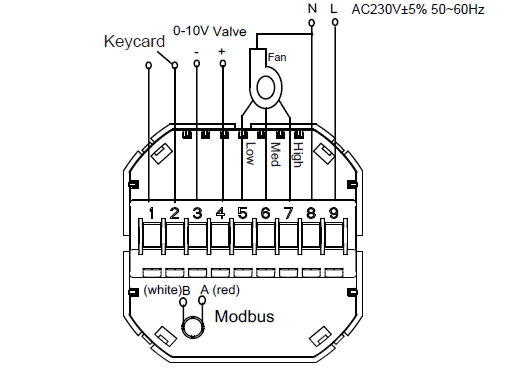

Typical Wiring

Specification

Power Supply	95~240Vac,50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 21.5 mm² or 12.5 mm²
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
