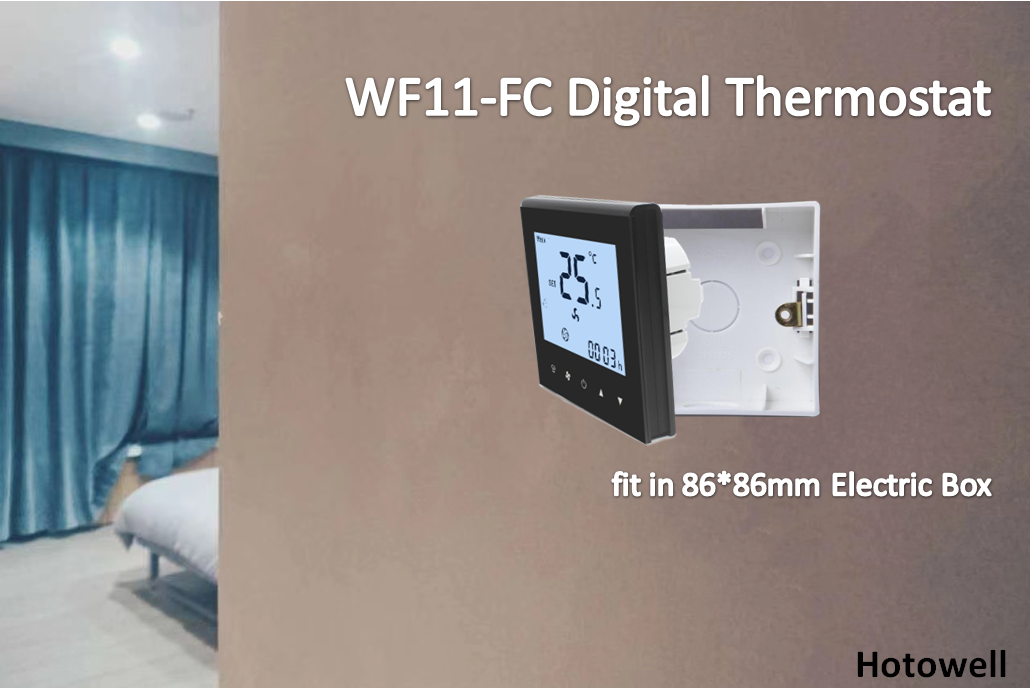

Modbus EC Fan Auto Heat/Cool Changeover Digital Room Thermostat

Product ID : HTW-WF11-FC-ECN

Product Tags :

Product Attributes :

HTW-WF11- EC series Modbus fan coil thermostat is designed with EC Fan + 1 cool valve + 1 heat valve +externals sensor + Keycard +Modbus communication functions, it is widely used in these environment likeHomes, Residential buildings, Schools, Hotels,Hospitals, Offices and etc. to main an ideal room temperaturepurpose.

Product Description

 Modbus EC Fan Auto Heat/Cool Changeover Digital Room Thermostat

>>General
HTW-WF11- EC series Modbus fan coil thermostat is designed with EC Fan + 1 cool valve + 1 heat valve +externals sensor + Keycard +Modbus communication functions, it is widely used in these environment likeHomes, Residential buildings, Schools, Hotels,Hospitals, Offices and etc. to main an ideal room temperaturepurpose.

>>Features

* EC fan control with starting voltage configurable * Snap-ln Easy Installation
* Fit for EU & Standard Junction Electric Box
* Modbus Communication
* Remote Setback(Keycard),External Sensor
* Fashion Sense of Science and Technology
* Auto Heat/Cool Changeover

Typical Wiring

Specification

Power supply	95~240Vac,50/60Hz	Sensor	NT3950,10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5℃ or ±1F
Storage Temp.	-5~45℃	Display Temp.Range	5~99℃
Power Consumption	<1.5W	Timing Error	<1%
Housing Material	PC+ABS(Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 21.5 mm² or 12.5 mm²
Protection Class	IP20	Operating Bottons	Capacitive Touch Buttons
