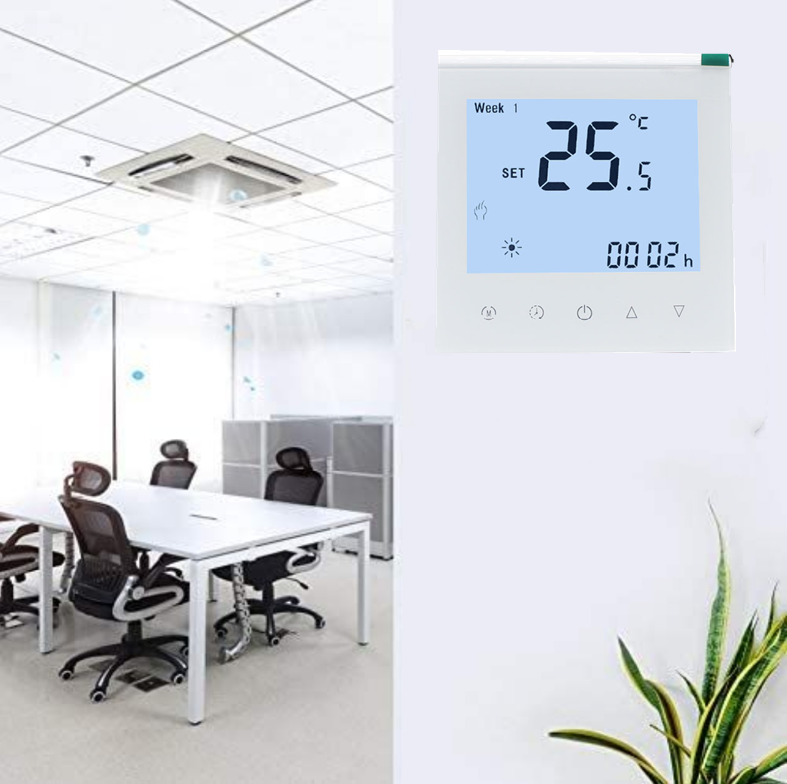

Modbus 0-10v Fan Coil Thermostat With Keycard/Window card Digital Air Conditioner Remote Control

Product ID : HTW-WF11-FC-MKWN

Product Tags : Fan coil thermostat

Product Attributes :

HTW-WF11-FC series Smart Wifi fan coil thermostat is widely used in these environment like Homes,Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose

Product Description

Modbus 0-10v Fan Coil Thermostat With Keycard/Window card Digital Air Conditioner Remote Control

>> GeneralHTW-WF11-FC series Smart Wifi fan coil thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose

Power Supply	95~240Vac,50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 21.5 mm² or 12.5 mm²
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
