HTW-WF11-FC Series Fan Coil Thermostat 0-10v Valve Keycard Function With External Sensor Smart Thermostat

Product ID : HTW-WF11-FC-MKE

Product Tags : Fan coil thermostat

Product Attributes :

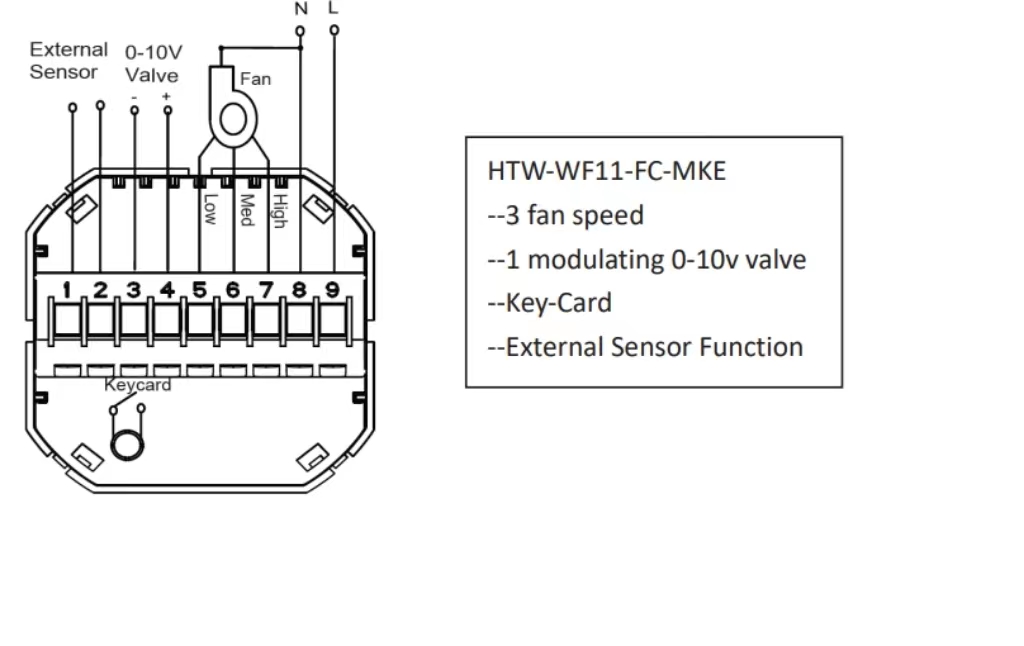

HTW-WF11-FC-MKE series fan coil thermostat is designed to control 2 pipe Fan Coil Unit system, with outputs of 3 fan speed and 1 modulating 0-10V valve, with remote setback (keycard) input or external sensor input. It is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc to main an ideal room temperature purpose..

Product Description

HTW-WF11-FC Series Fan Coil Thermostat 0-10v Valve Keycard Function With External Sensor Smart Thermostat

>>General
HTW-WF11-FC-MKE series fan coil thermostat is designed to control 2 pipe Fan Coil Unit system, with outputs of 3 fan speed and 1 modulating 0-10V valve, with remote setback (keycard) input or external sensor input. It is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc to main an ideal room temperature purpose..

>>Features

* Snap-In Easy Installation
* Fit for EU & Standard Junction Electric Box
* Fashion Scense of Science and Technology
* Weekly Programmable
* Cooling only/Heating or Cooling mode

Power supply	95~240Vac,50/60Hz	Sensor	NT3950,10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5℃ or ±1F
Storage Temp.	-5~45℃	Display Temp.Range	5~99℃
Power Consumption	<1.5W	Timing Error	<1%
Housing Material	PC+ABS(Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 21.5 mm² or 12.5 mm²
Protection Class	IP20	Operating Bottons	Capacitive Touch Buttons
