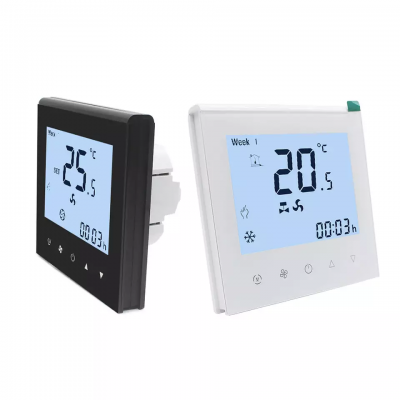

Top Quality BACnet Fan Coil Thermostat 3 Fan Speed Keycard External Sensor Hotel Smart Thermostats

Product ID : HTW-WF11-FC-KEB

Product Tags : Bacnet thermostat

Product Attributes :

HTW-WF11-FC-KEB series BACnet fan coil thermostat is designed to control 2/4 pipe Fan Coil Unit system, with outputs of 3 fan speed and 1 digital on/off cooling valve and/or 1 digital on/off heating valve, with remote setback (keycard) input or external sensor input and BACnet communication. It is widely used in these environments like Homes, Residential buildi ngs, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

Product Description

BACnet Fan Coil Thermostat 3 Fan Speed Keycard External Sensor Hotel Smart Thermostats

>>General HTW-WF11-FC-KEB series BACnet fan coil thermostat is designed to control 2/4 pipe Fan Coil Unit system, with outputs of 3 fan speed and 1 digital on/off cooling valve and/or 1 digital on/off heating valve, with remote setback (keycard) input or external sensor input and BACnet communication. It is widely used in these environments like Homes, Residential buildi ngs, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

>>Features

* Snap-In Easy Installation
* Fit for EU & Standard Junction Electric Box
* Fashion Scense of Science and Technology
* Weekly Programmable
* Cooling only/Heating or Cooling mode

Specification

Power supply	95~240Vac,50/60Hz	Sensor	NT3950,10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5℃ or ±1F
Storage Temp.	-5~45℃	Display Temp.Range	5~99℃
Power Consumption	<1.5W	Timing Error	<1%
Housing Material	PC+ABS(Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 21.5 mm² or 12.5 mm²
Protection Class	IP20	Operating Bottons	Capacitive Touch Buttons
