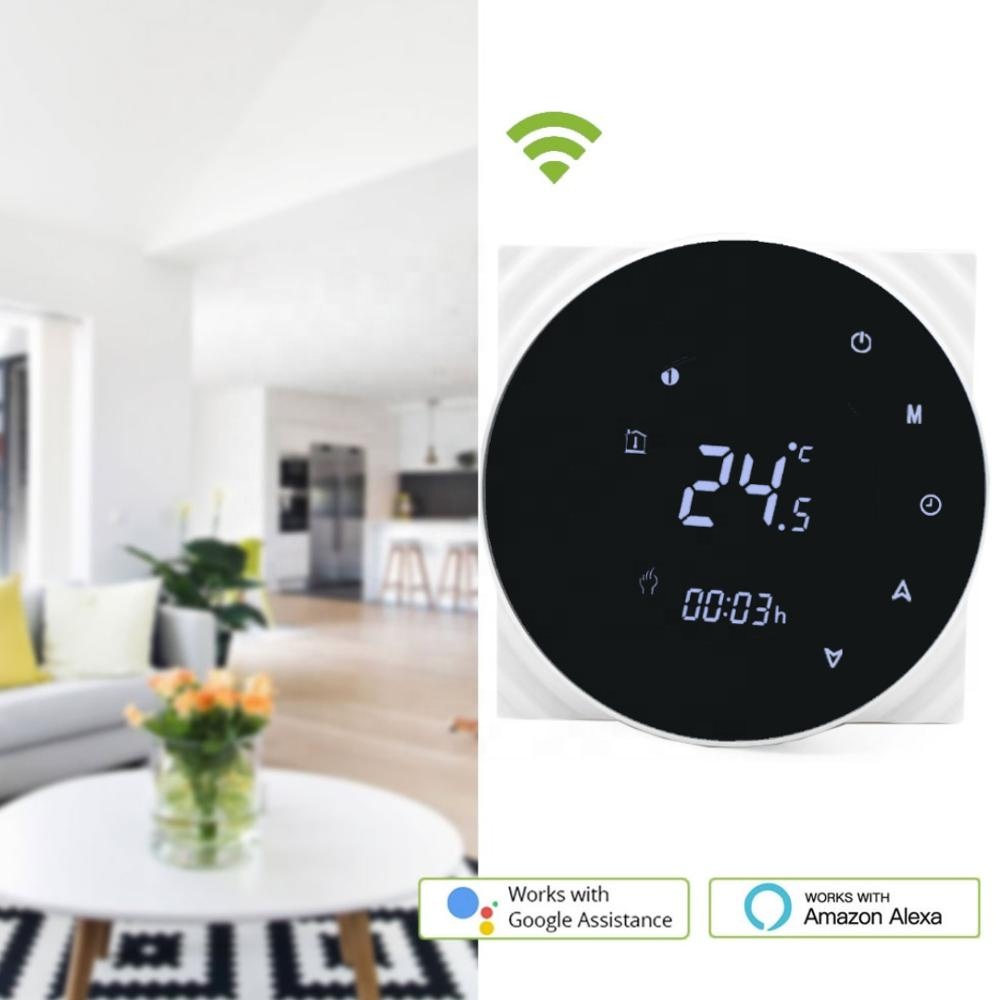

2022 WIFI Control Nest Type Weekly Programmable Touch Screen Heating Thermostats HTW-WF06

Product ID : HTW-WF06

Product Tags : Heating Thermostat

Product Attributes :

HTW-WF06 series Smart Wifi thermostat is widely used in these environment like Residential buildings, Schools, Hotels,Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating,Water Heating or Water/Gas Boiler systems.

Product Description

2022 WIFI Control Nest Type Weekly Programmable Touch Screen Heating Thermostats HTW-WF06

>> General

HTW-WF06 series Smart Wifi thermostat is widely used in these environment like Residential buildings, Schools, Hotels,Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating,Water Heating or Water/Gas Boiler systems.

>> Ordering Guide

>> Ordering Guide

Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(3A-inductive) Temperature Accuracy	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm² or 1 x 2.5 mm²
