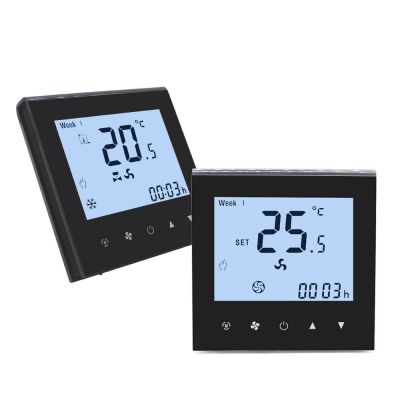

Hotowell HTW-61-D.A EC Fan RS485 Touch Screen 1 Fan 1 Valve Thermostats

Product ID : HTW-61-D.A

Product Tags : Fan coil thermostat

Product Attributes :

The device includes a built in temperature sensor on its front panel for room temperature measurement, and features an advanced control algorithm for fan coil speed and valve position control.
The device includes a simple configuration menu that allows configuring up to 28 parameters. The unit can thus be adapted to the requirements of each installation.

Product Description

Hotowell HTW-61-D.A EC Fan RS485 Touch Screen 1 Fan 1 Valve Thermostats

Specification


>>General

This series thermostat application is designed for room climate control at hotels, offices and homes with water and fan coil
installations.
* 3D1D includes 3 load digital ON/OFF fan speed outputs and 1 load digital ON/OFF valve output;
* 1A1D includes 1 load analogue EC fan motor output and 1 load digital ON/OFF valve output;
* 1A1A includes 1 load analogue EC fan motor output and 1 load analogue valve output;
The device includes a built in temperature sensor on its front panel for room temperature measurement, and features an advanced
control algorithm for fan coil speed and valve position control.
The device includes a simple configuration menu that allows configuring up to 28 parameters. The unit can thus be adapted to the
requirements of each installation
>>Features

* 100~240Vac, 50/60Hz
* Touch Screen Display
* 60mm Standard Installation Hole Distance
* Change Over-HEAT/COOL
* Configurable for 2 pipe / 4 pipe systems
* Selectable temperature units (ºC/ºF)
