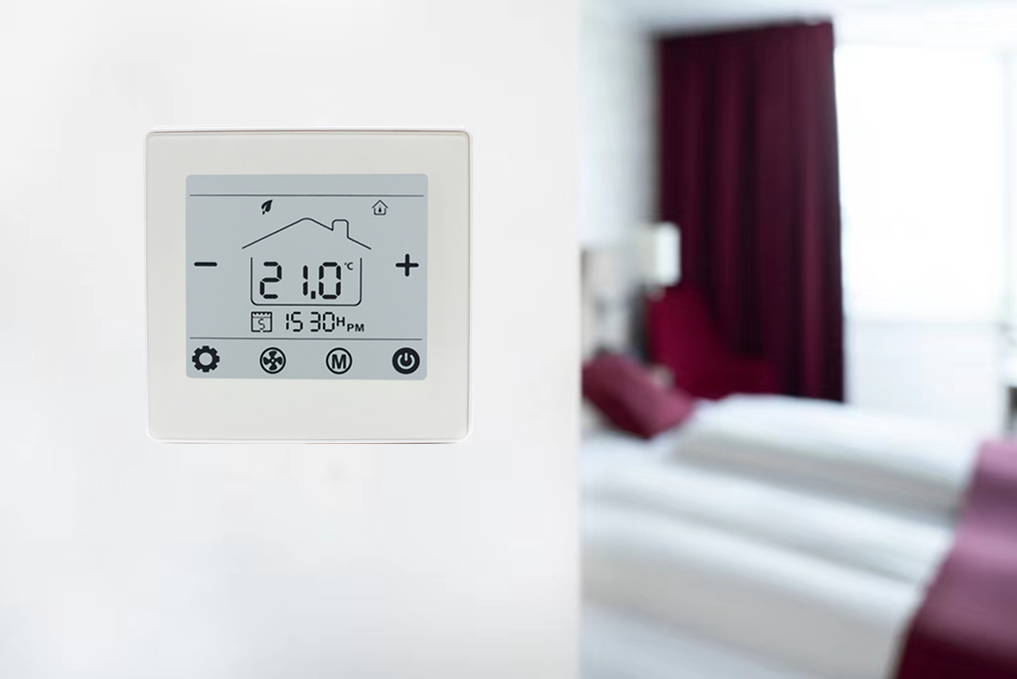

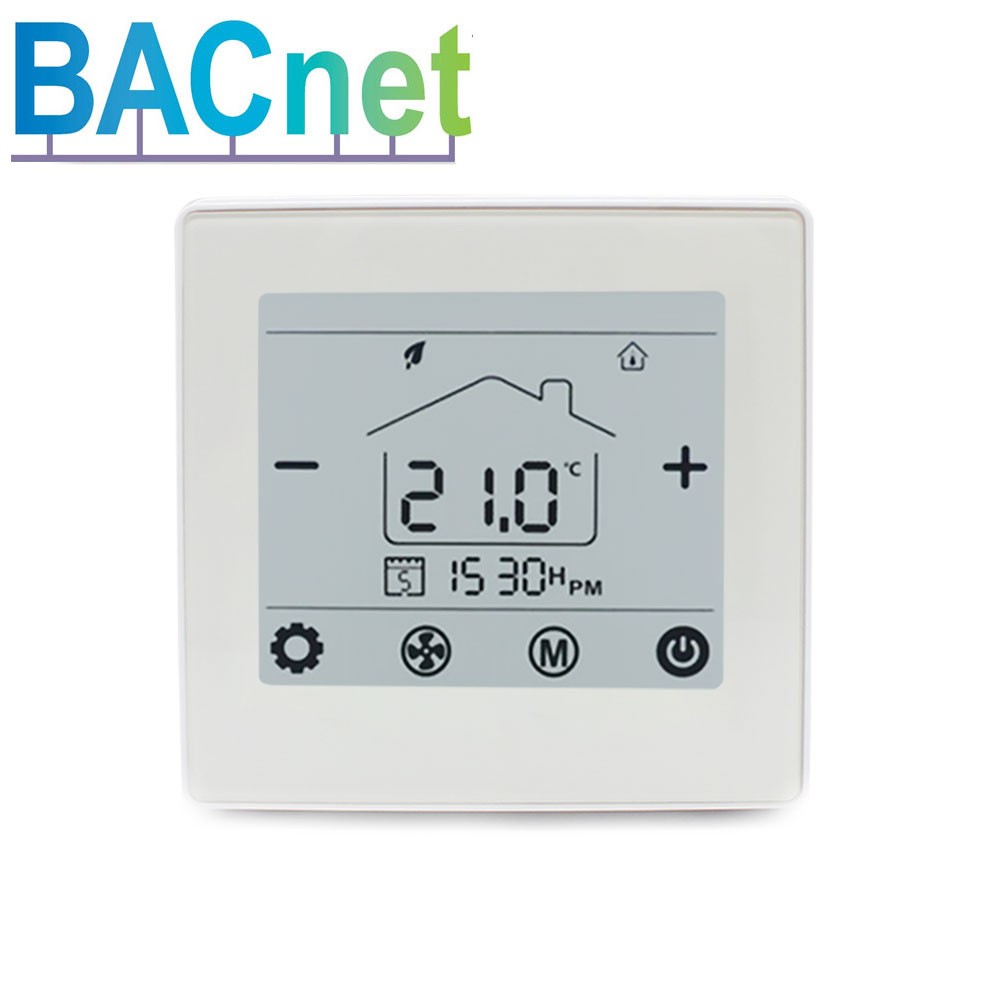

HTW-31-F10 Bacnet Fan Coil 2/4 Pipes 3 Fan Speeds Hotel Room Thermostats With Keycard Function

Product ID : HTW-31-F10

Product Tags : Fan coil thermostat

Product Attributes :

This HTW-31-F10-4BK digital thermostat is designed to controls the fans, valves, dampers or electric heater in fan coil units andheating applications in industrial, commercial or residential environment.

Product Description

HTW-31-F10 Bacnet Fan Coil 2/4 Pipes 3 Fan Speeds Hotel Room Thermostats With Keycard Function

>>General.

This HTW-31-F10-4BK digital thermostat is designed to controls the fans, valves, dampers or electric heater in fan coil units andheating applications in industrial, commercial or residential
environment.

>>Features.

• Attractive modern styling
• Adjustable heating/cooling/ventilating mode control
• Adjustable manual 3-speed and automatic fan speed control
• 4pipe system
• Bacnet
• Keycard Contact
• External sensor(Optional)

>>Technical Specification.

Power supply	110-230V
Frequency	50/60HZ
Control algorithm	Pl, On/off output
Accuracy	+/- 1°C at 21 °C
Backlight	White
Power Consumption	1.5A
Setpoint range	5~80℃
Ambient	0~50℃
Protection Class	IP30
Relative Humidity	85%
Housing	ABS to UL94-5 fire retardantplastic
