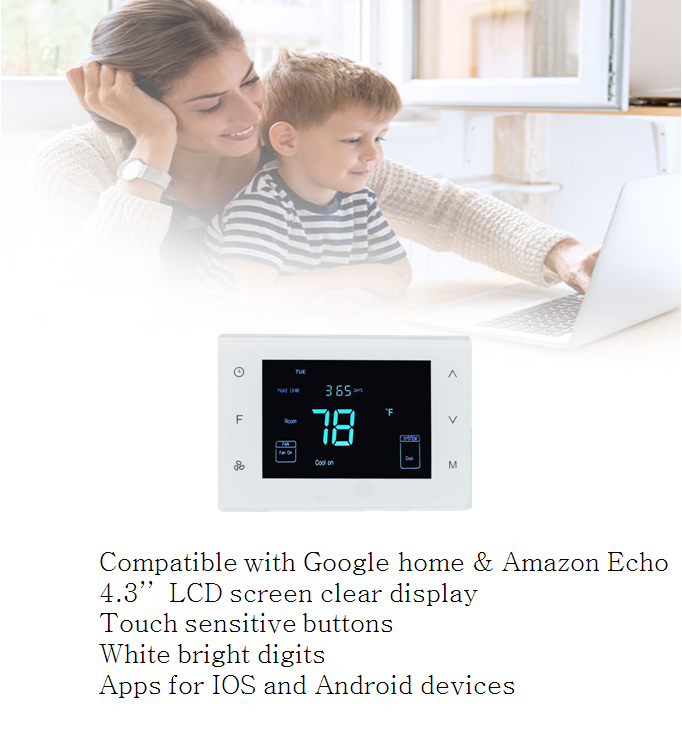

Winter Heating Summer Cooling Apps Control Touchscreen Digital Multi-Stage Thermostats HTW-81-FN7

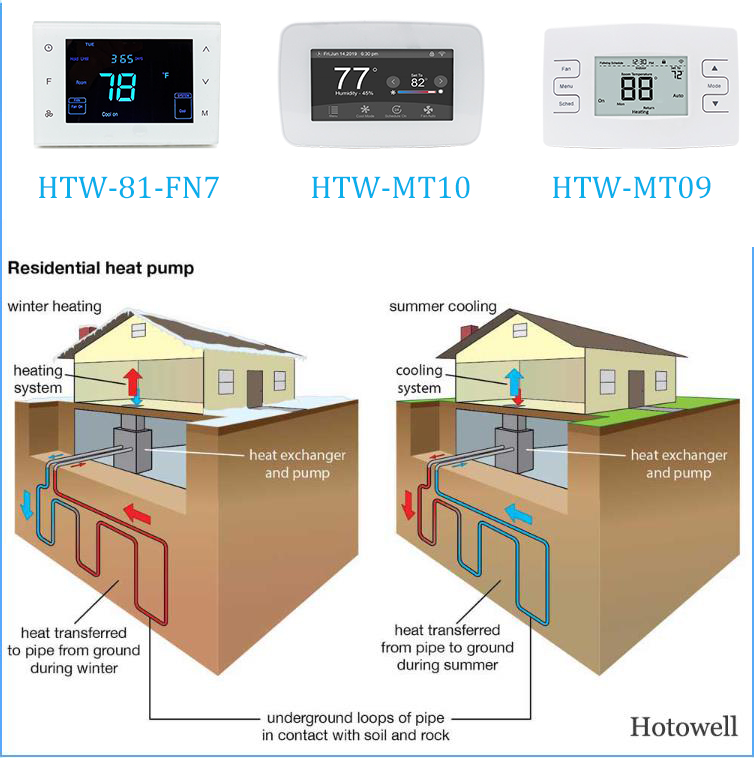

HTW-81-FN7 Series Single Multi-Stage Digital Heat Pump Thermostat is a device for indoor temperature control. It is mainly applied to heat pump system for heating/cooling, with 3 modes easily switchable: Schedule, Hold and Holiday. The device is of high reliability and practicability,and it can support up to 3H/2C system.
>> General
HTW-81-FN7 Series Single Multi-Stage Digital Heat Pump Thermostat is a device for indoor temperature control. It is mainly applied to heat pump system for heating/cooling, with 3 modes easily switchable: Schedule, Hold and Holiday. The device is of high reliability and practicability,and it can support up to 3H/2C system.
>>specifications
Power dissipation：2W
Dimension: 136*94*26mm
Output: <1A (Resistant load)
Temperature range: 41ºF -99ºF (5ºC -37ºC)
Display accuracy: ±0.5 ºC
Wiring: Terminals
Installation dimension: 60mm / 82mm (hole pitch)
>>Application
>>1H/1C (conventional)
>>1H/2C (conventional)
>>2H/2C (conventional)
>>2H/1C (conventional)
>>1H/1C (heat pump)
>>2H/1C (heat pump)
>>2H/2C (heat pump)
>>3H/2C (heat pump)

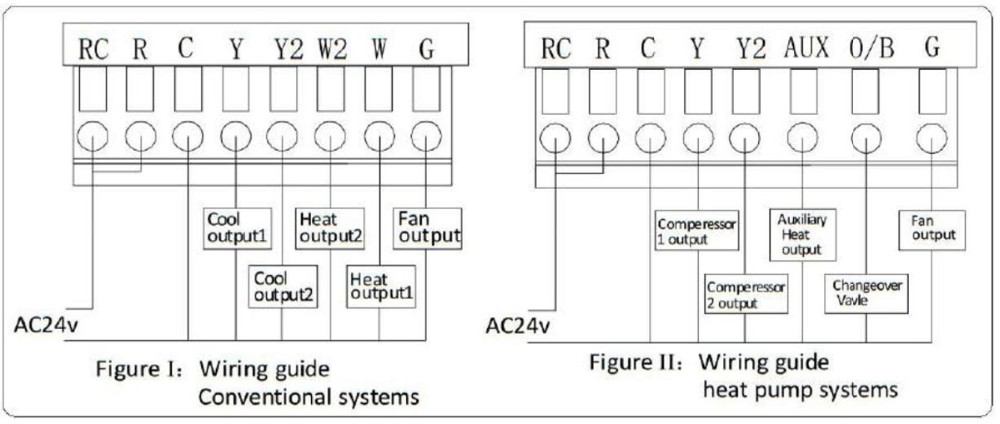

>>Wiring Diagram
>>Terminal Instruction

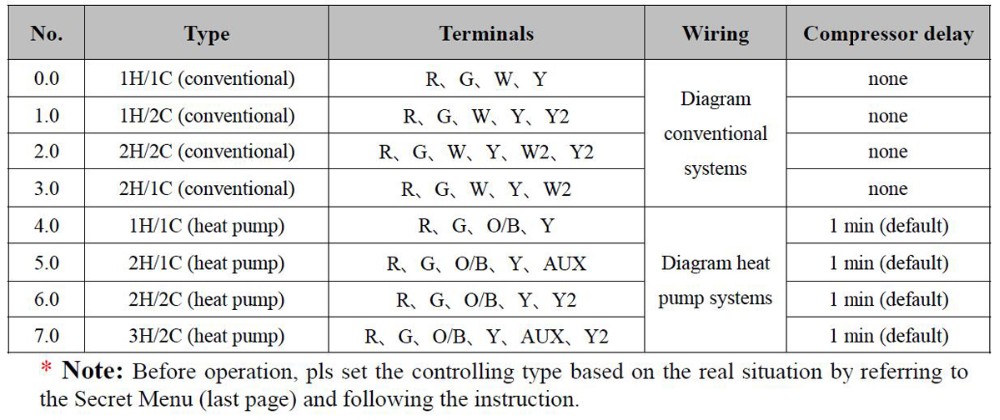

>>Controlling Type Configuration

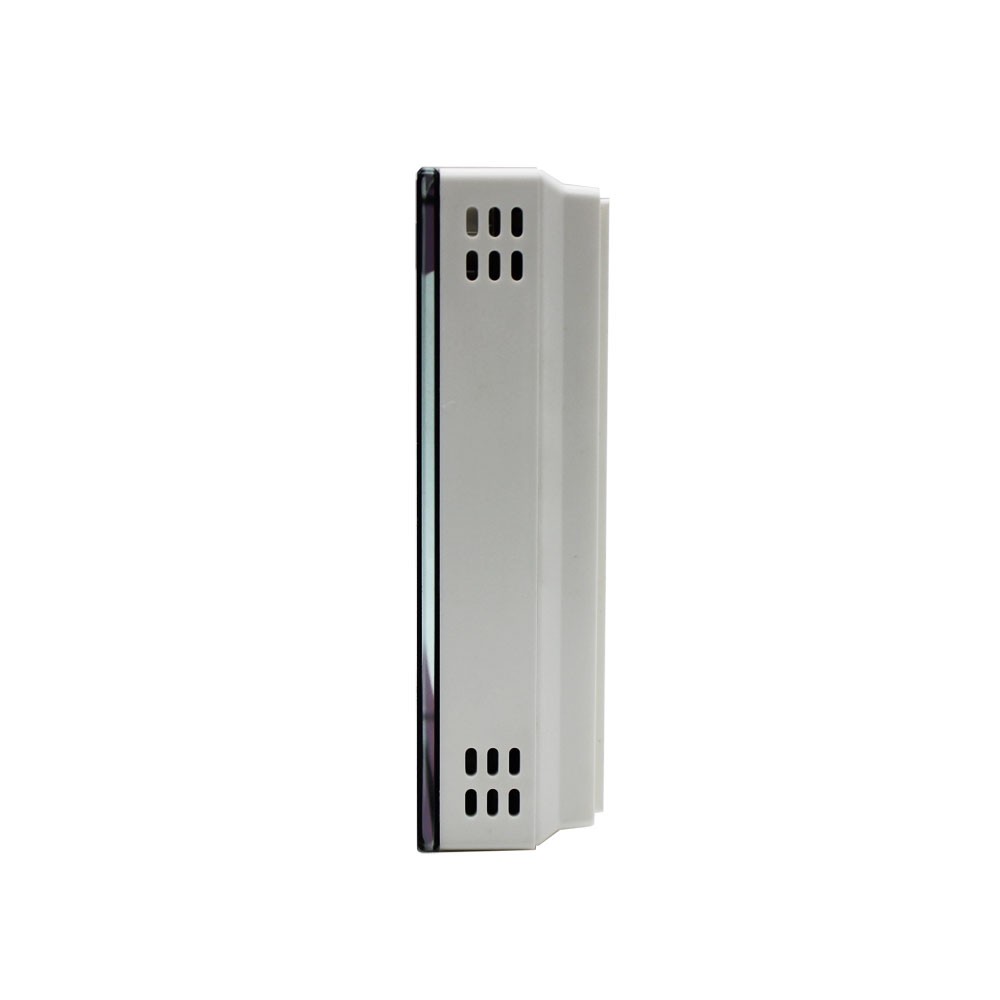

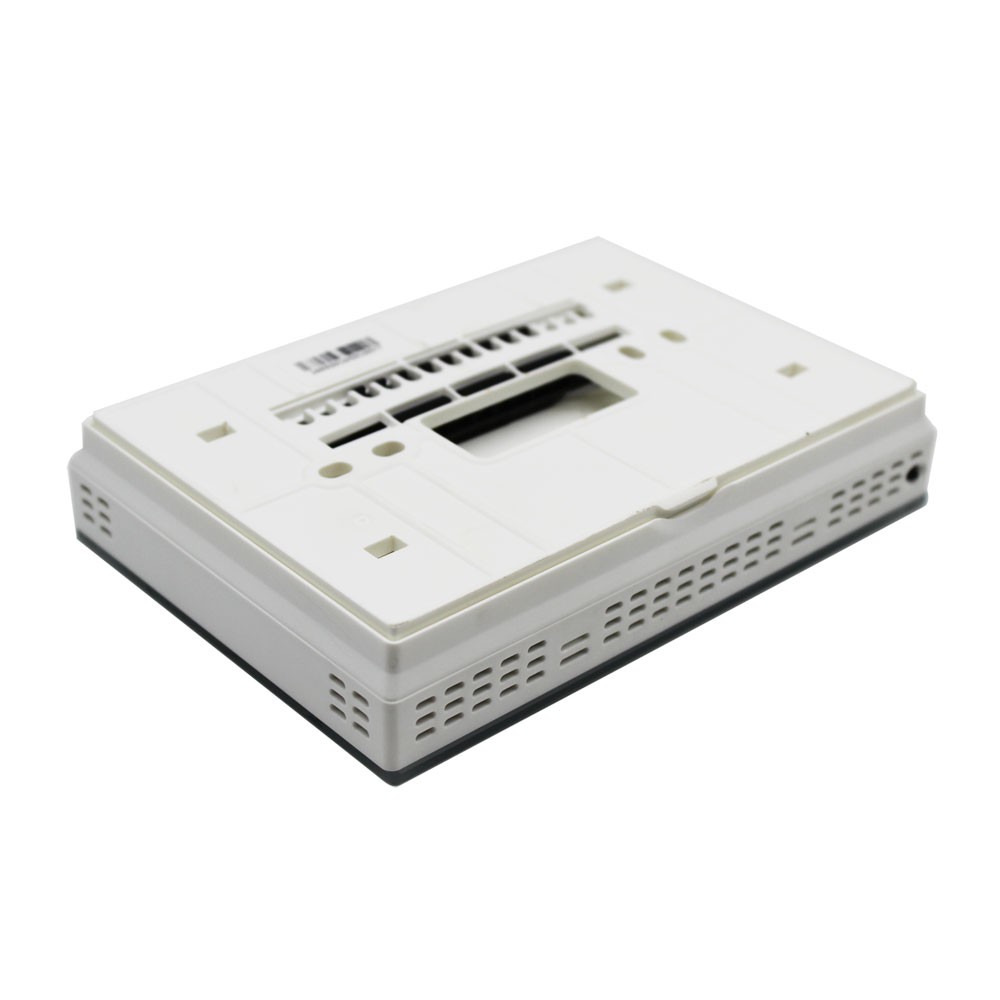

>> Product Details
