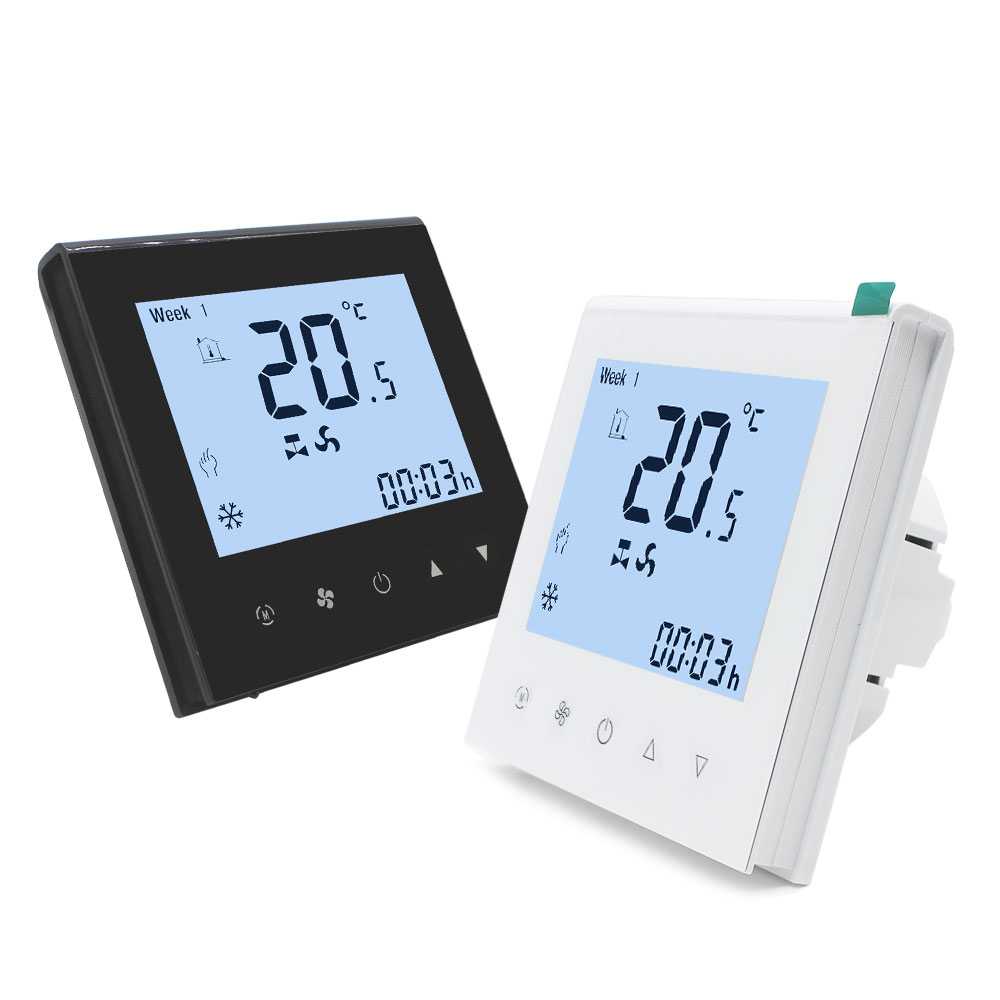

HVAC System Fan Coil Smart Digital Cooling Thermostat App Controlling

Product ID : HTW-WF11-FC

Product Tags : Fan coil thermostat

Product Attributes :

HTW-WF11 series standalone fan coil thermostat is to control fan coil system, with 3-speed fan andwater based valve outputs, which is widely used in these environment like Homes, Residentíal buildings,Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

Product Description

>> General

HTW-WF11 series standalone fan coil thermostat is to control fan coil system, with 3-speed fan andwater based valve outputs, which is widely used in these environment like Homes, Residentíal buildings,Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

>> Feature
* Snap-in Easy Installation
* Fit for EU & Standard Junction Electric Box
* Fashion Sense of Science and Technology

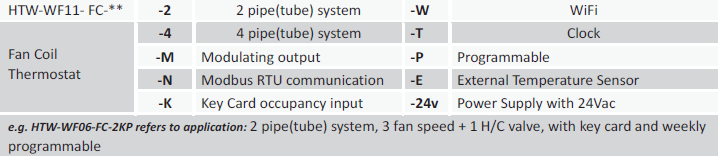

>> Ordering Guide

>> Typical Wiring

Specification

Power Supply	95~240Vac,50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(3A-ininductive)	Temperature Accuracy	±0.5°C or ±1℉
	Valve Relay 3A(1A-ininductive)	Set-Point Range	5~35°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
