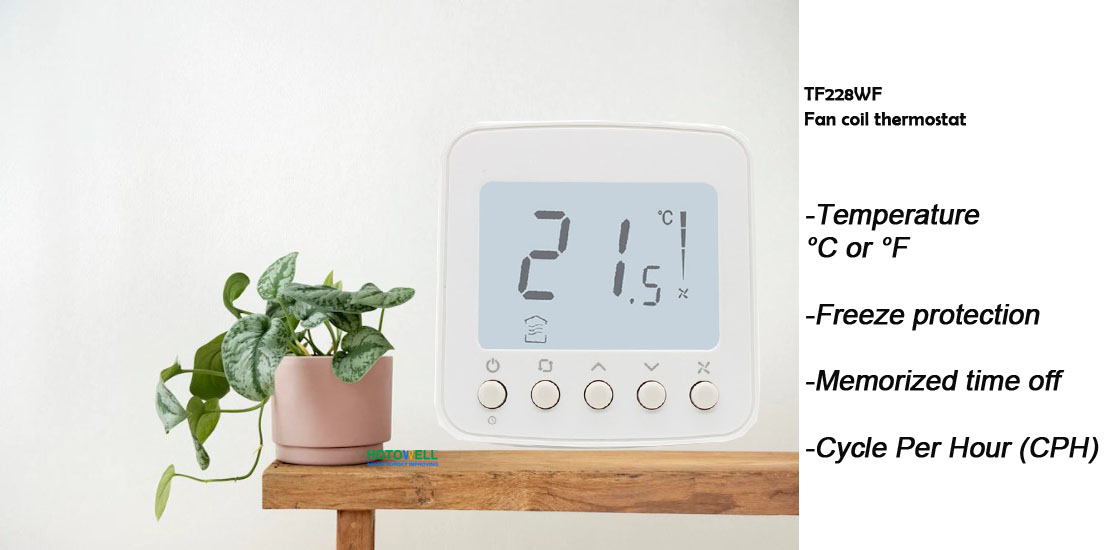

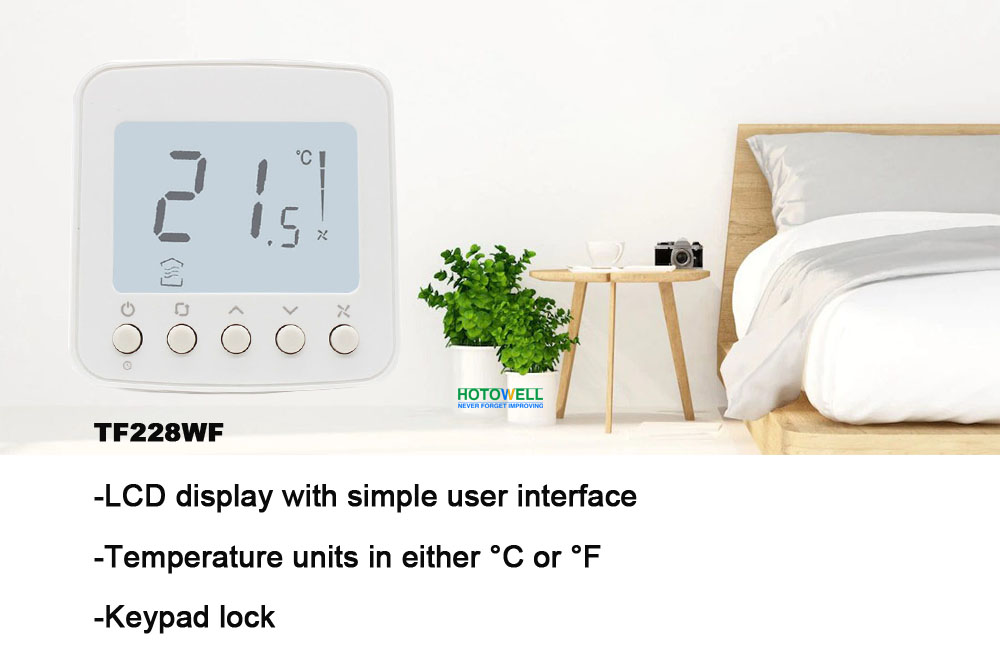

Smart Digital Thermostat White 3 Speed Fan Coil Thermostat with Keypad Lock Function
Smart Digital Thermostat White 3 Speed Fan Coil Thermostat with Keypad Lock Function Smart Digital Thermostat White 3 Speed Fan Coil Thermostat with Keypad Lock Function Smart Digital Thermostat White 3 Speed Fan Coil Thermostat with Keypad Lock Function Smart Digital Thermostat White 3 Speed Fan Coil Thermostat with Keypad Lock Function Smart Digital Thermostat White 3 Speed Fan Coil Thermostat with Keypad Lock Function

Smart Digital Thermostat White 3 Speed Fan Coil Thermostat with Keypad Lock Function

Product ID : TF228WN
Product Tags : Fan coil thermostat
Product Attributes :

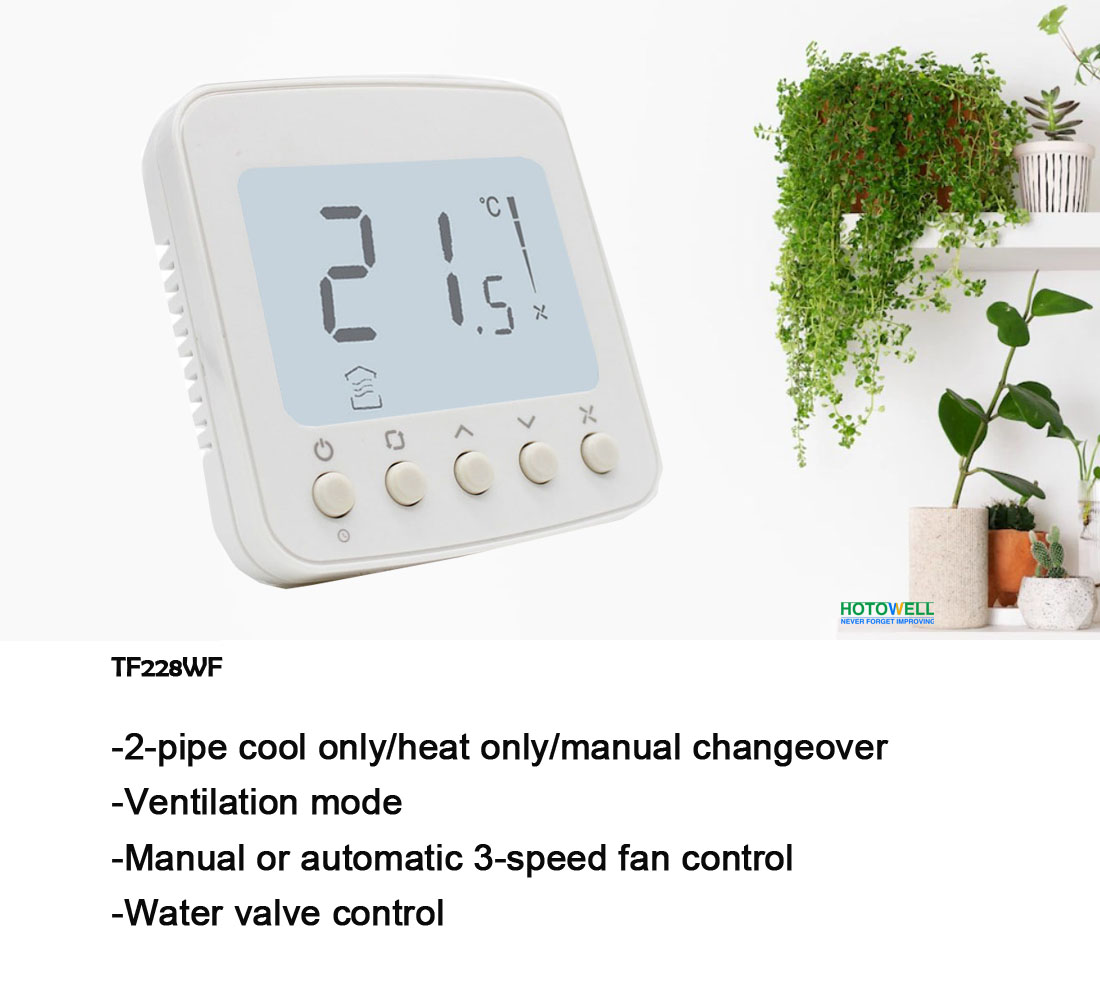

The TF228WN digital thermostat is designed for 3-speed fan and valve control in a fan coil system.

Product Description
Smart Digital Thermostat White 3 Speed Fan Coil Thermostat with Keypad Lock Function



>> General

The TF228WN digital thermostat is designed for 3-speed fan and valve control in a fan coil system

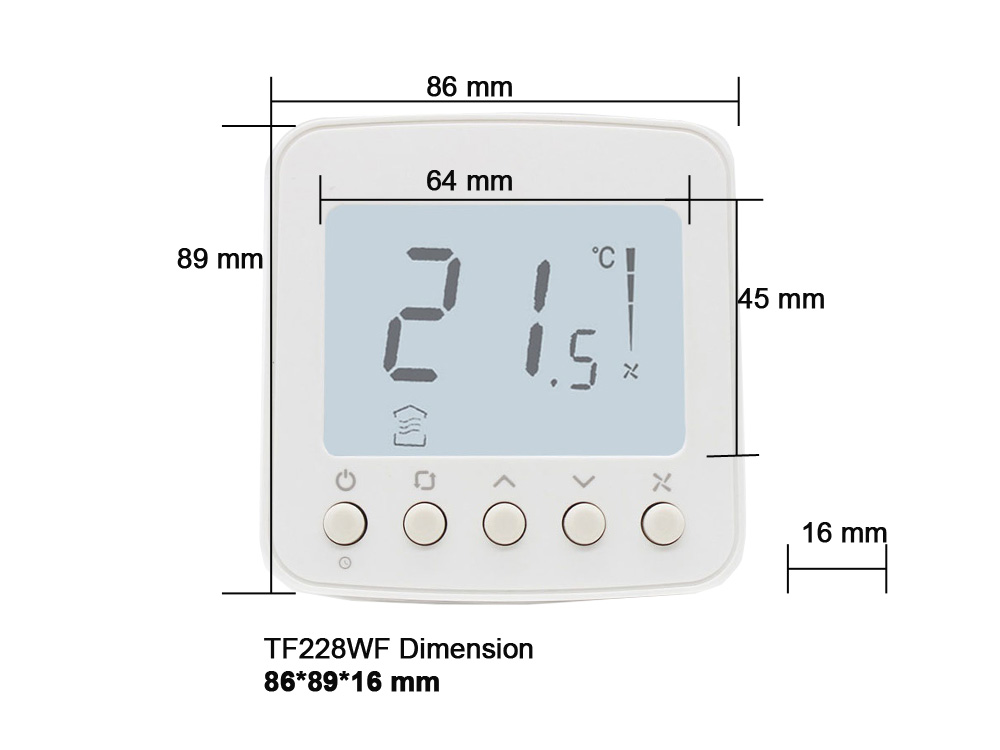

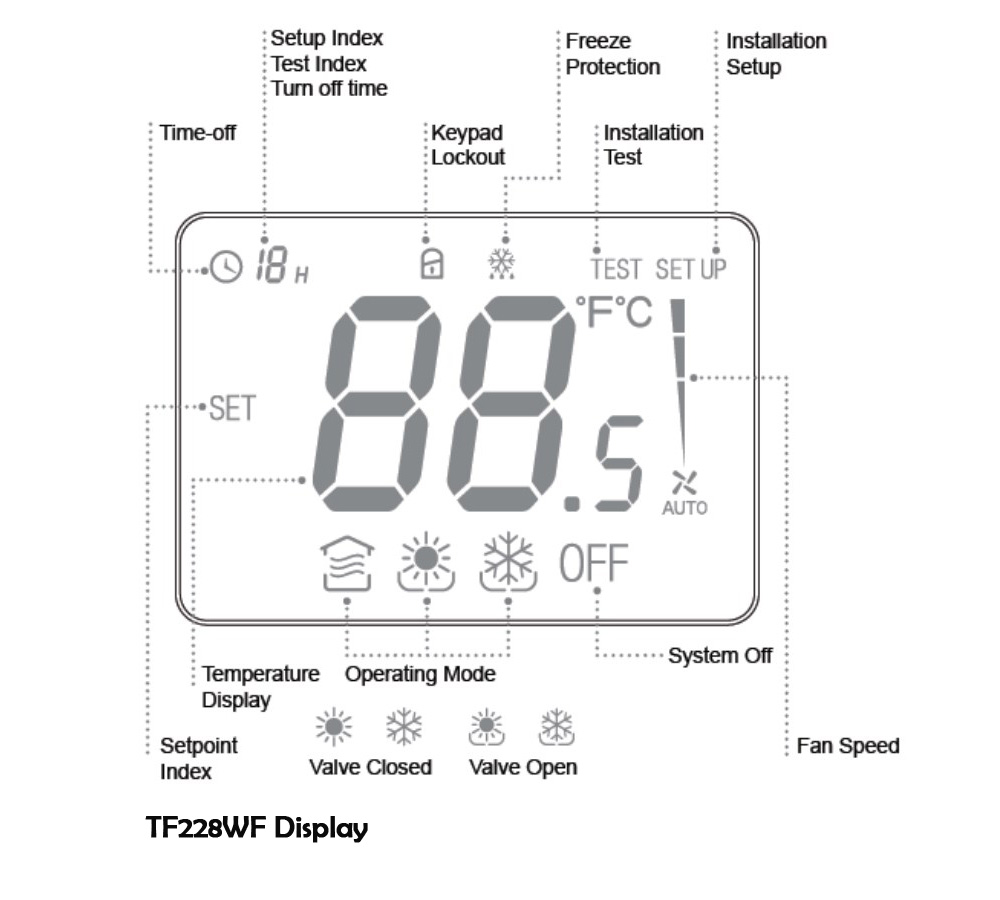

>> Dimension and Display

>> Technical Parameter

Power supply :
220(+10%,-15%)VAC, 50Hz
Control PI,
On/off output
Accuracy :
±1°C at 21°C
Rating capacity:
3A for fan load, 2A for zone valve
Protection class:
IP20
Set point range:
10 ~ 32°C
Display range:
0 ~ 37°C
Ambient operating limits:
0~ +49°C
Ambient storage limits:
(-30 ~ +49°C
Humidity limits:
5~90% RH, non-condensing

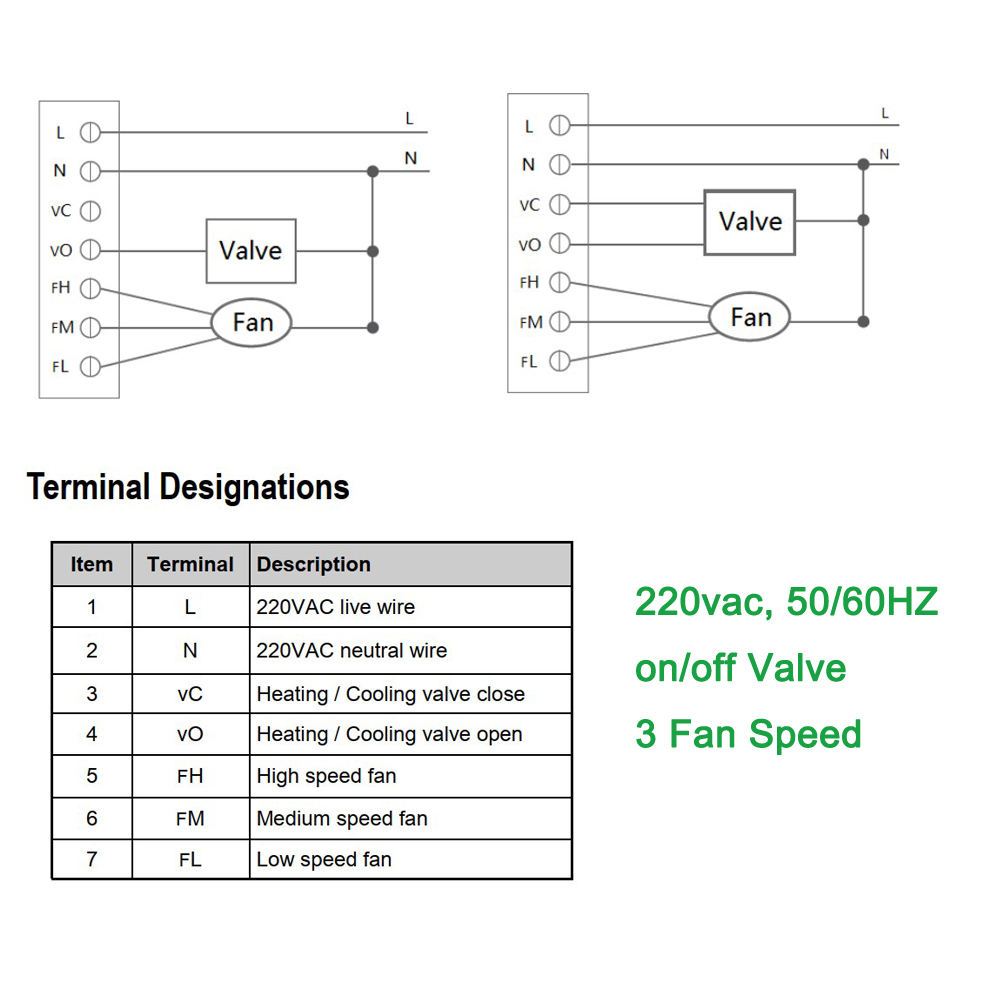

>> Typical Wiring Diagrams

>> Applications

Packing & Delivery
