T6861 Series Hotowell Smart Thermostat Digital 3 Speed Fan Coil Thermostat with Key Card Function

Product ID : HTW-T6861

Product Tags : hotel thermostat smart thermostat

Product Attributes :

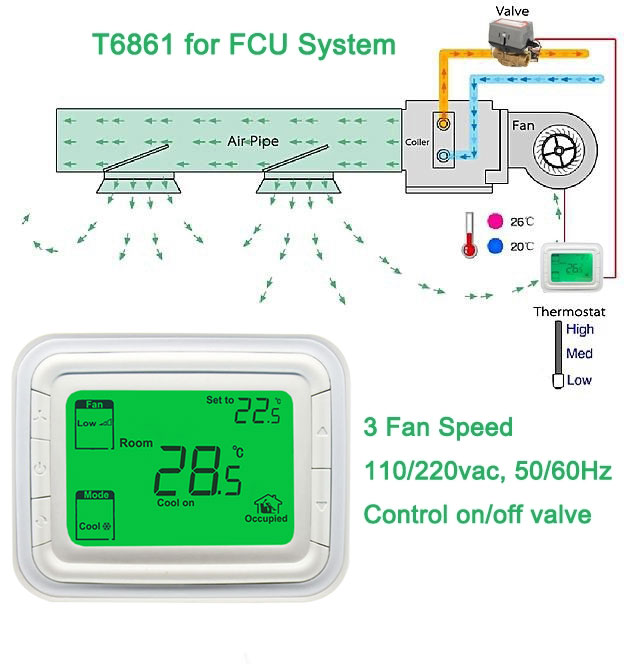

These digital thermostats are designed for the application of 3-speed fan and valves in fan coil system. This model with total the same functions as Honeywell raw model T6861.

Product Description

T6861 Series Hotowell Smart Thermostat Digital 3 Speed Fan Coil Thermostat with Key Card Function

>> General
These digital thermostats are designed for the application of 3-speed fan and valves in fan coil system. This model with total the same functions as Honeywell raw model T6861.

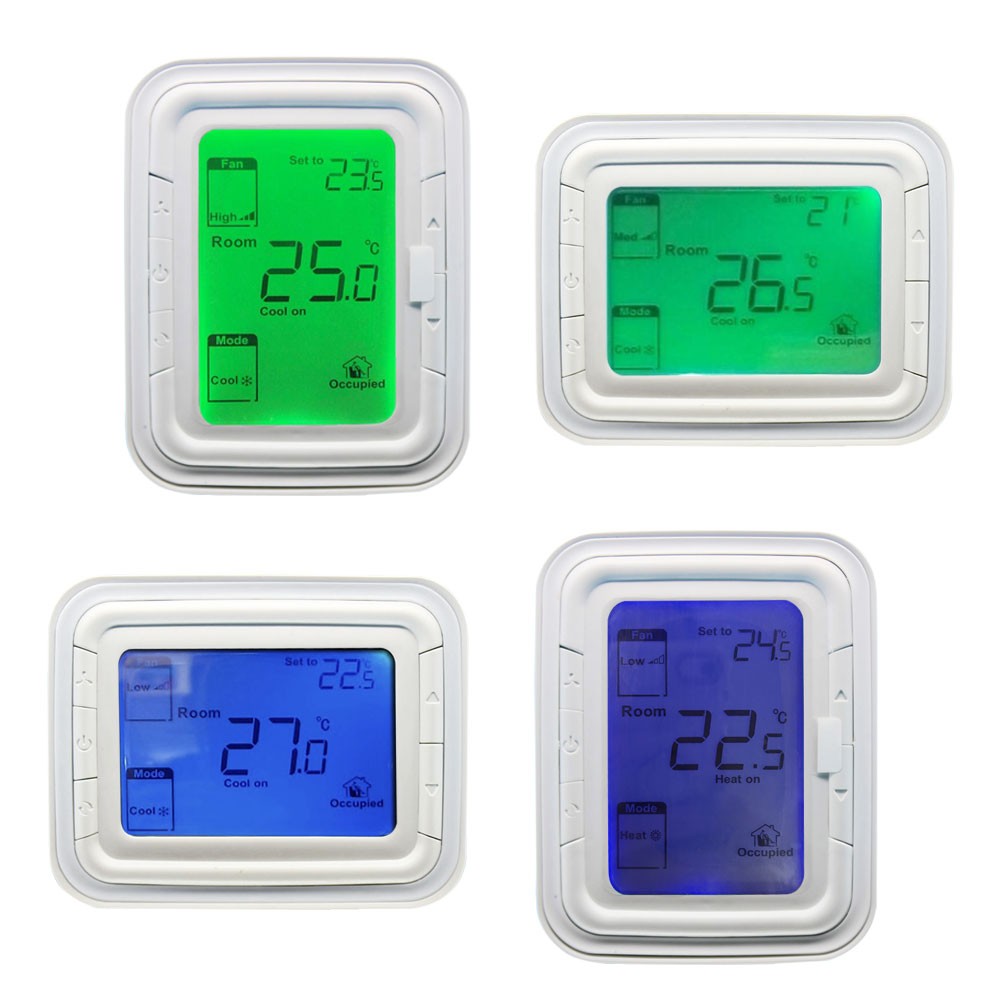

Include T6861H1WB, T6861H1WG, T6861H2WB, T6861H2WG, T6861V1WB, T6861V1WG, T6861V2WB, and T6861V2WG eight types Choice, could meet different requirements accordingly.

>> Display

>> Specification

Power supply		110(+/-10%)VAC,220(+10%,-15%)VAC
Frequency		50/60HZ
Control algorithm		Pl, On/off output
Accuracy		+/- 1°C at 21 °C
Rating capacity		For 220V power supply :4( 2)A for fan load, 2(1)A for zone valve
Cycle times		100000
Setpoint range		10-32°C
Display range		0-37°C

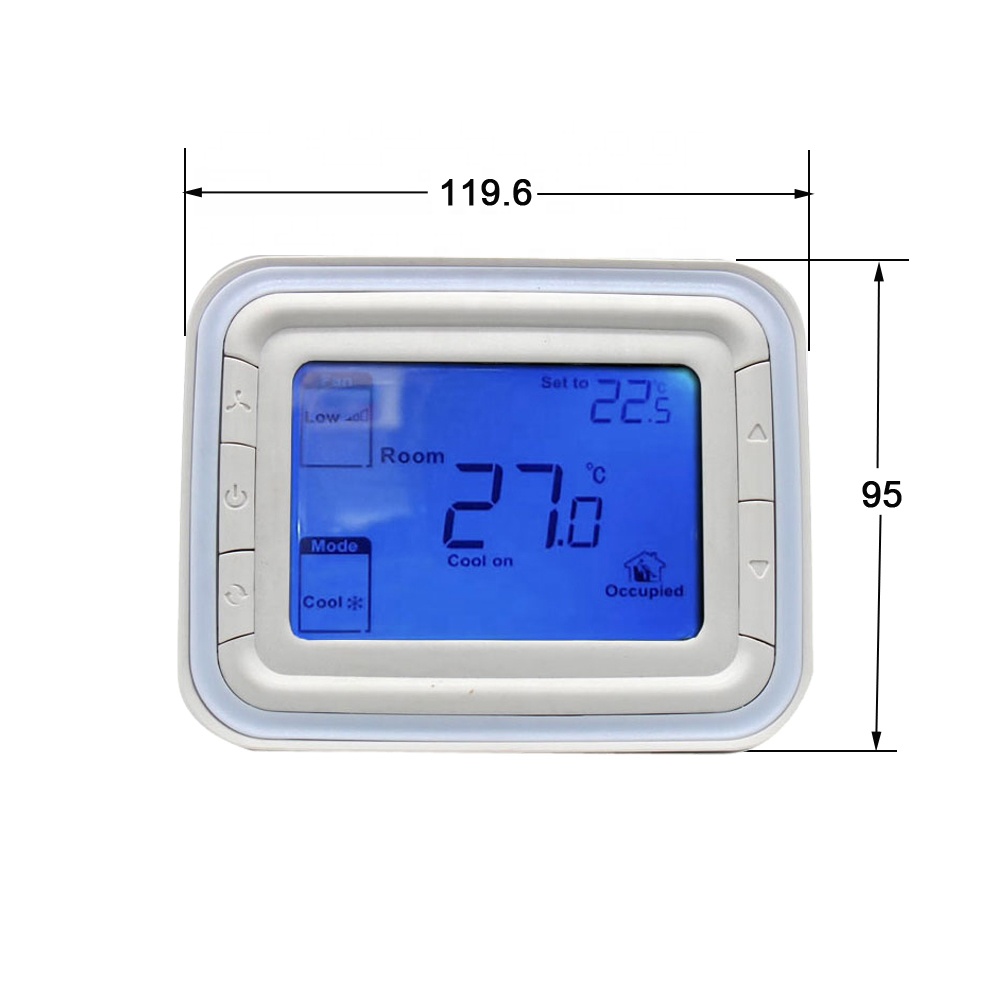

Installation		Installed on 86x86mm junction box or US2X4 inch
Protection Class		P20
Environmental		Operation temperature-18~49°C
Conditions		Shipping temperature -35~65°C, Relative humidity 5-90%
