220vac Touch LCD Smart Radiator Thermostat
--WiFi communicating thermostat
--EU standard junction box installation: 86*86mm
--Heating only
--Electric Underfloor Heating, 16A, L+N line voltage output terminals
--Housing Material: PC +ABS ( Fireproof)
--Operating Buttons: Operating Buttons
Hotowell Heating Thermostat HTW-HT03 Series.pdf
>> General
HTW-HT03 series Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.WiFi communicating heating thermostat is new smart device for room temperature control. In floor heating system, digital heating thermostat is the key point for people to control it and maintain an ideal room temperature. How terrible it is if install a low-quality floor heating system! we chose low-priced and inferior products that are not guaranteed, and the accessories continue to fail, so we can only replace them endlessly; inferior manifolds and pipes cannot withstand high pressure and high temperature, and the floor heating system is prone to pipe bursts and water leakage The situation, turning your home into a "fish pond" will not only cause damage to your own furniture and walls, but also affect your neighbors. Most owners don’t know much about the underfloor heating industry. There are some "floor heating guerrillas" in the underfloor heating industry. After receiving the project at a low price, these construction teams temporarily piece together personnel. There is no quality assurance for the construction. It is also difficult to find the person in charge. Floor heating design needs to calculate the heat dissipation of each room and the water flow rate of each pipeline. Standardized construction technology, high-quality materials, professional design team, and reliable after-sales service are the keys to judging the strength of an enterprise!
>> Features
* 17 Mainstreaming Languages synchronize in APP(English, Spanish, Russian, Hungarian,Turkey, Hebrew, German, Italian, Japanese, French,Poland, simplified Chinese, traditional Chinese, Holland, Portuguese, Vietnamese, Arabic, Korean)
*Snap-In Easy Installation
*Fit for EU & Standard Junction Electric Box
*Easily Work with Amazon alexa, Google Assitant, IFTTT.
*Group Control in 1 App
*Fashion Sense of Science and Technology
>> Specification
| Power Supply | 95~240Vac, 50/60H | Sensor | NTC3950, 10k |
| Current Load | 3A(-3A, -NV application),16A(-16A application) | Temperature Accuracy | ±0.5°C |
| Set-Point temperature Range | 5~35°C | Storage Temp. | -5 ~ 45 °C |
| Display Temp. Range | 5 ~ 99°C | Power Consumption | < 1.5W |
| Housing Material | PC +ABS ( Fireproof) | Installation Box | EU or Standard Electric Box |
| Wires on Terminals | Wire 2 x 1.5 mm2 or 1 x 2.5 mm2 | Protection Class | IP20 |
>>Wiring Diagram
>> Thermostat Installation
nMake sure the power is OFF! Try turning ON your heating/cooling system by changing the temperature. If you can’t get the system to turn ON in 5 minutes, you’ll know the power is OFF.
nTake off the installation faceplate by grasping and gently pulling, then connect voltage supply/load output/external sensor(if with) wires respectively to appropriate terminals.
nFix the installation plate onto the electric junction box with screws packed in the box.
nFasten the thermostat display part and the installation faceplate through the groove.(Installation process completed)

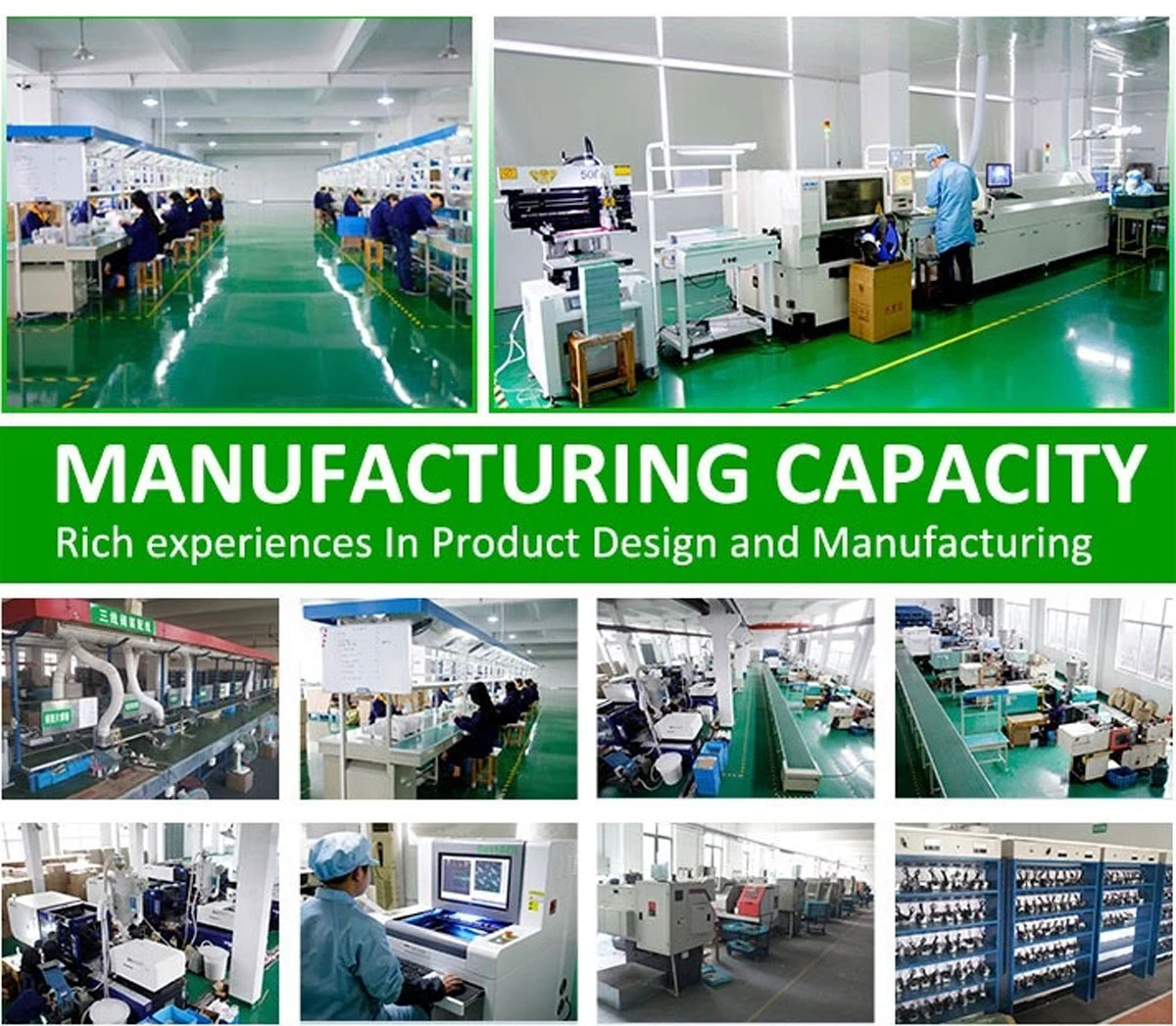

>> Company Profile

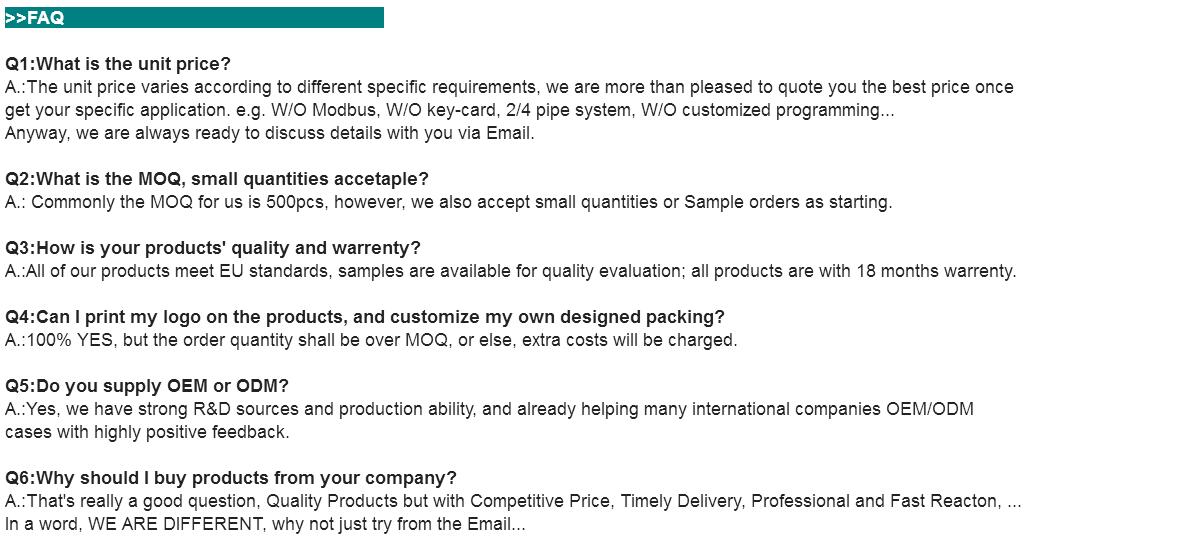

>> FAQs
|
Q1: Do you supply OEM or ODM? |
|
A: Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback. |
|
Q2: Which payments are acceptable? |
|
A: We accept T/T,Paypal,Western Union. |
|
Q3: How fast can I get the quotation? |
|
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us +86 0592 6538262 or tell us in your email so that we will regard your inquiry priority. |
|
Q4: What’s your production time? |
|
A:Usually production time is 15 to 20 days for quantity below 5,000pcs.
|
