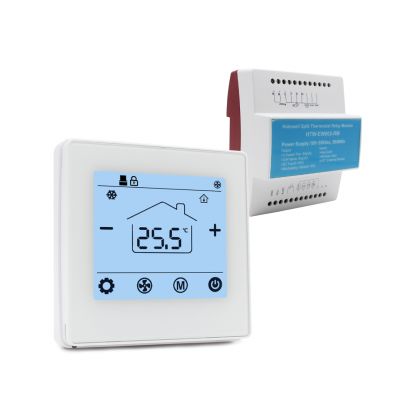

Central Air Conditioning Smart House Thermostat
Central Air Conditioning Smart House Thermostat Central Air Conditioning Smart House Thermostat Central Air Conditioning Smart House Thermostat Central Air Conditioning Smart House Thermostat Central Air Conditioning Smart House Thermostat

Central Air Conditioning Smart House Thermostat

Product ID : HTW-EB-FC
Product Tags :
Product Attributes :

Smart House Thermostat

-WiFi connection, Tuya smartlife App control

-Heating/cooling Fancoil  system

-2 pipe or 4 pipe

-Negative LCD Display

-Touch screen

- 3 speed fan control

-On/Off motorized valve control



Product Description

Central Air Conditioning Smart House Thermostat

>> General
HTW-EB-FC series fan coil thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

>> Ordering Guide

HTW-EB-FC- **

-2
2 pipe(tube) system -W Wi-Fi Connection
-4
4 pipe(tube) system -24 24vac power supply
e.g. HTW-EB-FC-2W refers to application: 2 pipe(tube) system, 3 fan speed + 1 H/C valve, with WiFi Connection.


>> Specifications

Power Supply 95~240Vac, 50/60Hz Sensor NTC3950, 10K
Current Load Fan Relay 5A(-3A-inductive) Temperature Accuracy ±0.5°C
Valve Relay 3A(1A -inductive) Set-Point Range 5~35°C
Storage Temp. -5 ~ 45 °C Display Temp. Range 5 ~ 99°C
Power Consumption < 1.5W Timing Error < 1%
Housing Material PC +ABS ( Fireproof) Installation Box EU or Standard Electric Box
Protection Class IP20 Operating Buttons Capacitive Touch Buttons



>> Installation

* Make sure the power is OFF! Try turning ON your heating/cooling system by changing the temperature. If you can't get the system to turn ON in 5 minutes, you'll know the power is OFF.

* Take off the installation faceplate by grasping and gently pulling, then connect voltage supply/load output/external sensor(if with) wires respectively to appropriate terminals.
* Fix the installation plate onto the electric junction box with screws packed in the box.
* Fasten the thermostat display part and the installation faceplate through the groove.(Installation process completed)

>> Company Profile

>> FAQs

Q1: Do you supply OEM or ODM?

A: Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.

Q2: Which payments are acceptable?

A: We accept T/T,Paypal,Western Union.

Q3: How fast can I get the quotation?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us +86 0592 6538262 or tell us in your email so that we will regard your inquiry priority.

Q4: What’s your production time?

A:Usually production time is 15 to 20 days for quantity below 1,000pcs.
