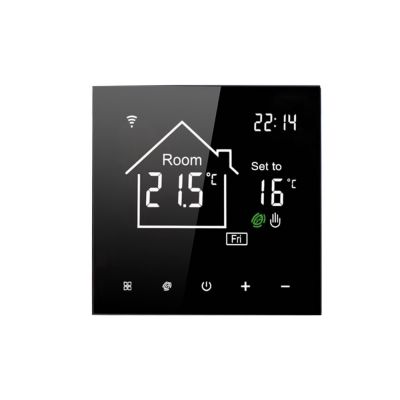

Smart Heating Thermostat Tuya Hotel Thermostat Floor Heating System
Product ID : HTW-HT09B
Product Tags :
Heating ThermostatRoom thermostatThermostatWifi thermostatsmart thermostatunderfloor heating thermostat
Product Attributes :
HTW-WF09B series smart wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.
Product Description
Smart Heating Thermostat Tuya Hotel Thermostat Floor Heating System
>> General
HTW-WF09B series smart wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.
>> Features
>> Features
--VA Screen
--Fit for EU & Standard Junction 86×86 Box
--WiFi frequency:2.400~2.483GHZ
-- WiFi Communication Protocol: IP/TCP, MQTT
--Anti-frozen function
>> Specification
| Power Supply | 100~240Vac, 50/60Hz | Sensor | NTC3950, 10K |
| Current Load | 3A/250VAC | Temperature Accuracy | ±1°C |
| 16A/250VAC | Set-Point Range | 5~95°C | |
| Storage Temp. | 5 ~ 45 °C | Product Size | 86*86*40MM |
| Power Consumption | < 1W | Timing Error | < 1% |
| Housing Material | PC +ABS ( Fireproof) | Installation Box | EU or Standard Electric Box |
| Wires on Terminals | Wire 2 x 1.5 mm2 or 1 x 2.5 mm2 | ||
| Protection Class | IP20 | Operating Buttons | Capacitive Touch Buttons |
>> Dimensions and Display
