Digital Smart Bacnet Thermostat for Controlling Center Air Conditioner
This HTW-31-F10BNT digital thermostat is designed to controls the fans, valves, dampers or electric heater in fan coil units and heating applications in industrial, commercial or residential environment.
Digital Smart Bacnet Thermostat for Controlling Center Air Conditioner
LCD Digital RS485 BACnet Modbus Room Thermostat for Fan Coil Unit
>> General
This HTW-31-F10BNT digital thermostat is designed to controls the fans, valves, dampers or electric heater in fan coil units and heating applications in industrial, commercial or residential environment.
>> Feature
• Attractive modern styling
• Adjustable heating/cooling/ventilating mode control
• Adjustable manual 3-speed and automatic fan speed control
• 4pipe system
• Bacnet
• Keycard(Optional)
• External sensor(Optional)
>> Specification
|
Power Supply - 230V 50/60Hz |
Backlight - White |
|
Power Consumption - 1.5A |
Sensor - NTC 10K, 3950ohms at 25℃ |
|
Set Point Range - 5~80℃ |
Accuracy - + 1℃ (step control by +0.5℃) |
|
Ambient - 0~50℃ |
Protection Class - IP30 |
|
Relative Humidity - 85% |
Housing - ABS to UL94-5 fire retardantplastic |

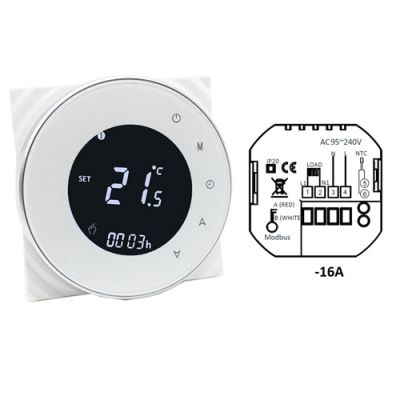

>> Tripical Wiring
>> Display and Keys
