Home Products Hotowell Products High Quality Smart WIFI thermostat Window Card input FCU Thermostat to Control the Room Temperature
High Quality Smart WIFI thermostat Window Card input FCU Thermostat to Control the Room Temperature
High Quality Smart WIFI thermostat Window Card input FCU Thermostat to Control the Room Temperature High Quality Smart WIFI thermostat Window Card input FCU Thermostat to Control the Room Temperature High Quality Smart WIFI thermostat Window Card input FCU Thermostat to Control the Room Temperature High Quality Smart WIFI thermostat Window Card input FCU Thermostat to Control the Room Temperature High Quality Smart WIFI thermostat Window Card input FCU Thermostat to Control the Room Temperature

High Quality Smart WIFI thermostat Window Card input FCU Thermostat to Control the Room Temperature

Product ID : HTW-FT03
Product Attributes :

HTW-FT03 series Smart Wifi fan coil thermostat is widely used for central fan coil unit for heating and cooling in applications like in Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

Product Description



Product Description



>> General

HTW-FT03 series Smart Wifi fan coil thermostat is widely used for central fan coil unit for heating and cooling in applications like in Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

>> Ordering Guide

HTW-FT03--**
-2
2 pipe(tube) system
-W
Window Card input
Smart Wifi Fan Coil Thermostat
-4
4 pipe(tube) system
-T
Clock
-M
Modulating output
-P
Programmable
-N
Modbus RTU communication
-E
External Temperature Sensor
-K
Key Card occupancy input
-24v
Power Supply with 24Vac
e.g. HTW-WF01-FC-2KP refers to application: 2 pipe(tube) system, 3 fan speed + 1 H/C valve, with key card and weekly programmable

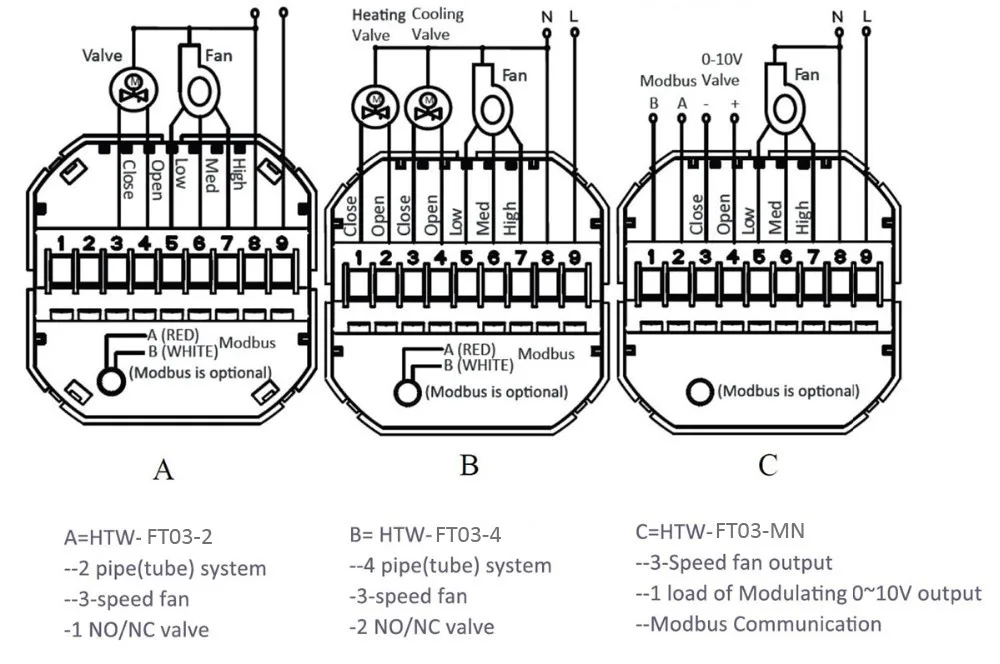

>> Tripical Wiring

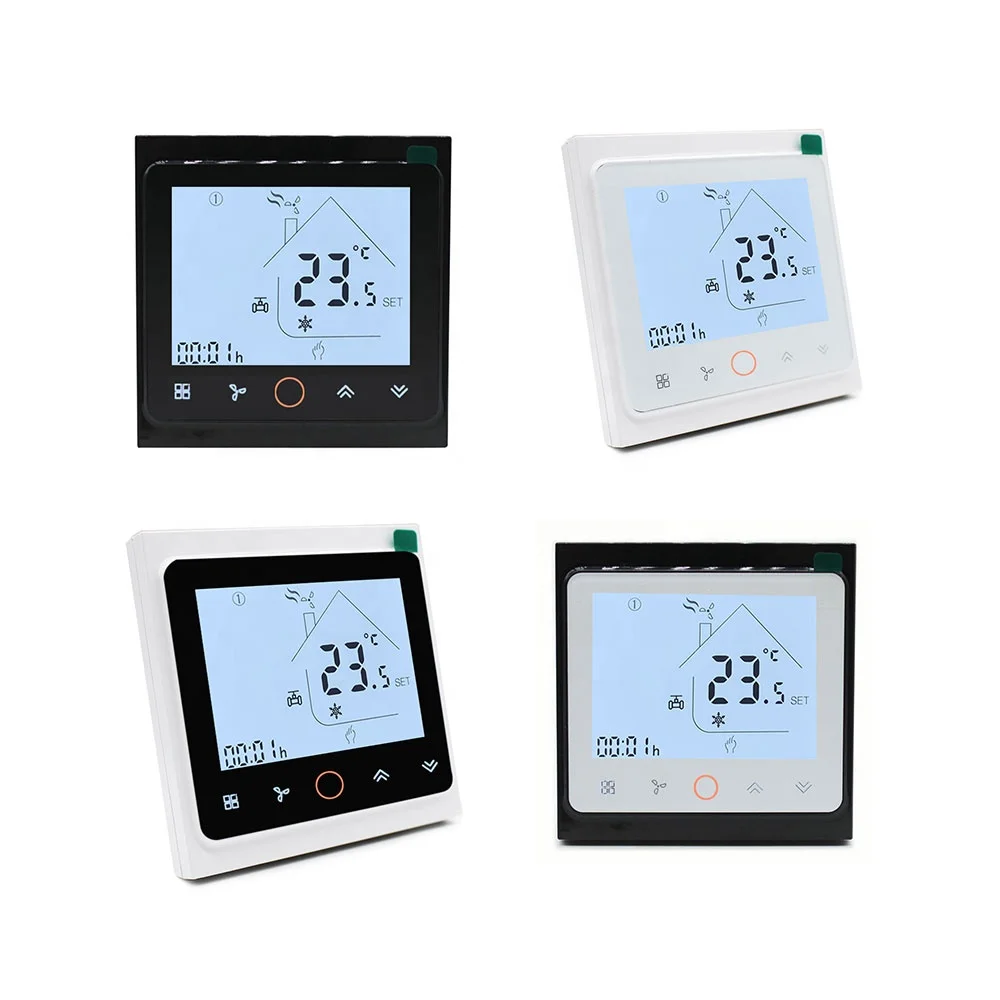

Detailed Images






Company Profile

Hotowell is a high-tech company with rich experiences in product design and manufacturing, knowledge about global HVAC standards, and highly-trained team. Our objective is to produce and design user-friendly HVAC products on the highest technical level for improving people's experience in temperature/environment comfort.

Hotowell has been cooperating with many international companies and HVAC projects through Europe, American, Asia, Oceania. Our product range contains:
Thermostats, Motorized Zone Valves, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc. covering industrial, commercial and residential temperature controls.
