Smart home heating thermostat wifi programmable heating thermostat for underfloor heating

Smart home heating thermostat wifi programmable heating thermostat for underfloor heating

Product ID : HTW-WF01

Product Tags : Heating Thermostat boiler thermostat

Product Attributes :

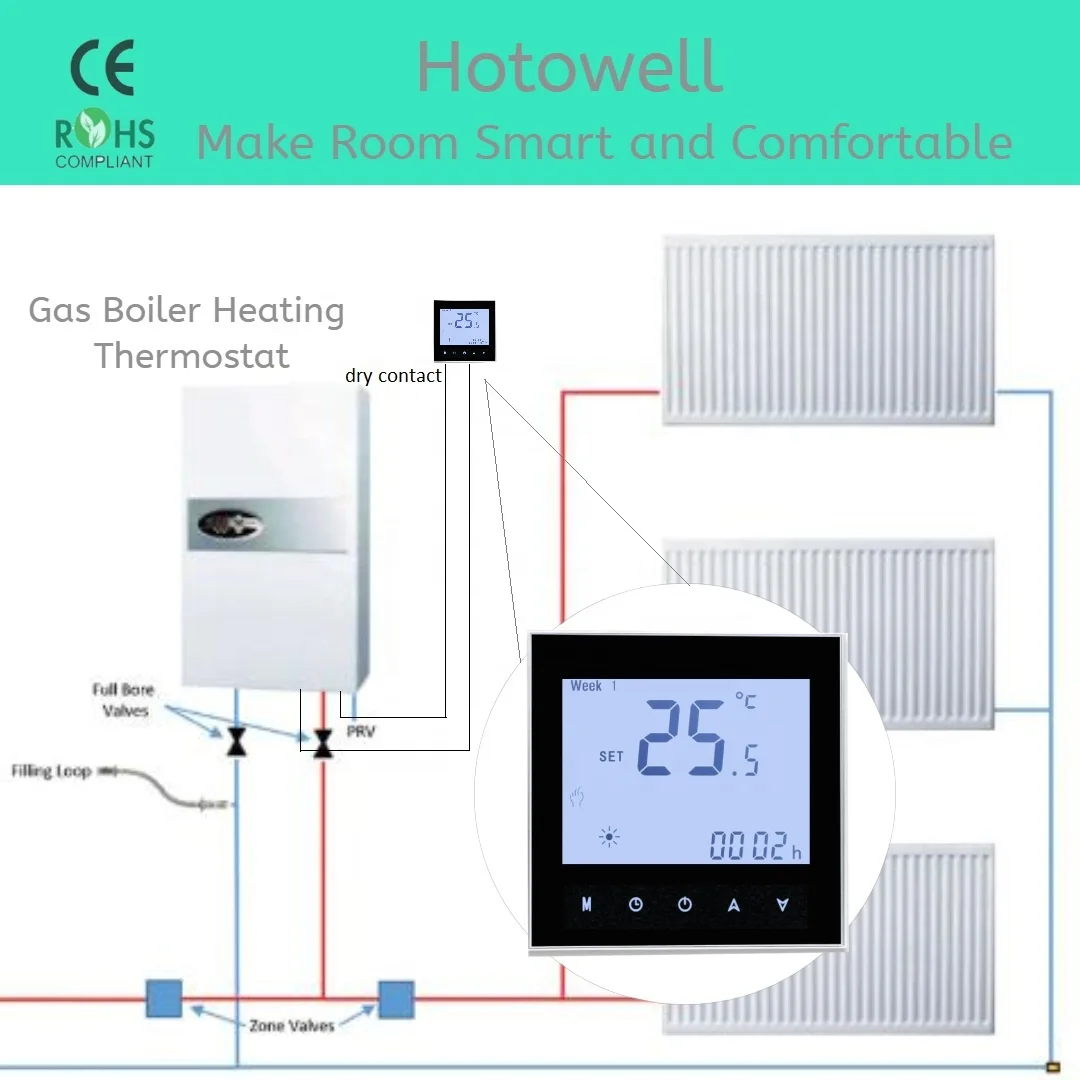

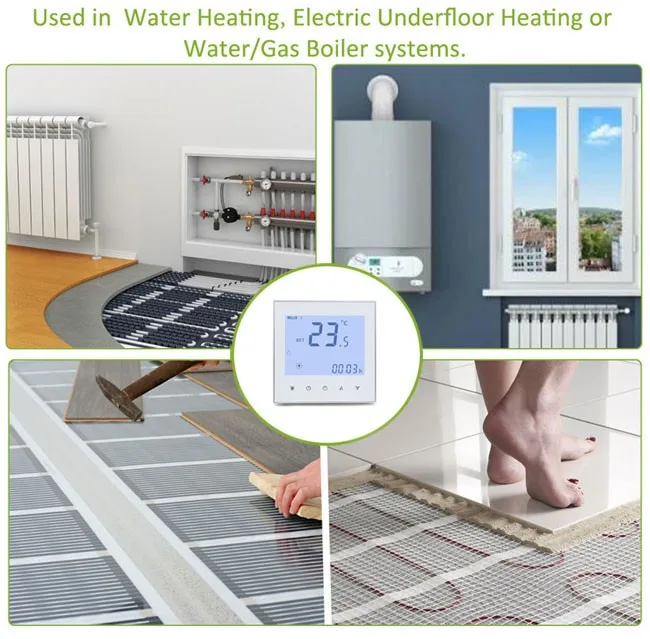

HTW-WF01 series Tuya Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.

Product Description


Smart home heating thermostat wifi programmable heating thermostat for underfloor heating

>> General
Product Description

Smart home heating thermostat wifi programmable heating thermostat for underfloor heating

>> General
HTW-WF01 series Tuya Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.

>> Ordering Guide

HTW-WF01- **

Code

Application

-3A

Water Heating, 3A, NC+NO+Com output terminals

-16A

Electric Underfloor Heating, 16A, L+N line voltage output terminals

-NV

Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals

e.g. HTW-WF01-3A refers to application: Water Floor Heating, 3A, NC+NO+Com output terminals

>> Specifications

Power Supply

95~240Vac, 50/60Hz

Sensor

NTC3950, 10K

Current Load

Fan Relay 5A(-3A-inductive)

Temperature Accuracy

±0.5°C or ±1℉

Valve Relay 3A(1A -inductive)

Set-Point Range

5~35°C

Storage Temp.

-5 ~ 45 °C

Display Temp. Range

5 ~ 99°C

Power Consumption

< 1.5W

Timing Error

< 1%

Housing Material

PC +ABS ( Fireproof)

Installation Box

EU or Standard Electric Box

Protection Class

IP20

Operating Buttons

Capacitive Touch Buttons

Wires on Terminals

Wire 2 x 1.5 mm2 or 1 x 2.5 mm2

Company Profile

Hotowell has been cooperating with many international companies and HVAC projects through Europe, American, Asia, Oceania. Our product range contains:
Thermostats, Motorized Zone Valves, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc. covering industrial, commercial and residential temperature controls.
Our Service
Customer Service
1. OEM & ODM service offered2. sample's fee can be refunded after order reached 2000pcs

Warranty
1. Test the products one by one before delivery
2. We guarantee 18months from the date you get the goods,excludes damaged by human
3. If you can find out the problem and fix it easily, we will offer several components for service
FAQ


>> Ordering Guide

HTW-WF01- **
	Code	Application
	-3A	Water Heating, 3A, NC+NO+Com output terminals
	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals
	-NV	Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-WF01-3A refers to application: Water Floor Heating, 3A, NC+NO+Com output terminals

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(-3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A -inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
