Unit Weight: 0.77 KG/PC;
20 PCS/CTN;
Gross Weight: 15.8KG;
Paper box packing;
Box dimension: 39.5*30*26CM
Delivery time : Shipped in 15-20 days after payment
Categories
New product

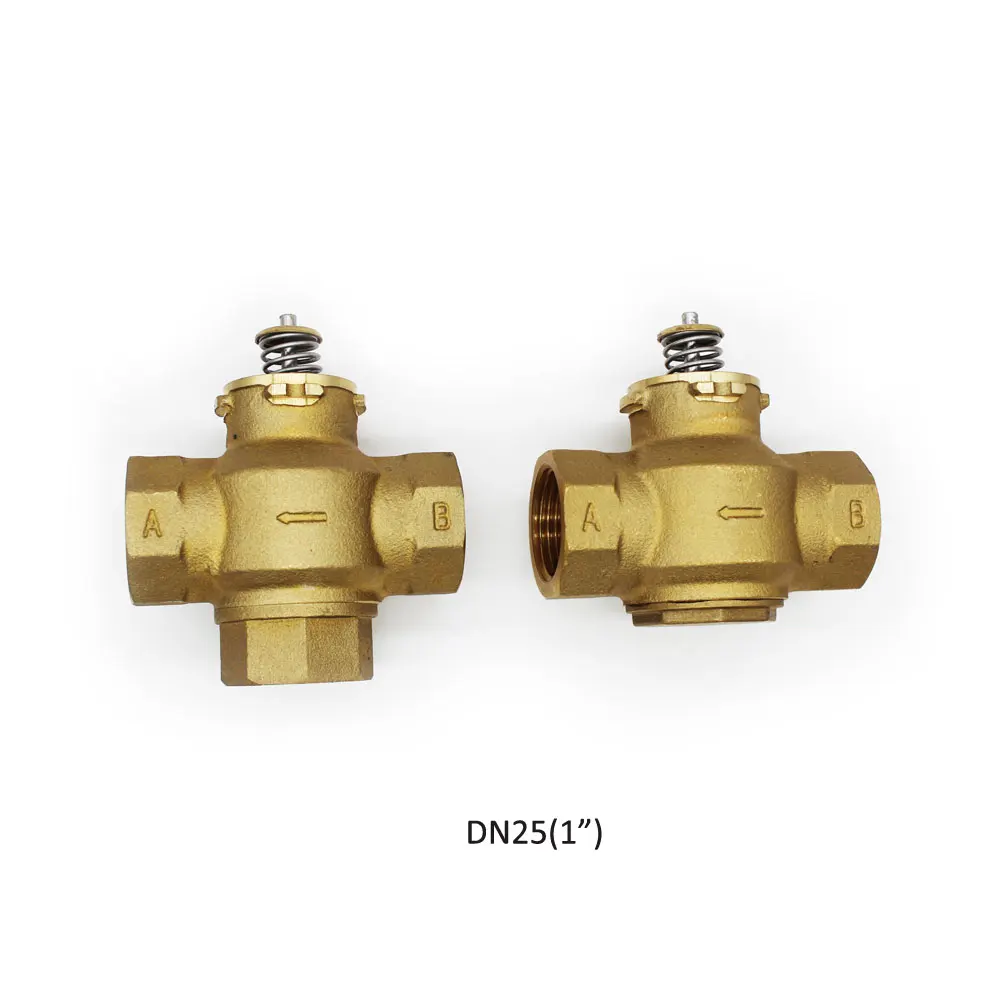

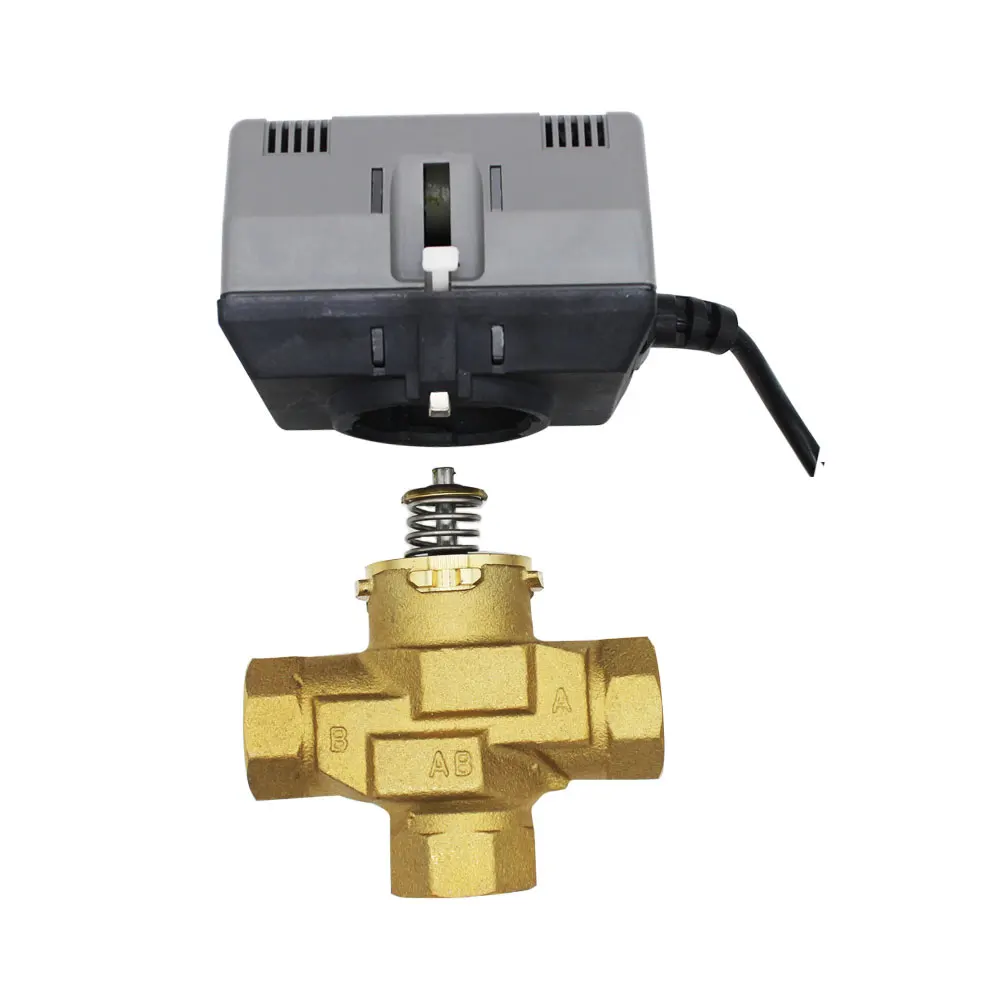

Hotowell SPDT FCU Motorized Valve NPT thread Motorized valve
Product ID : HTW-V61
Product Attributes :

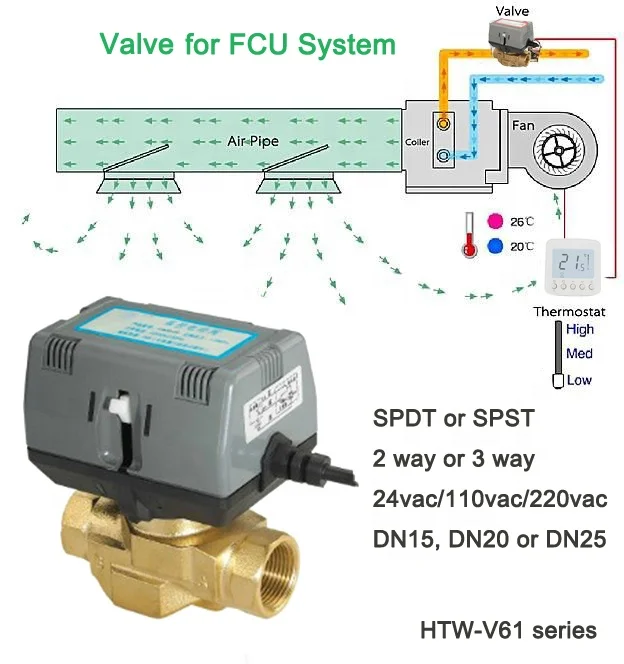

HTW-V61 series motorized valves(3-wire) are used to control the flow of hot water, chill water in heating, cooling or air-conditioning applications, so as to control room temperature indirectly. It consists of Actuator and Valve Body. The room temperature could be controlled in the set-point through turn-on or turn-off of valve.
Product Description
Product Description
>> General
HTW-V61 series motorized valves(3-wire) are used to control the flow of hot water, chill water in heating, cooling or air-conditioning applications, so as to control room temperature indirectly. It consists of Actuator and Valve Body. The room temperature could be controlled in the set-point through turn-on or turn-off of valve.
>> Ordering Guide
>> TECHNICAL PARAMETERS
• Consumption 5W
•Drive style Bi-direction reversible motor drive
•Cooperate time with thermostat the valve open within 6s at 60HZ
•N.W.(Kg)-Actuator 0.35
•Medium Cool/hot water
•Liquid temperature 1~95°C
•Pressure(MPa) 1.6
•Environment temperature 0~65°C the max relative humidity, non-condensing
•Storage temperature -20~65°C the max relative humidity, non-condensing

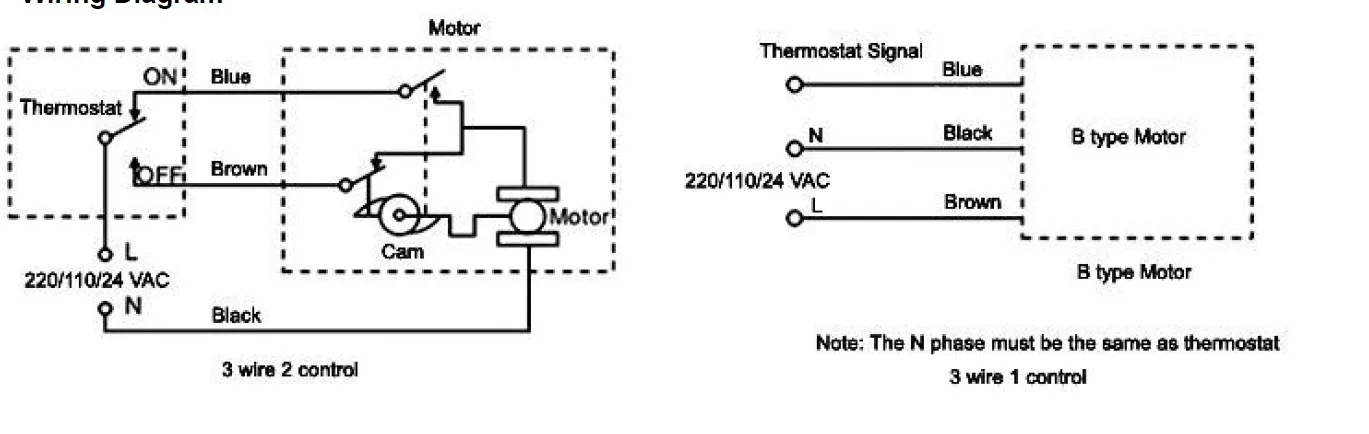

>>Wiring Diagram
Factory Show
Packing & Shipping
Packing details
Shipping Method
We usually ship by
1.Sea shipping ：25-30 days
2. Air shipping ：5-7 days
3. Express delivery(DHL, UPS, FedEx, TNT etc.）：4-7days
