ECB6 3A Water Heating Underfloor Heating Controller Thermostat For Room
Product ID : HTW-ECB6-3A1
Product Attributes :
HTW-ECB6 series Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.
Product Description
Product Description
ECB6 3A Water Heating Underfloor Heating Controller Thermostat For Room
>> General
HTW-ECB6 series Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.

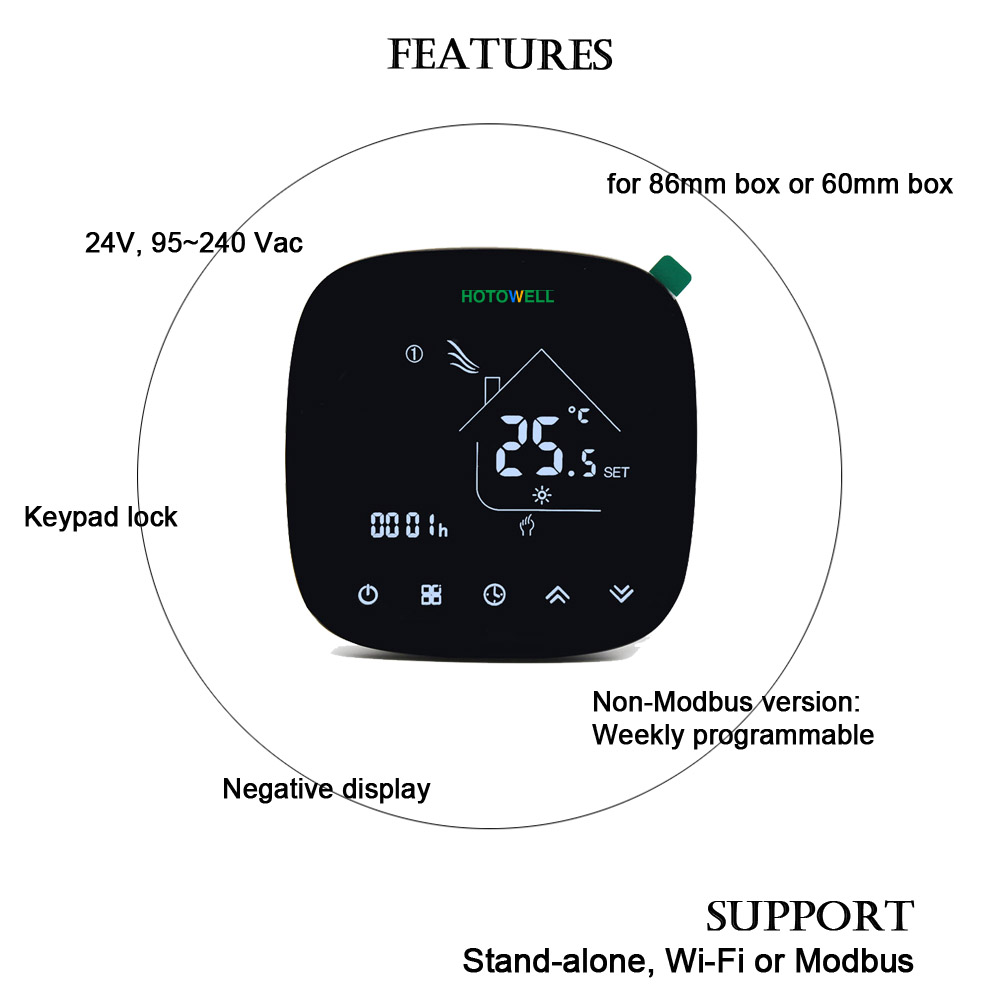

>> Features
>> Technical Parameter
| HTW-ECB6-** | |
| Power Supply | 95~240Vac, 50/60Hz |
| Current Load | 3A(-3A, -NV application) ; 16A(-16A application) |
| Storage Temp. | -5 ~ 45 °C |
| Power Consumption | < 1.5W |
| Housing Material | PC +ABS ( Fireproof) |
| Wires on Terminals | Wire 2 x 1.5 mm2 or 1 x 2.5 mm2 |
| Protection Class | IP20 |
| Sensor | NTC3950, 10K |
| Temperature Accuracy | ±0.5°C or ±1℉ |
| Set-Point Range | 5~35°C |
| Display Temp. Range | 5 ~ 99°C |
| Timing Error | < 1% |
|
Installation Box
|
EU or Standard Electric Box |
| Operating Buttons | Capacitive Touch Buttons |

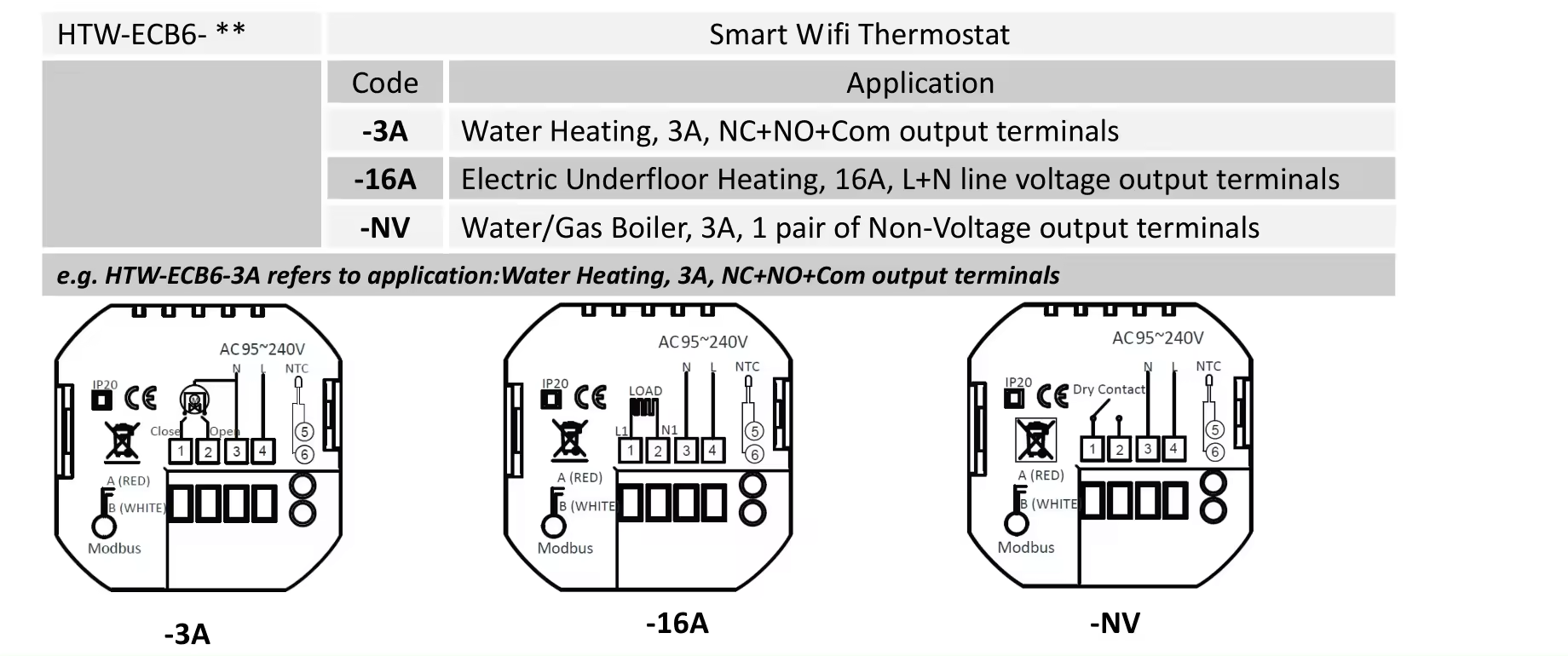

>>Typical wiring disgram
Details

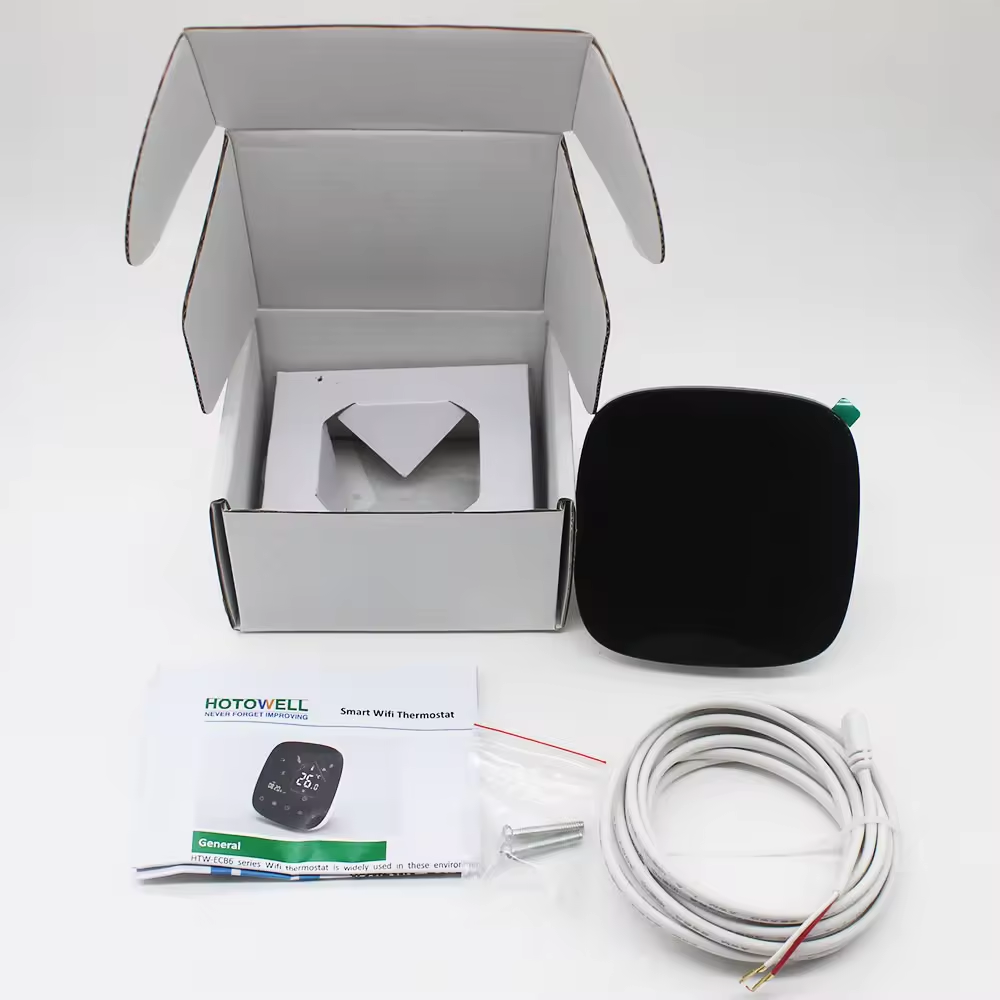

Packing & Delivery
