220Vac Digital 7 days programmable Thermostat with external sensor for Water/ Electric heating system
220Vac Digital 7 days programmable Thermostat with external sensor for Water/ Electric heating system 220Vac Digital 7 days programmable Thermostat with external sensor for Water/ Electric heating system 220Vac Digital 7 days programmable Thermostat with external sensor for Water/ Electric heating system 220Vac Digital 7 days programmable Thermostat with external sensor for Water/ Electric heating system 220Vac Digital 7 days programmable Thermostat with external sensor for Water/ Electric heating system

220Vac Digital 7 days programmable Thermostat with external sensor for Water/ Electric heating system

Product ID : HTW-WF11
Product Attributes :

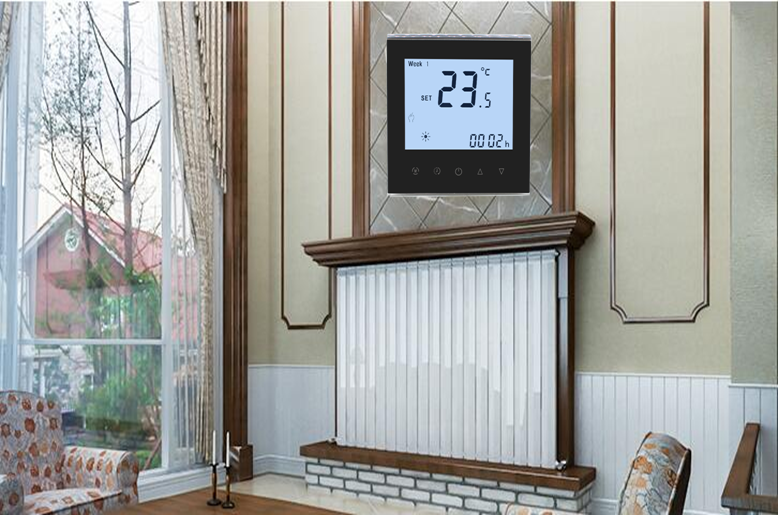

HTW-WF11 series wifi thermostat is widely used in these environment like homes,Residential buildings,schools hotels and offices to main an idea room temperature purpose

Product Description
Product Description
220Vac Digital 7 days programmable Thermostat with external sensor for Water/ Electric heating system

>> Ordering Guide

HTW-WF11-FC-**
-2
2 pipe(tube) system
FCU Room Thermostat
-4
4 pipe(tube) system
-M
0~10V Modulating Valve Output
-N
RS485 Modbus RTU communication
-K
Key Card occupancy input
-W
WiFi Connection
-T
Real Time Clock
-P
Programmable
-E
External Temperature Sensor
-24v
Power Supply with 24Vac
e.g. HTW-WF11-FC-2KP refers to application: 2 pipe(tube) system, 3 fan speed + 1 H/C valve, with key card and weekly programmable

>> Specifications

Power Supply
95~240Vac, 50/60Hz
Sensor
NTC3950, 10K
Current Load
Fan Relay 5A(3A-inductive)
Temperature Accuracy
±0.5°C or ±1℉
Valve Relay 3A(1A-inductive)
Set-Point Range
5~35°C
Storage Temp.
-5 ~ 45 °C
Display Temp. Range
5 ~ 99°C
Power Consumption
< 1.5W
Timing Error
< 1%
Housing Material
PC +ABS ( Fireproof)
Installation Box
EU or Standard Electric Box
Wires on Terminals
Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class
IP20
Operating Buttons
Capacitive Touch Buttons
Details Images
Company Profile
Packing & Shipping
Packing details

Unit Weight: 0.25KG/PC;
50 PCS/CTN;
Gross Weight: 13.5KG;
Paper box packing;
Box dimension: 52*24*33CM
Delivery time : Shipped in 15-20 days after payment
