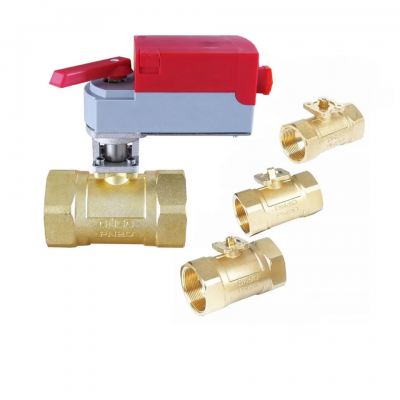

Htw-71-18b5 Motorized Ball Valves Energy Saving Electric Actuator Valve
Product ID : Htw-71-18b5
Product Tags :
Motorized Ball Valve
Product Attributes :
HTW-71-18B5 Series Motorized Ball Valves are assembled with a force of actuator from 8Nm,16Nm,20Nm, to 24Nm with valve body sized from G1(DN25) to G2(DN50). With power supply optional:AC24±10%, 50/60Hz or AC220±10%, 50/60Hz, whose control signal can be customized as ON/OFF, 0(2)~10VDC or 4~20mA, with or without non-voltage feedback contact.
They are widely used in Heating, Air-Conditioning, Refrigeration, and Building Auto-Control system. With their precisely adjusting of the medium flow rate, this series ball valves accordingly control temperature, humidity, pressure for an Energy-Saving purpose.
Product Description
HTW-71-18B5 Motorized Ball Valves Energy Saving Electric Actuator Valve
>> General
HTW-71-18B5 Series Motorized Ball Valves are assembled with a force of actuator from 8Nm,16Nm,20Nm, to 24Nm with valve body sized from G1(DN25) to G2(DN50). With power supply optional:AC24±10%, 50/60Hz or AC220±10%, 50/60Hz, whose control signal can be customized as ON/OFF, 0(2)~10VDC or 4~20mA, with or without non-voltage feedback contact.
They are widely used in Heating, Air-Conditioning, Refrigeration, and Building Auto-Control system. With their precisely adjusting of the medium flow rate, this series ball valves accordingly control temperature, humidity, pressure for an Energy-Saving purpose.
They are widely used in Heating, Air-Conditioning, Refrigeration, and Building Auto-Control system. With their precisely adjusting of the medium flow rate, this series ball valves accordingly control temperature, humidity, pressure for an Energy-Saving purpose.
>> Actuator Features
1.Equal percentage flow, valve body overall design, zero leaking;
2.600Kpa close off pressure differential, PN1.6 valve pressure;
3.4 directions actuator installed in, easy to wire and maintenance;
4.Built-In two floating auxiliary switches, equipped with auto power shut as properly positioned ;
5.Actuator easily mounted/dismounted after pipe mounted completely;
6.Eliminate reverse flow slam and water hammer.
2.600Kpa close off pressure differential, PN1.6 valve pressure;
3.4 directions actuator installed in, easy to wire and maintenance;
4.Built-In two floating auxiliary switches, equipped with auto power shut as properly positioned ;
5.Actuator easily mounted/dismounted after pipe mounted completely;
6.Eliminate reverse flow slam and water hammer.
>> Valve Body Features
Valve body size:G1(DN25)-G2(DN50);
Connection: G/BSP thread;
Medium: cold or hot water or 60% glycol;
Control Signal: On/Off or 0(2)~10VDC or 4~20mA;
Voltage Supply:220Vac±10%, 24Vac±10%;
Power Consumption:6W;
Output Torque: 8Nm,16Nm,20Nm or 24Nm
Open/Close Running time:40~80S;
Media temperature range: 1°C~95°C
Ambient temperature: 0°C~60°C
Max. Pressure of valve body:2.0Mpa
Connection: G/BSP thread;
Medium: cold or hot water or 60% glycol;
Control Signal: On/Off or 0(2)~10VDC or 4~20mA;
Voltage Supply:220Vac±10%, 24Vac±10%;
Power Consumption:6W;
Output Torque: 8Nm,16Nm,20Nm or 24Nm
Open/Close Running time:40~80S;
Media temperature range: 1°C~95°C
Ambient temperature: 0°C~60°C
Max. Pressure of valve body:2.0Mpa
| Model | Valve | Thread Size |
Actuator Torgue(Nm) |
Work Medium |
Media Temp. |
Ambient Temp. |
Pressure (MPa) |
Power Supply |
| HTW-71-18B5 -225 |
Two-way | G1 | 8Nm/10Nm | Chilling water /Hot water /60% Glycol |
1-95ºC | 0-60ºC | 2.0 | 24Vac 220Vac 50/60HZ |
| HTW-71-18B5 -325 |
Three-way | G1 | 8Nm/10Nm | |||||
| HTW-71-18B5 -232 |
Two-way | G1.1/4 | 16Nm | |||||
| HTW-71-18B5 -332 |
Three-way | G1.1/4 | 16Nm | |||||
| HTW-71-18B5 -240 |
Two-way | G1.1/2 | 16Nm | |||||
| HTW-71-18B5 -340 |
Three-way | G1.1/2 | 16Nm | |||||
| HTW-71-18B5 -250 |
Two-way | G2 | 16/24Nm | |||||
| HTW-71-18B5 -350 |
Three-way | G2 | 16/24Nm |
