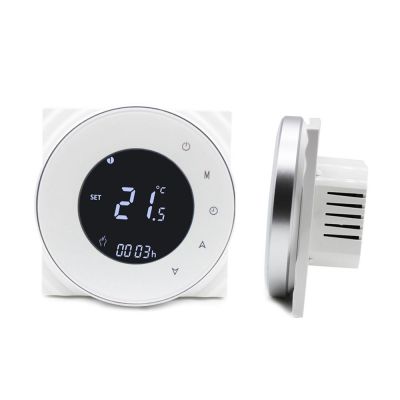

Gas Boiler or floor Heating system smart Thermostat for Household smart Control Living Room 110V-220V

Product ID : HTW-WF05

Product Tags : Heating Thermostat Room thermostat Wifi thermostat boiler thermostat smart thermostat underfloor heating thermostat water heating thermostat

Product Attributes :

HTW-WF05 is suitable for electric heating, water heating, wall-hung boilers and boiler-temperature control systems.It can be used in smart controlling hourses, shopping malls, and industrial places.

Product Description

Gas Boiler or floor Heating system smart Thermostat for Household smart Control Living Room 110V-220V

>> General

HTW-WF05 is suitable for electric heating, water heating, wall-hung boilers and boiler-temperature control systems.It can be used in smart controlling hourses, shopping malls, and industrial places.

>> Ordering Guide

HTW-WF03- **
	Code	Application
	-3A	Water Heating, 3A, NC+NO+Com output terminals
	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals
	-NV	Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-WF05-3A refers to application: Water Floor Heating, 3A, NC+NO+Com output terminals

 >> Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(-3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A -inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
