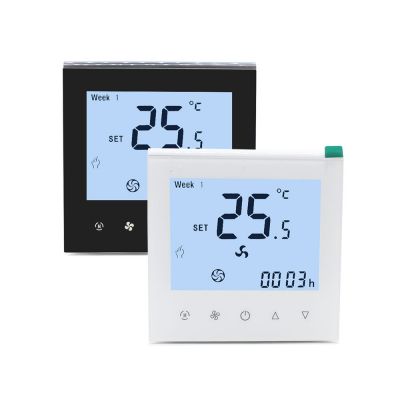

Modbus Thermostat Control Fan Coil System Keycard Funtion White Backlight HTW-WF11-FC

Product ID : HTW-WF11-FC-MKN

Product Tags : Fan coil thermostat

Product Attributes :

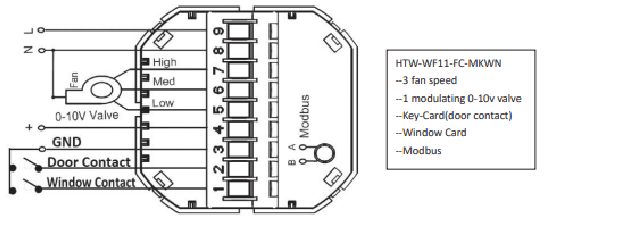

HTW-WF11-FC-MKN series fan coil thermostat is designed to control 2 pipe Fan Coil Unit system, withoutputs of 3 fan speed and 1modulating 0-10V valve, with keycard, with Modbuscommunication. It is widely used in these environments likeHomes, Residential buildings, Schools, Hotels,Hospitals, Offices and etc. to main an ideal room temperature purpose.

Product Description

 Modbus Thermostat Control Fan Coil System Keycard Funtion White Backlight HTW-WF11-FC

>>General HTW-WF11-FC-MKN series fan coil thermostat is designed to control 2 pipe Fan Coil Unit system, withoutputs of 3 fan speed and 1modulating 0-10V valve, with keycard, with Modbuscommunication. It is widely used in these environments likeHomes, Residential buildings, Schools, Hotels,Hospitals, Offices and etc. to main an ideal room temperature purpose.

>>Features

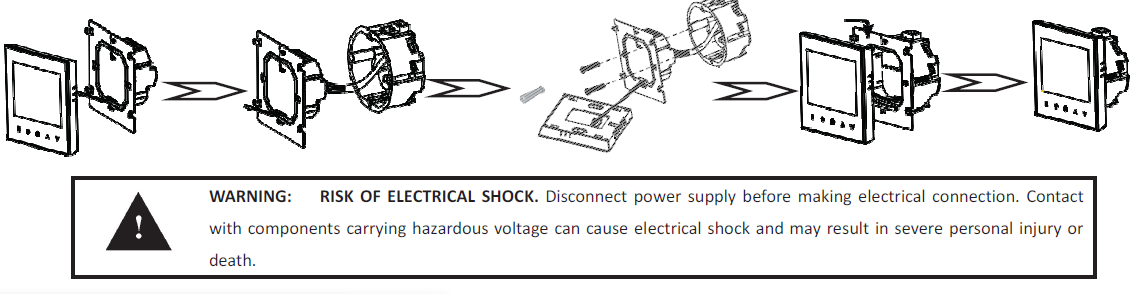

* Snap-In Easy Installation
* Fit for EU & Standard Junction Electric Box
* Fashion Scense of Science and Technology
* Weekly Programmable
* Cooling only/Heating or Cooling mode

Power supply	95~240Vac,50/60Hz	Sensor	NT3950,10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5℃ or ±1F
Storage Temp.	-5~45℃	Display Temp.Range	5~99℃
Power Consumption	<1.5W	Timing Error	<1%
Housing Material	PC+ABS(Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 21.5 mm² or 12.5 mm²
Protection Class	IP20	Operating Bottons	Capacitive Touch Buttons
