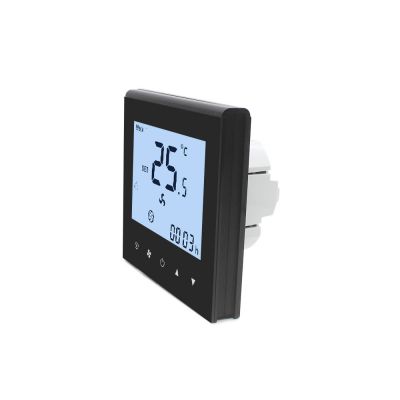

WiFi Gas Boiler Heating Thermostat Smart Room Thermostat for Heating Wired
HT15 series wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.
Product Description
WiFi Gas Boiler Heating Thermostat Smart Room Thermostat for Heating Wired
HT15 series wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.
>> Ordering Guide
|
HTW-HT15- ** |
Smart Wifi Thermostat |
|
|
Code |
Application |
|
|
-3A |
Water Heating, 3A, NC+NO+Com output terminals |
|
|
-16A |
Electric Underfloor Heating, 16A, L+N line voltage output terminals |
|
|
-NV |
Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals |
|
|
e.g. HTW-HT15-3A refers to application:Water Heating, 3A, NC+NO+Com output terminals |
||
>> Specification
| Power Supply | 95~240Vac, 50/60Hz | Sensor | NTC3950, 10K |
| Current Load | 3A(-3A, -NV application) | Temperature Accuracy | ±0.5°C or ±1ºF |
| 16A(-16A application) | Set-Point Range | 5~35°C | |
| Storage Temp. | -5 ~ 45 °C | Display Temp. Range | 5 ~ 99°C |
| Power Consumption | < 1.5W | Timing Error | < 1% |
| Housing Material | PC +ABS ( Fireproof) | Installation Box | EU or Standard Electric Box |
| Wires on Terminals | Wire 2 x 1.5 mm2 or 1 x 2.5 mm2 | ||
| Protection Class | IP20 | Operating Buttons | Capacitive Touch Buttons |
>> Manufacturing
Q1:What is the unit price?
get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
