Hotowell WF11 4 Pipe External Sensor Modbus Heating Cooling Auto Mode Thermostat
HTW-WF11-FC series standalone fan coil thermostat is to control fan coil system, with 3-speed fan and water based valve outputs, which is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc, to main an ideal room temperature purpose.
Product Description
Hotowell WF11 4 Pipe External Sensor Modbus Heating Cooling Auto Mode Thermostat
>> General
HTW-WF11-FC series standalone fan coil thermostat is to control fan coil system, with 3-speed fan and water based valve outputs, which is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc, to main an ideal room temperature purpose.
>> Features
>> Technical Parameter
| HTW-WF11-FC-** | |
| Power Supply | 95~240Vac, 50/60Hz |
| Current Load | 3A(-3A, -NV application); 16A(-16A application) |
| Storage Temp. | -5 ~ 45 °C |
| Power Consumption | < 1.5W |
| Housing Material | PC +ABS ( Fireproof) |
| Wires on Terminals | Wire 2 x 1.5 mm2 or 1 x 2.5 mm2 |
| Protection Class | IP20 |
| Sensor | NTC3950, 10K |
| Temperature Accuracy | ±0.5°C or ±1℉ |
| Set-Point Range | 5~35°C |
| Display Temp. Range | 5 ~ 99°C |
| Timing Error | < 1% |
|
Installation Box
|
EU or Standard Electric Box |
| Operating Buttons | Capacitive Touch Buttons |

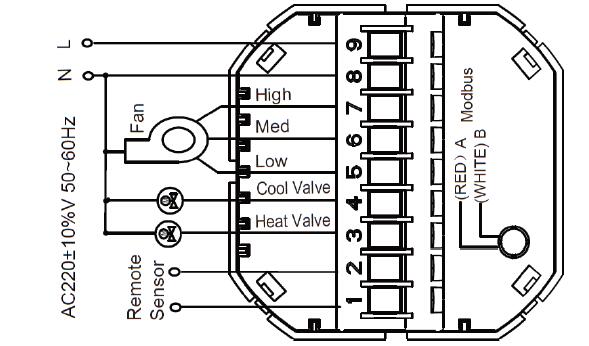

>>Typical wiring disgram
