2022 Hotowell T6861 Halo Heating/Cooling Wire Room Thermostat Digital Room Thermostat Modbus

Product ID : T6861

Product Tags :

Product Attributes :

This digital thermostats are designed for application of 3-speed fan and valves in fan coil system.
Including:
• 2-pipe cool only/heat only/manual changeover and
• 4-pipe manual or automatic changeover
• Ventilation mode
• Manual or automatic 3-speed fan control
• Water valve control
• Fan speed can be selected to automatic or manual
• 3-speed control mode.
• In ventilation mode, fan only support manual speed control.

Product Description

Overview

Essential details

Warranty:: 1 Year

After-sale Service:: Online technical support, Return and Replacement

Project Solution Capability:: total solution for projects

Application:: Office Building

Design Style:: Traditional

Place of Origin:: China

Brand Name:: Neutral

Model Number:: T6861

Power Supply:: 110(+/-10%)VAC,220(+10%,-15%)VAC

Power Consumption:: <1.5W

Temperature Accuracy:: ±0.5°C

Timing Error:: <1%

Storage Temp.:: -5 ~ 45 °C

Control algorithm:: Pl, On/off output

Rating capacity:: For 220V power supply 4( 2)A for fan load, 2(1)A for zone valve

Protection Class:: IP20

type:: FCU Room Thermostat

Cycle times:: 100000

Packaging & delivery

Packaging Details

1pcs/box, 100pcs/carton

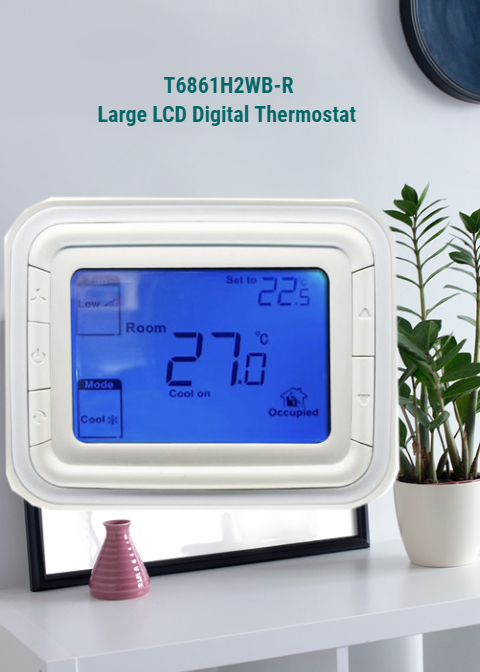

Picture Example:

Lead time:

Quantity(pieces)	1 - 500	501 - 4000	>4000
Lead time (days)	14	25	To be negotiated

Product Description

Hotowell T6861 Halo Heating/Cooling Wire Room Thermostat Digital Room Thermostat

>> General

This digital thermostats are designed for application of 3-speed fan and valves in fan coil system.
Including:
• 2-pipe cool only/heat only/manual changeover and
• 4-pipe manual or automatic changeover
• Ventilation mode
• Manual or automatic 3-speed fan control
• Water valve control
• Fan speed can be selected to automatic or manual
• 3-speed control mode.
• In ventilation mode, fan only support manual speed control.

>>Features
• Super modern appearance design, suitable for office, hotel and residential building
• Horizontal and vertical model available for variant application
• Slim design, direct installation on 86 size box
• Stylish and elegant blue/green backlight with blue/green colour ring
• 2-pipe/4-pipe integrated into one unit with easy configuration
• Big LCD display with English and icons
• Easy to install and set-up
• Time on/off function
• Selectable room temperature or setpoint display
• Manual or automatic fan speed selection
• Remote temperature sensor
• Energy saving mode activation by button press or dry contact (key card)
• Cycle per Hour (CPH) function
• Adjustment of display room temperature
• Temperature unit either oC or oF
• User setting can be kept when power off
• Freezing protection function available
• Lock or unlock keys or part of keys in Installer Setup
• Heat and cool setpoint limitation for energy saving

>> Specifications

Power supply	110(+/-10%)VAC,220(+10%,-15%)VAC
Frequency	50/60HZ
Control algorithm	Pl, On/off output
Accuracy	+/- 1°C at 21 °C
Rating capacity	For 220V power supply :4( 2)A for fan load, 2(1)A for zone valve
Cycle times	100000
Setpoint range	10-32°C
Display range	0-37°C
Installation	Installed on 86x86mm junction box or US2X4 inch
Protection Class	P20
Environmental	Operation temperature-18~49°C
Conditions	Shipping temperature -35~65°C, Relative humidity 5-90%

Why Choose Us

Company Profile


Hotowell has been cooperating with many international companies and HVAC projects through Europe, American, Asia, Oceania.  Our product range contains:
Thermostats, Motorized Zone Valves, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc. covering industrial, commercial and residential temperature controls.
