Home Products Hotowell Products Smart 7 Day Programmable Thermostat Underfloor Heating Systems Touch Screen
Categories
New product

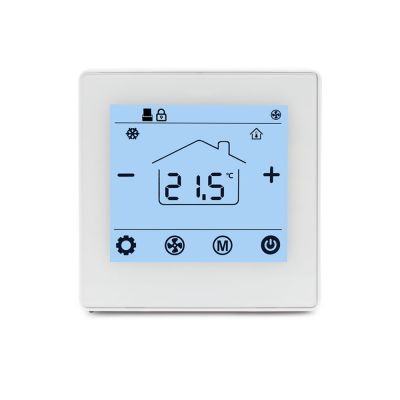

Smart 7 Day Programmable Thermostat Underfloor Heating Systems Touch Screen
Smart 7 Day Programmable Thermostat Underfloor Heating Systems Touch Screen Smart 7 Day Programmable Thermostat Underfloor Heating Systems Touch Screen Smart 7 Day Programmable Thermostat Underfloor Heating Systems Touch Screen Smart 7 Day Programmable Thermostat Underfloor Heating Systems Touch Screen Smart 7 Day Programmable Thermostat Underfloor Heating Systems Touch Screen

Smart 7 Day Programmable Thermostat Underfloor Heating Systems Touch Screen

Product ID : HTW-WF01
Product Tags :
Product Attributes :

HTW-WF01 series Tuya Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.

Product Description
Overview

Essential details
Warranty:
2 years
Floor Heating Valve:
Automatic Deflation Valve
After-sale Service:
Online technical support, Return and Replacement
Material:
Anti-flammable PC +ABS
Project Solution Capability:
total solution for projects
Application:
Hotel
Design Style:
Modern
Place of Origin:
Fujian, China
Brand Name:
Neutral
Model Number:
HTW-WF01
Type:
Floor Heating Parts
Floor Heating Part Type:
Floor Heating Thermostats
Power Supply::
95~240Vac, 50/60Hz
Power Consumption::
<1.5W
Temperture Accurancy::
±0.5°C or ±1℉
Timing Error::
<1%
Storage Temp.::
-5 ~ 45 °C
Installation Box::
EU or Standard Electric Box
Operating Buttons::
Capacitive Touch Buttons
Protection Class::
IP20
Housing Material::
PC +ABS ( Fireproof)
Supply Ability
Supply Ability
500000 Piece/Pieces per Month

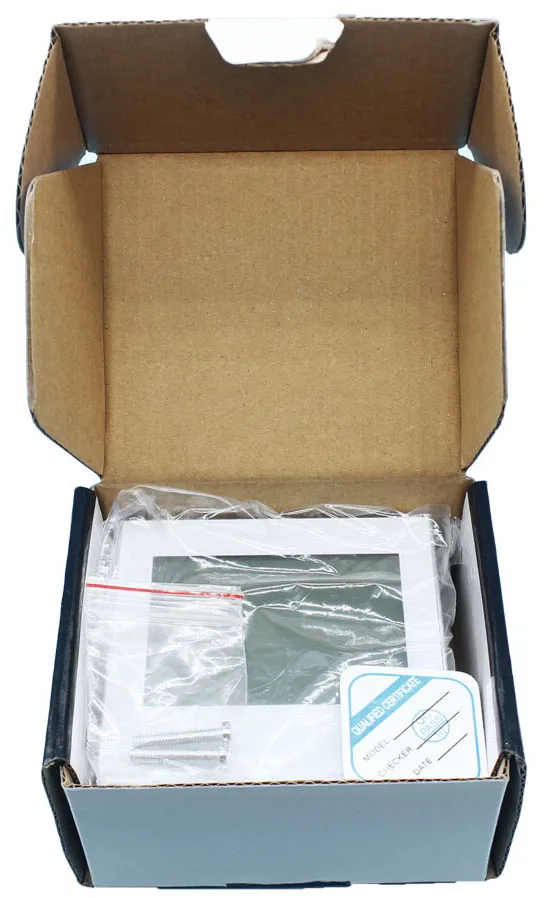

Packaging & delivery
Packaging Details
1pcs/box, 50pcs/carton
Port
Xiamen
Picture Example:
Lead time:
Quantity(pieces) 1 - 500 501 - 2000 >2000
Lead time (days) 14 25 To be negotiated

Product Description






Touch Screen Smart 7 Day Programmable Thermostat Underfloor Heating Systems



>> General
HTW-WF01 series Tuya Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.



>> Details



>> Ordering Guide

HTW-WF01- **


Code
Application
-3A
Water Heating, 3A, NC+NO+Com output terminals
-16A
Electric Underfloor Heating, 16A, L+N line voltage output terminals
-NV
Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-WF01-3A refers to application: Water Floor Heating, 3A, NC+NO+Com output terminals

>> Specifications

Power Supply
95~240Vac, 50/60Hz
Sensor
NTC3950, 10K

Current Load
Fan Relay 5A(-3A-inductive)
Temperature Accuracy
±0.5°C or ±1℉
Valve Relay 3A(1A -inductive)
Set-Point Range
5~35°C
