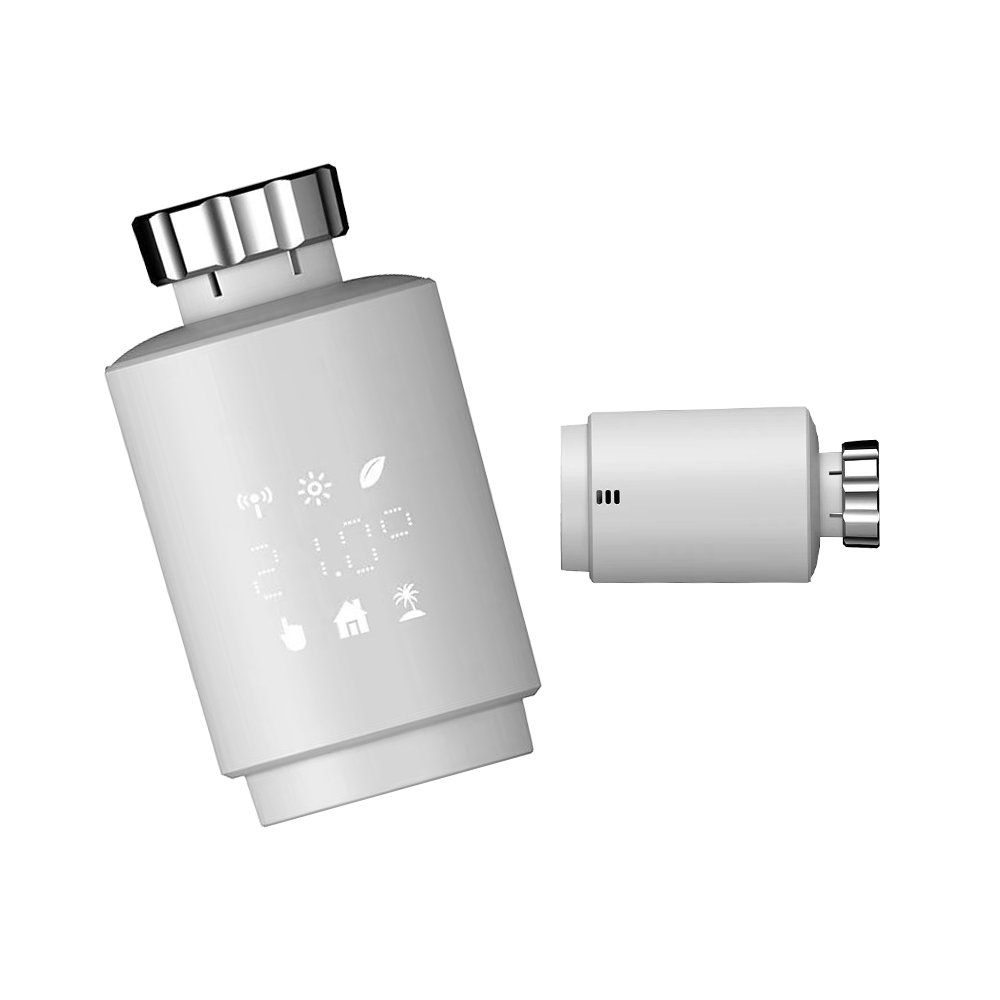

Room Temperature Heating TRV Thermal Actuator Thermostatic Radiator discharge Valve

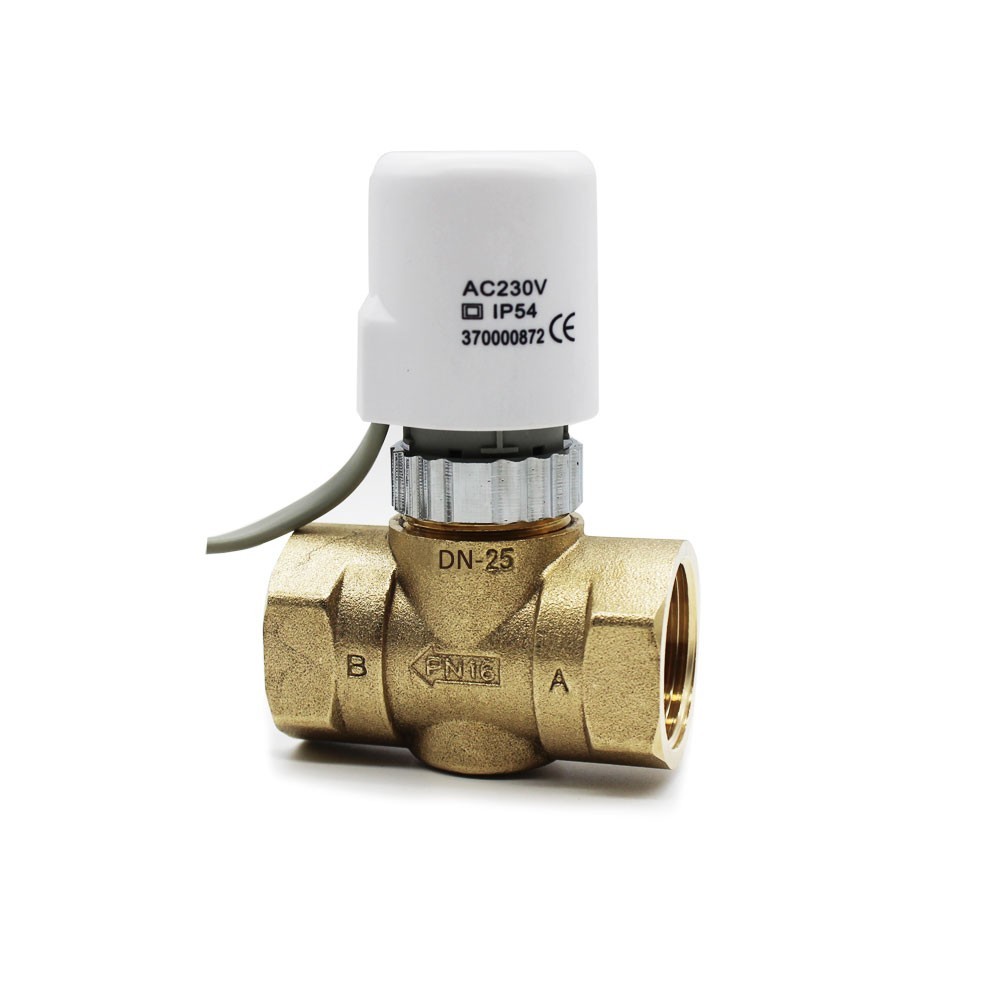

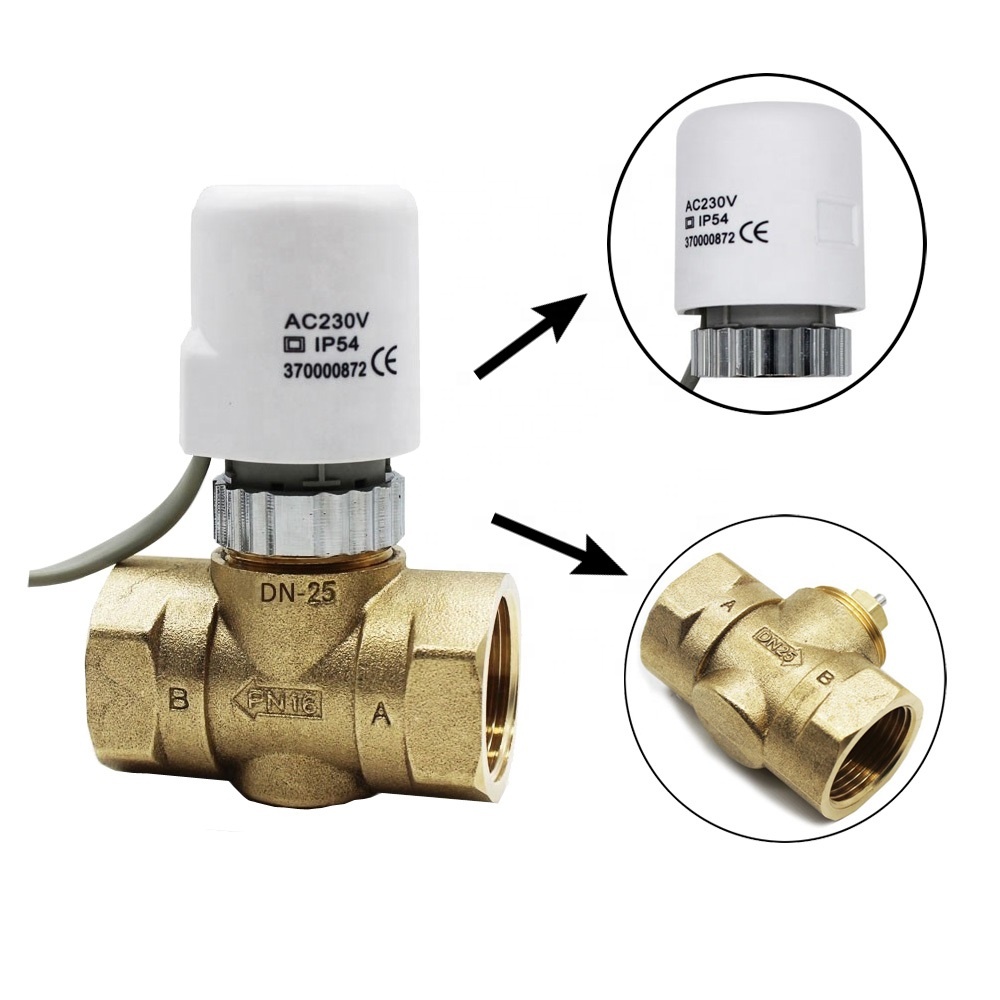

HTW-TV01 series electric thermostatic valve is used to open or close
the heating system pipeline to maintain a thermal room temperature.

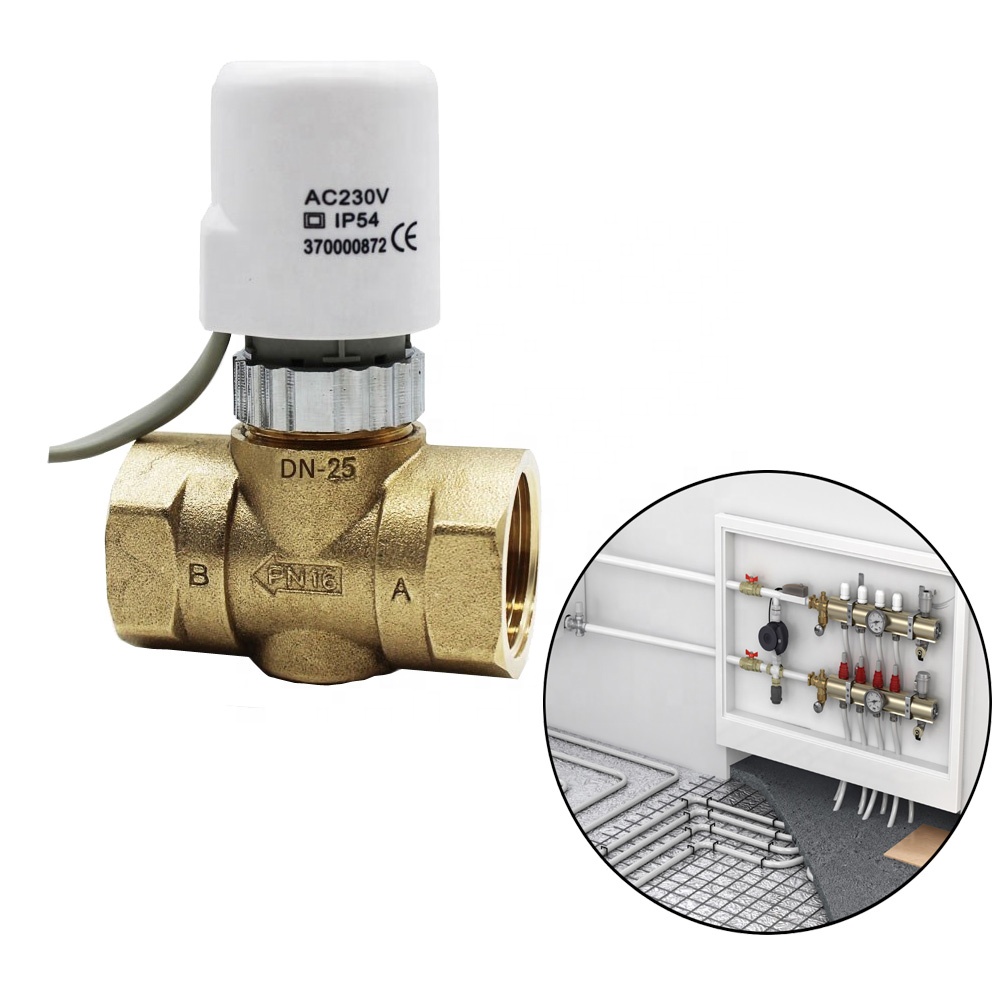

It is installed on the hot water pipe, and the valve is controlled to open
or close via the signal send from thermostat. The thermostat sends a
signal to open the thermal valve to heat the room via heat exchange
from the heating media, like heating water.

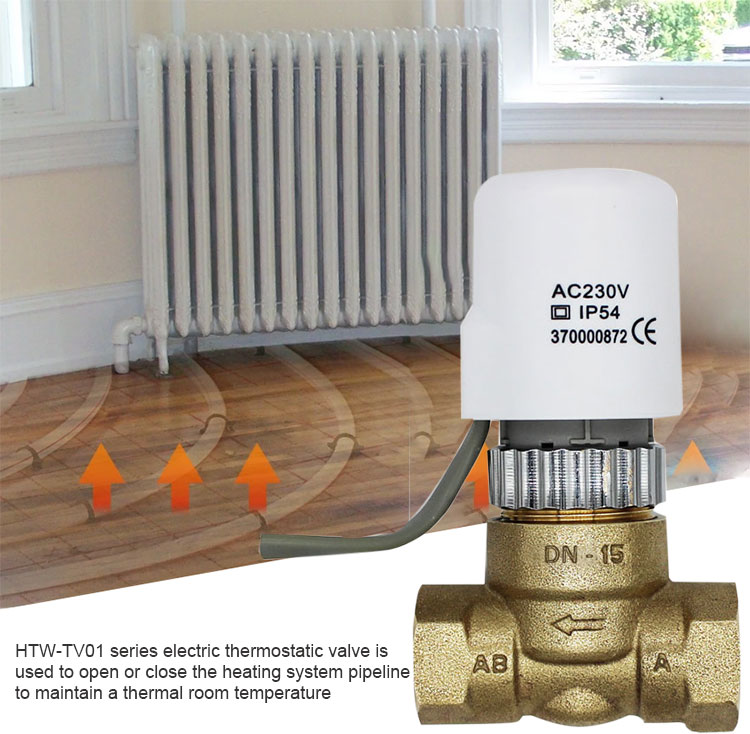

HTW-TV01 series electric thermostatic valve is used to open or close the heating system pipeline to maintain a thermal room temperature.
It is installed on the hot water pipe, and the valve is controlled to open or close via the signal send from thermostat. The thermostat sends a signal to open the thermal valve to heat the room via heat exchange from the heating media, like heating water.
3 sizes available for option: 2 way 1/2''(DN15)
2 way 3/4''(DN20)
2 way 1''(DN25)
>> Specification
Power supply voltage:24/110V/220V/230V, 50/60Hz Optional Power consumption:1W
Protection rating:IP54
Connection Screw:M30* 1. 5
Working Temp.:5~60℃
Stroke:3mm
Opening Time:3~5min(25℃)
Working Thrust:110N

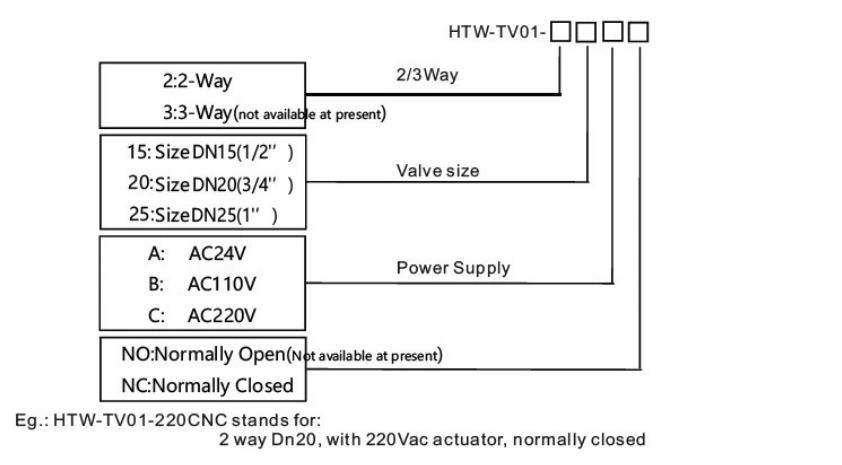

>> Ordering Guide
>> Models & Specifications of Valve Body

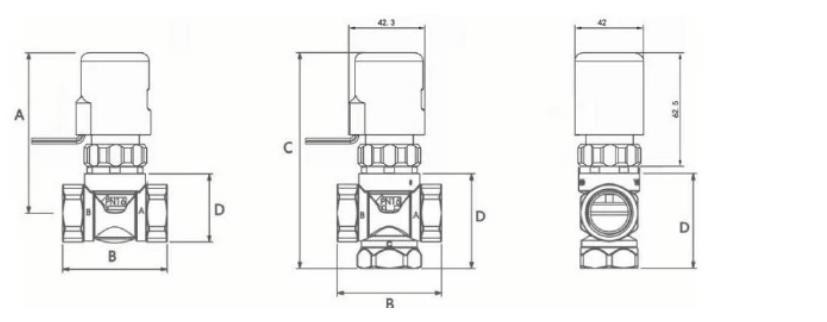

>> Dimensions
Hotowell is a high-tech company with rich experiences in product design and manufacturing, knowledge about global HVAC standards, and highly-trained team. Our objective is to produce and design user-friendly HVAC products on the highest technical level for improving people's experience in temperature/environment comfort.
Hotowell has been cooperating with many international companies and HVAC projects through Europe, American, Asia, Oceania. Our product range contains:
Thermostats, Motorized Zone Valves, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc. covering industrial, commercial and residential temperature controls.
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
