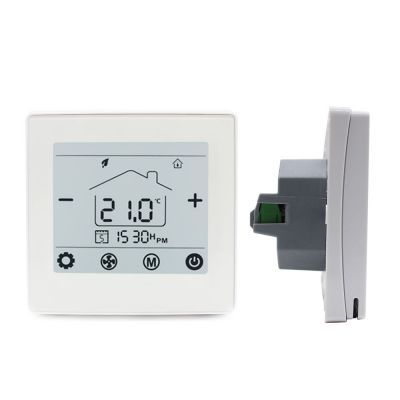

On/Off Valve Output 3 Speed Fan Control BACnet MSTP Communication Room Thermostat
This HTW-31-F10-2B/4B digital thermostat is designed to controls the fans, valves, dampers or electric heater in fan coil units and heating applications in industrial, commercial or residential environment.
On/Off Valve Output 3 Speed Fan Control BACnet MSTP Communication Room Thermostat
>> General
This HTW-31-F10-2B/4B digital thermostat is designed to controls the fans, valves, dampers or electric heater in fan coil units and heating applications in industrial, commercial or residential environment.
>> Specification
|
Power Supply |
230Vac, 50/60Hz |
Sensor |
NTC3950, 10K |
|
Current Load |
1.5A |
Temperature Accuracy |
±1ºC |
|
Set-Point Range |
5~35°C |
||
|
Storage Temp. |
0~ 50°C |
Display Temp. Range |
5 ~ 99°C |
|
Power Consumption |
< 1.5W |
Timing Error |
< 1% |
|
Housing Material |
PC +ABS ( Fireproof) |
Installation Box |
EU or Standard Electric Box |
|
Protection Class |
IP20 |
Operating Buttons |
LCD Touch Buttons |
