2/4 Pipe Heating and Cooling Output Programmable Weekly Fan Coil Room Thermostat
2/4 Pipe Heating and Cooling Output Programmable Weekly Fan Coil Room Thermostat 2/4 Pipe Heating and Cooling Output Programmable Weekly Fan Coil Room Thermostat 2/4 Pipe Heating and Cooling Output Programmable Weekly Fan Coil Room Thermostat 2/4 Pipe Heating and Cooling Output Programmable Weekly Fan Coil Room Thermostat 2/4 Pipe Heating and Cooling Output Programmable Weekly Fan Coil Room Thermostat

2/4 Pipe Heating and Cooling Output Programmable Weekly Fan Coil Room Thermostat

Product ID : T6861
Product Tags : Fan coil thermostat
Product Attributes :

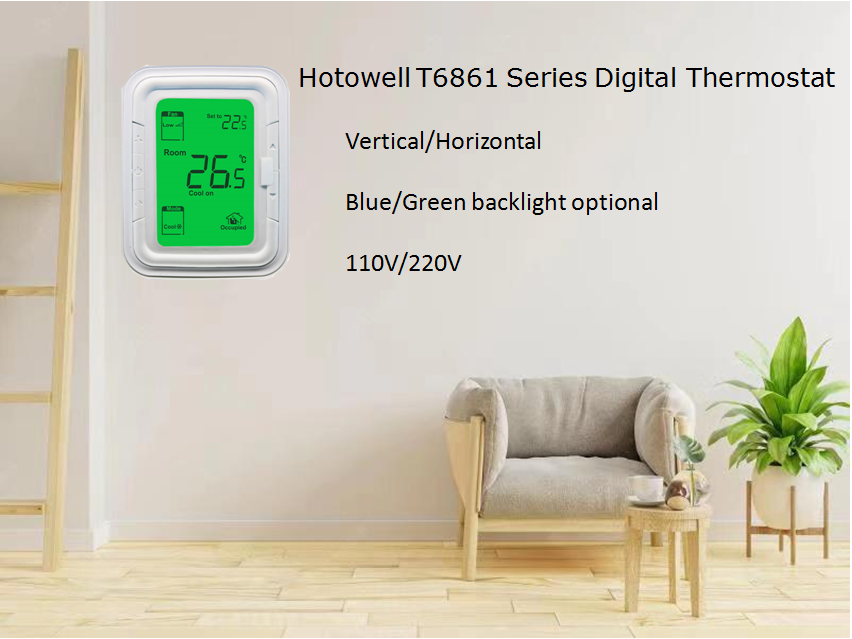

This digital thermostats are designed for application of 3-speed fan and valves in fan coil system. This model with total the same functions with Honeywell raw model T6861.

Include T6861H1WB, T6861H1WG, T6861H2WB, T6861H2WG, T6861V1WB, T6861V1WG, T6861V2WB, and T6861V2WG eight types Choice, could meet different requirements accordingly.

Product Description
Product Description







2/4 Pipe Heating and Cooling Output Programmable Weekly Fan Coil Room Thermostat

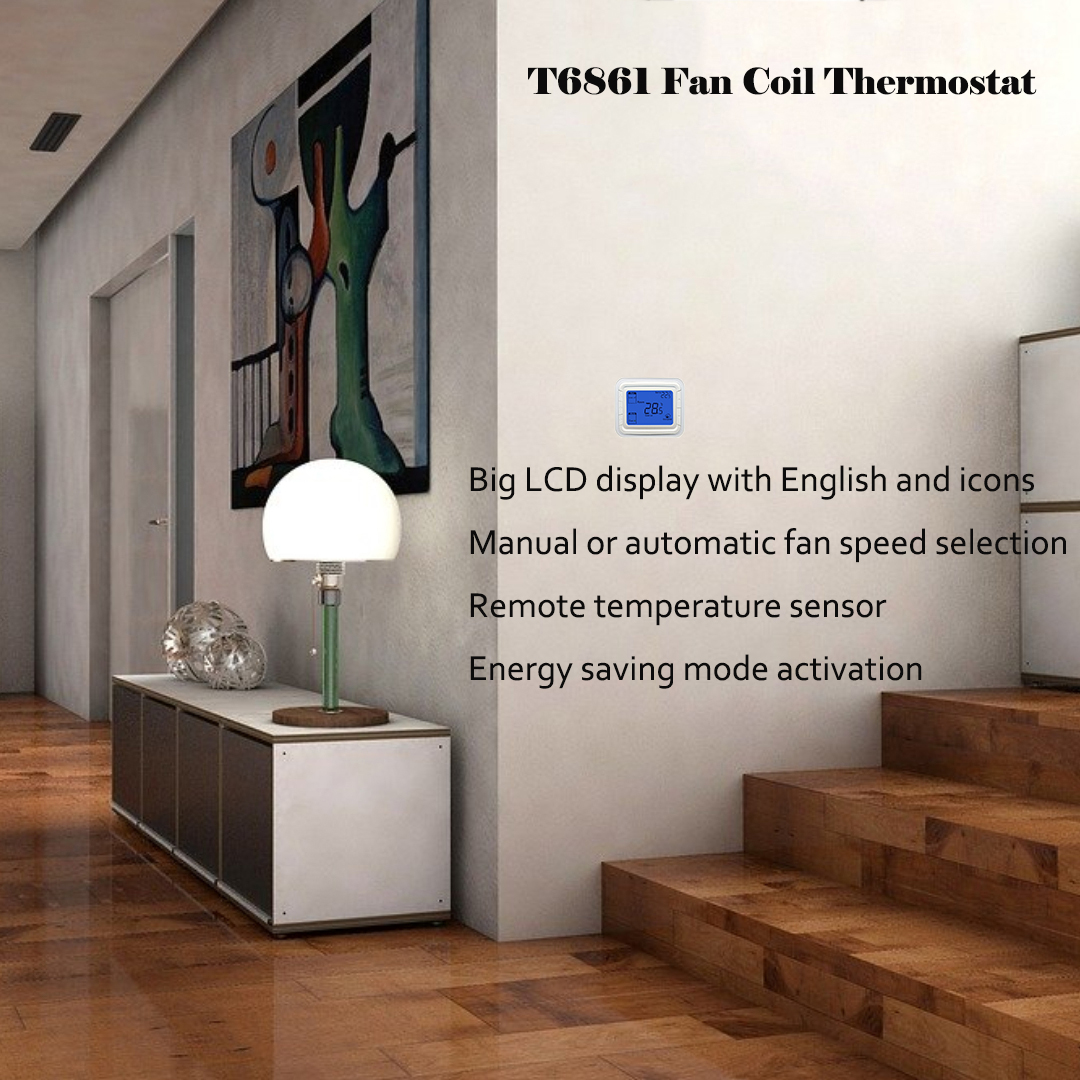

This digital thermostats are designed for application of 3-speed fan and valves in fan coil system. This model with total the same functions with Honeywell raw model T6861.
Include T6861H1WB, T6861H1WG, T6861H2WB, T6861H2WG, T6861V1WB, T6861V1WG, T6861V2WB, and T6861V2WG eight types Choice, could meet different requirements accordingly.





>>Features

>>Ordering Guide

Power supply
110(+/-10%)VAC,220(+10%,-15%)VAC
Frequency
50/60HZ
Control algorithm
Pl, On/off output
Accuracy
+/- 1°C at 21 °C
Rating capacity
For 220V power supply :4( 2)A for fan load, 2(1)A for zone valve
Cycle times
100000
Setpoint range
10-32°C
Display range
0-37°C
Installation

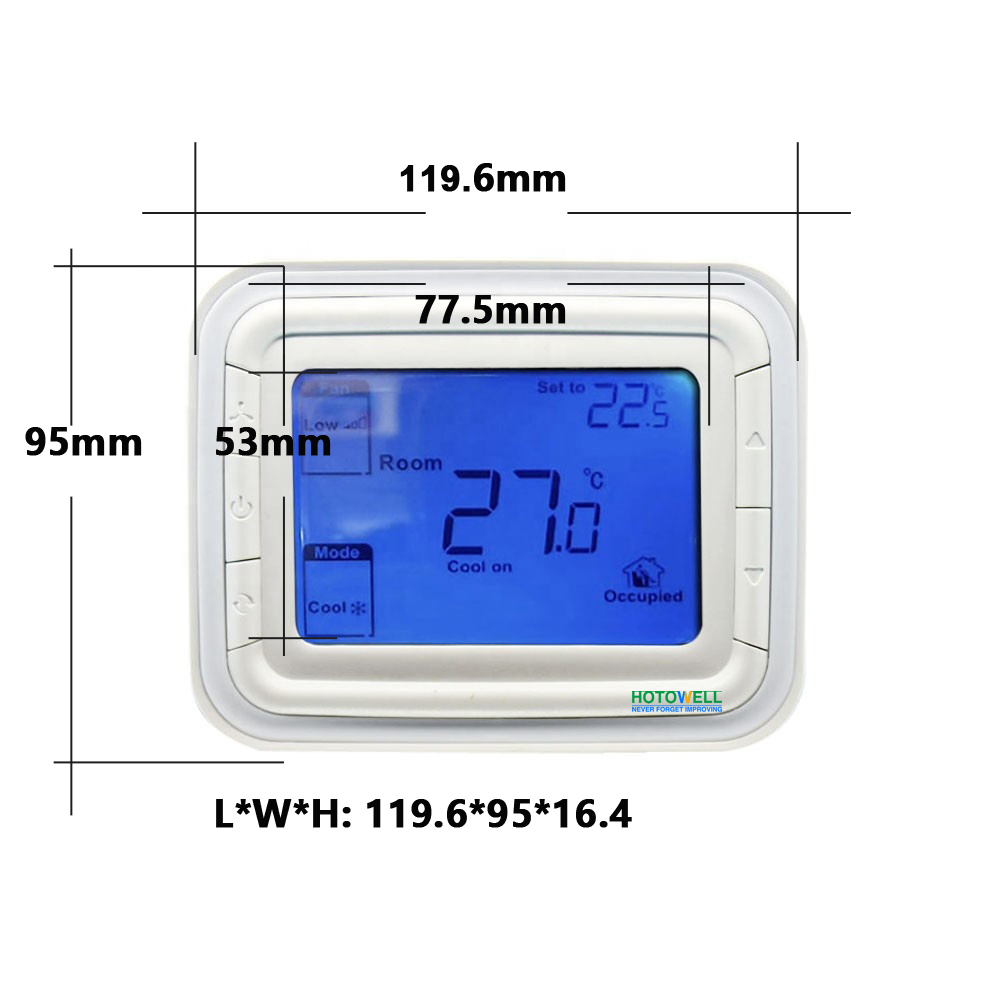

Installed on 86x86mm junction box or US2X4 inch
Protection Class
P20
Environmental
Operation temperature-18~49°C
Conditions
Shipping temperature -35~65°C, Relative humidity 5-90%
Packing & Shipping
Packing details
Unit Weight: 0.34KG/PC;
50 PCS/CTN;
Gross Weight: 17KG;
Paper box packing;
Box dimension: 65*34*26cm
Delivery time : Shipped in 15-20 days after payment
Shipping Method

We usually ship by

1.Sea shipping :25-30 days

2. Air shipping :5-7 days

3. Express delivery(DHL, UPS, FedEx, TNT etc.):4-7days
