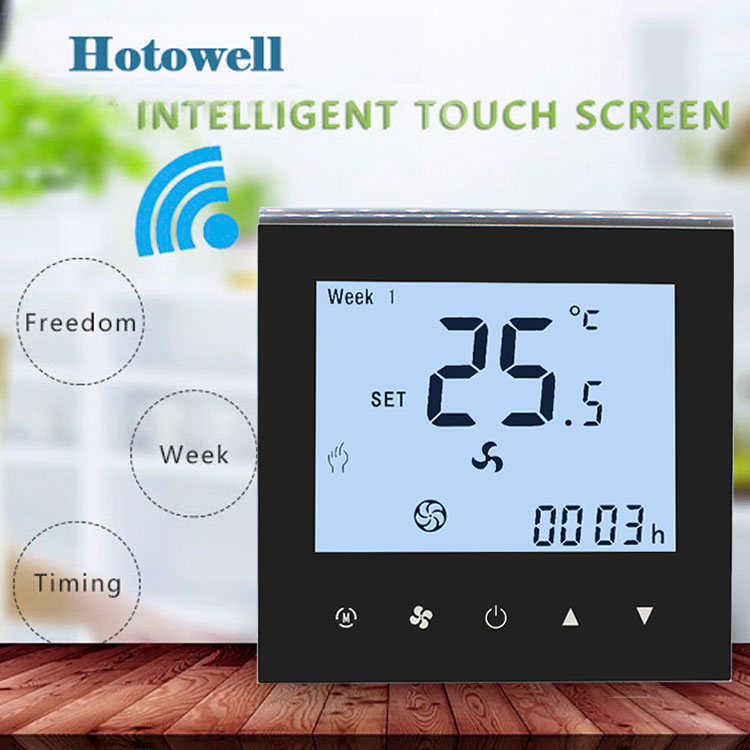

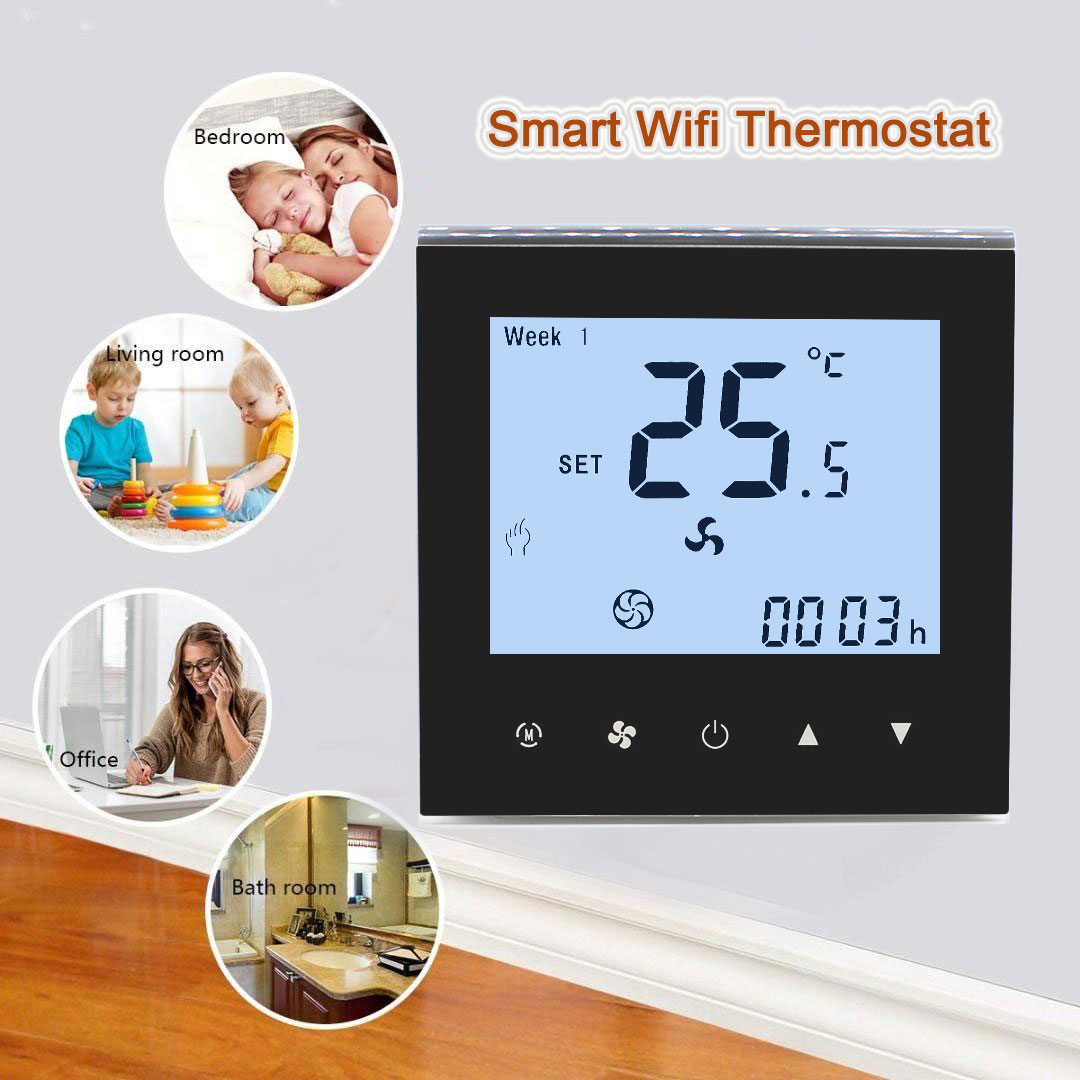

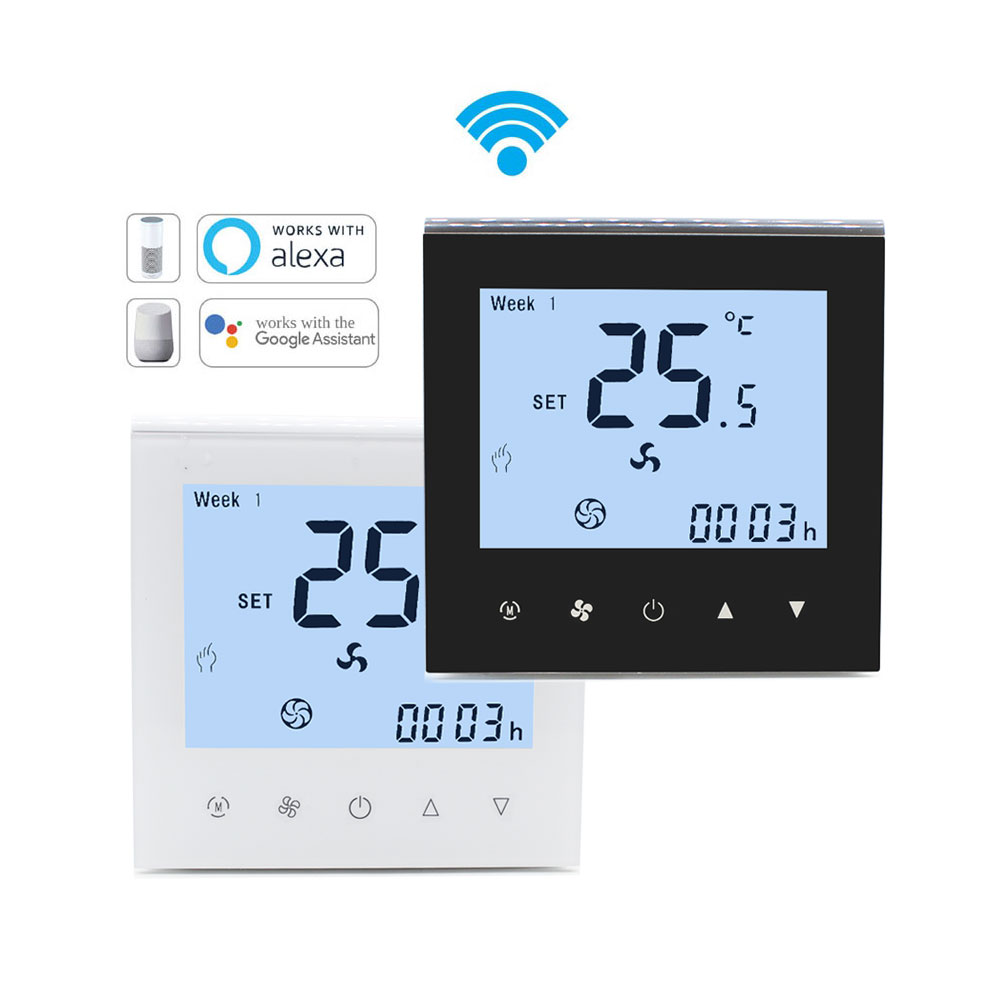

3 Fan Speed Classic Style Smart Life App Control Modbus Room Thermostat

Product ID : HTW-WF11-FC-MN

Product Tags :

Product Attributes :

HTW-WF11-FC-MS series Fan coil thermostat is designed with 3 fan speed and 1 cool/heat modulating valve output solution,it can be configured as cooling only or heating/cooling mode and widely used in these environment like Homes.Residentialbuildings,Schools,Hotels,Hospitals,Offices and etc.to main an ideal room temperature purpose.

Product Description

3 Fan Speed Classic Style Smart Life App Control Modbus Connetion Room Thermostat

>>General HTW-WF11-FC-MS series Fan coil thermostat is designed with 3 fan speed and 1 cool/heat modulating valve output solution,it can be
configured as cooling only or heating/cooling mode and widely used in these environment like Homes.Residential
buildings,Schools,Hotels,Hospitals,Offices and etc.to main an ideal room temperature purpose.

>>Features

* Snap-In Easy Installation
* Fit for EU & Standard Junction Electric Box
* Fashion Scense of Science and Technology
* Weekly Programmable
* Cooling only/Heating or Cooling mode

Specification

Power supply	95~240Vac,50/60Hz	Sensor	NT3950,10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5℃ or ±1F
Storage Temp.	-5~45℃	Display Temp.Range	5~99℃
Power Consumption	<1.5W	Timing Error	<1%
Housing Material	PC+ABS(Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 21.5 mm² or 12.5 mm²
Protection Class	IP20	Operating Bottons	Capacitive Touch Buttons
