Home Products Hotowell Products Cost-effective 3 Fan Speed 2 pipes/4 pipes Digital Thermostat Modbus/Bacnet Hotel Equipment
Categories
New product
Cost-effective 3 Fan Speed 2 pipes/4 pipes Digital Thermostat Modbus/Bacnet Hotel Equipment
Cost-effective 3 Fan Speed 2 pipes/4 pipes Digital Thermostat Modbus/Bacnet Hotel Equipment Cost-effective 3 Fan Speed 2 pipes/4 pipes Digital Thermostat Modbus/Bacnet Hotel Equipment Cost-effective 3 Fan Speed 2 pipes/4 pipes Digital Thermostat Modbus/Bacnet Hotel Equipment Cost-effective 3 Fan Speed 2 pipes/4 pipes Digital Thermostat Modbus/Bacnet Hotel Equipment Cost-effective 3 Fan Speed 2 pipes/4 pipes Digital Thermostat Modbus/Bacnet Hotel Equipment

Cost-effective 3 Fan Speed 2 pipes/4 pipes Digital Thermostat Modbus/Bacnet Hotel Equipment

Product ID : HTW-WF11-FC-MKB
Product Tags :
Product Attributes :

HTW-WF11-FC-KB series BACnet fan coil thermostat is designed to control 4 pipe Fan Coil Unit system, withoutputs of 3 fan speed and 1 cooling valve and 1 heating valve, with remote setback(keycard) input andBACnet communication. It is widely used in these environment like Homes, Residential buildings, Schools,Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

Product Description
Product Description



Cost-effective 3 Fan Speed 2 pipes/4 pipes Digital Thermostat Modbus/Bacnet Hotel Equipment



>>General
HTW-WF11-FC-KB series BACnet fan coil thermostat is designed to control 4 pipe Fan Coil Unit system, withoutputs of 3 fan speed and 1 cooling valve and 1 heating valve, with remote setback(keycard) input andBACnet communication. It is widely used in these environment like Homes, Residential buildings, Schools,Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

>>Features

* Snap-In Easy Installation
* Fit for EU & Standard Junction Electric Box
* Remote setback(keycard)
* BACnet Communication
* Fashion Sense of Science and Technology
Specification
Power supply
95~240Vac,50/60Hz
Sensor
NT3950,10K
Current Load
Fan Relay 5A(3A-inductive)
Temperature Accuracy
±0.5℃ or ±1F
Storage Temp.
-5~45℃
Display Temp.Range
5~99℃
Power  Consumption
<1.5W
Timing Error
<1%
Housing Material
PC+ABS(Fireproof)
Installation Box
EU or Standard Electric Box
Wires on Terminals
Wire 2*1.5 * mm² or 1*2.5  * mm²
Protection Class
IP20
Operating Bottons
Capacitive Touch Buttons

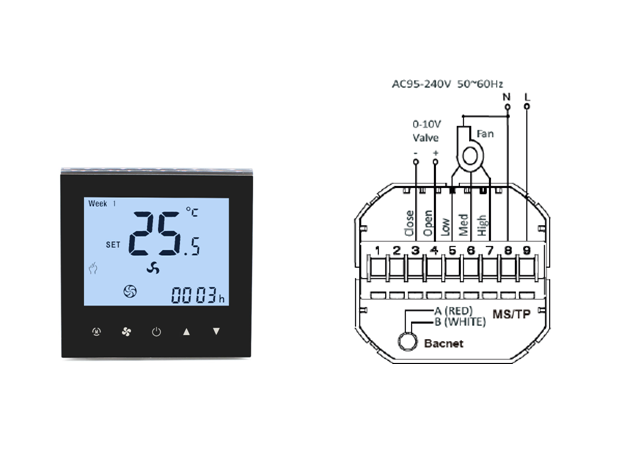

Typical Wiring
Installation
Packing & Delivery
Company Profile

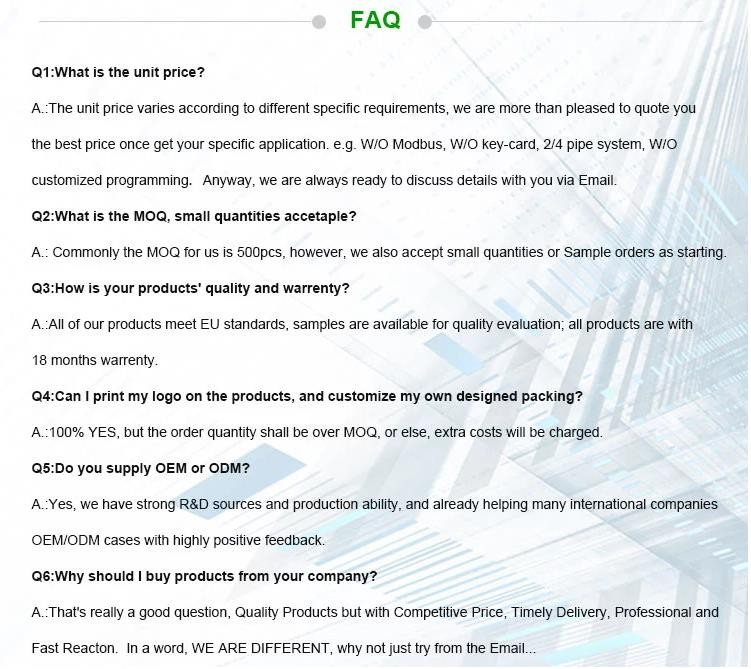

FAQ
Product Description



Cost-effective 3 Fan Speed 2 pipes/4 pipes Digital Thermostat Modbus/Bacnet Hotel Equipment



>>General
HTW-WF11-FC-KB series BACnet fan coil thermostat is designed to control 4 pipe Fan Coil Unit system, withoutputs of 3 fan speed and 1 cooling valve and 1 heating valve, with remote setback(keycard) input andBACnet communication. It is widely used in these environment like Homes, Residential buildings, Schools,Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

>>Features

* Snap-In Easy Installation
* Fit for EU & Standard Junction Electric Box
* Remote setback(keycard)
* BACnet Communication
* Fashion Sense of Science and Technology
Specification
Power supply
95~240Vac,50/60Hz
Sensor
NT3950,10K
Current Load
Fan Relay 5A(3A-inductive)
Temperature Accuracy
±0.5℃ or ±1F
Storage Temp.
-5~45℃
Display Temp.Range
5~99℃
Power  Consumption
<1.5W
Timing Error
<1%
<div class="magic-14" style="margin: 0px
